Intermediate Body Exhaust Heat Shield Replacement

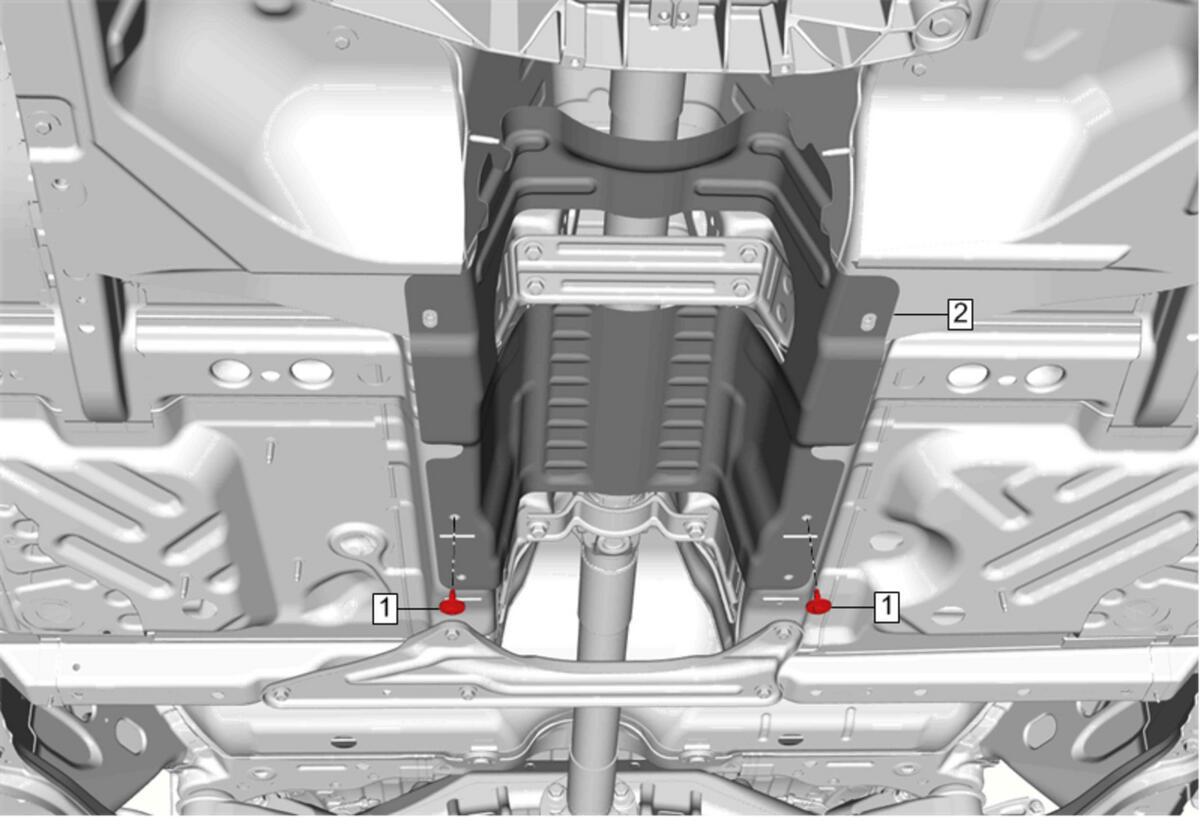

GM4181684Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

Refer to Exhaust Service Warning .

WARNING:

Refer to Eye Protection Warning .

Preliminary Procedures

  1. Underbody Front Air Deflector Replacement - Right Side
  2. Underbody Front Air Deflector Replacement - Left Side
  3. Exhaust Muffler Replacement (LGX, Coupe) , or Exhaust Muffler Replacement (LGX, Convertible) , or Exhaust Muffler Replacement (LT1, LT4, Coupe) , or Exhaust Muffler Replacement (LT1, LT4, Convertible) , or Exhaust Muffler Replacement (LTG, Coupe) , or Exhaust Muffler Replacement (LTG, Convertible)
1 Intermediate Body Exhaust Heat Shield Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
9 N.m (80 lb in)
2 Intermediate Body Exhaust Heat Shield
