Installation Procedure

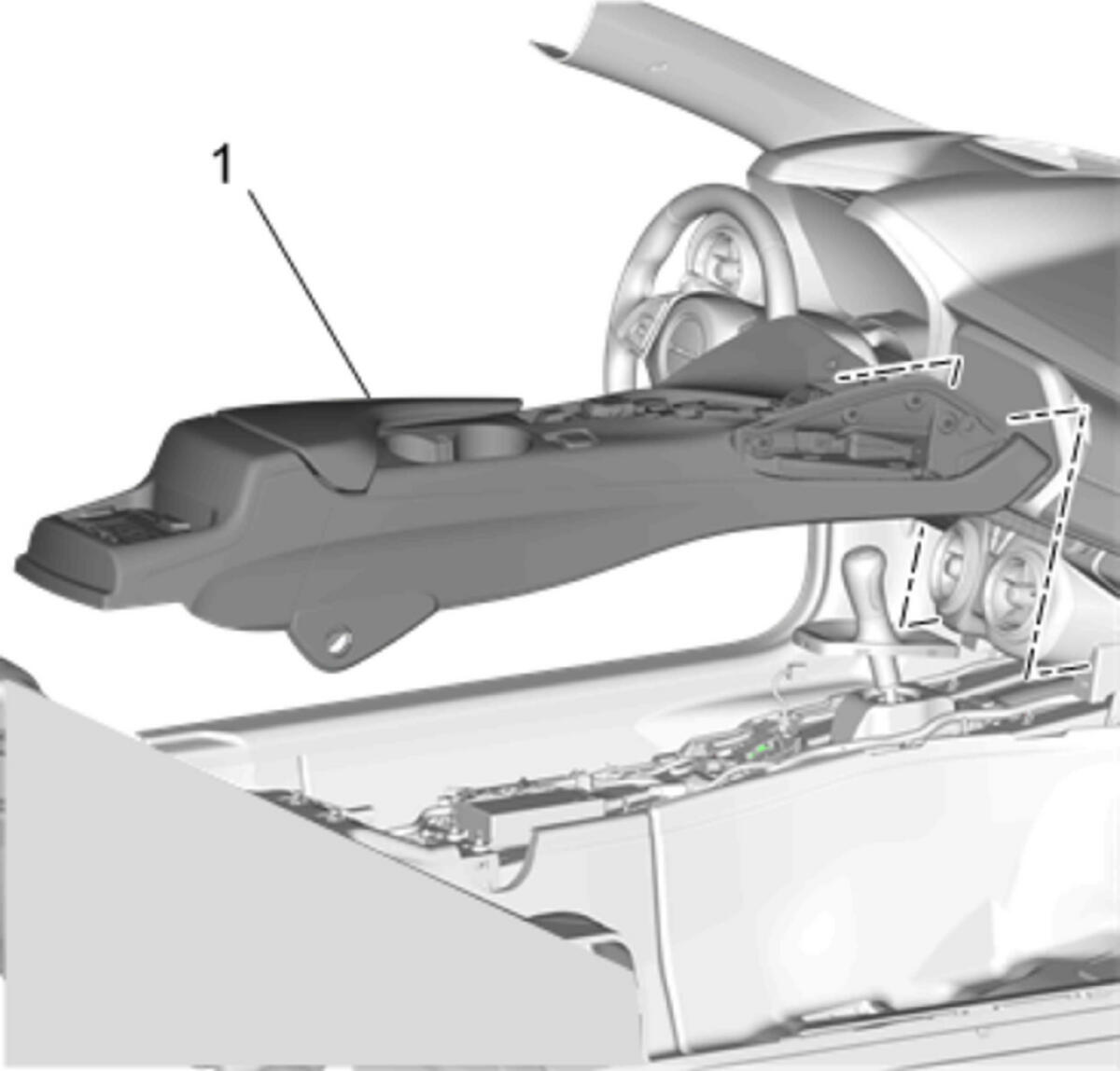

With the aid of an assistant, install the console to the vehicle. (1)
- Connect all electrical connectors.
- CAUTION:
Refer to Fastener Caution .

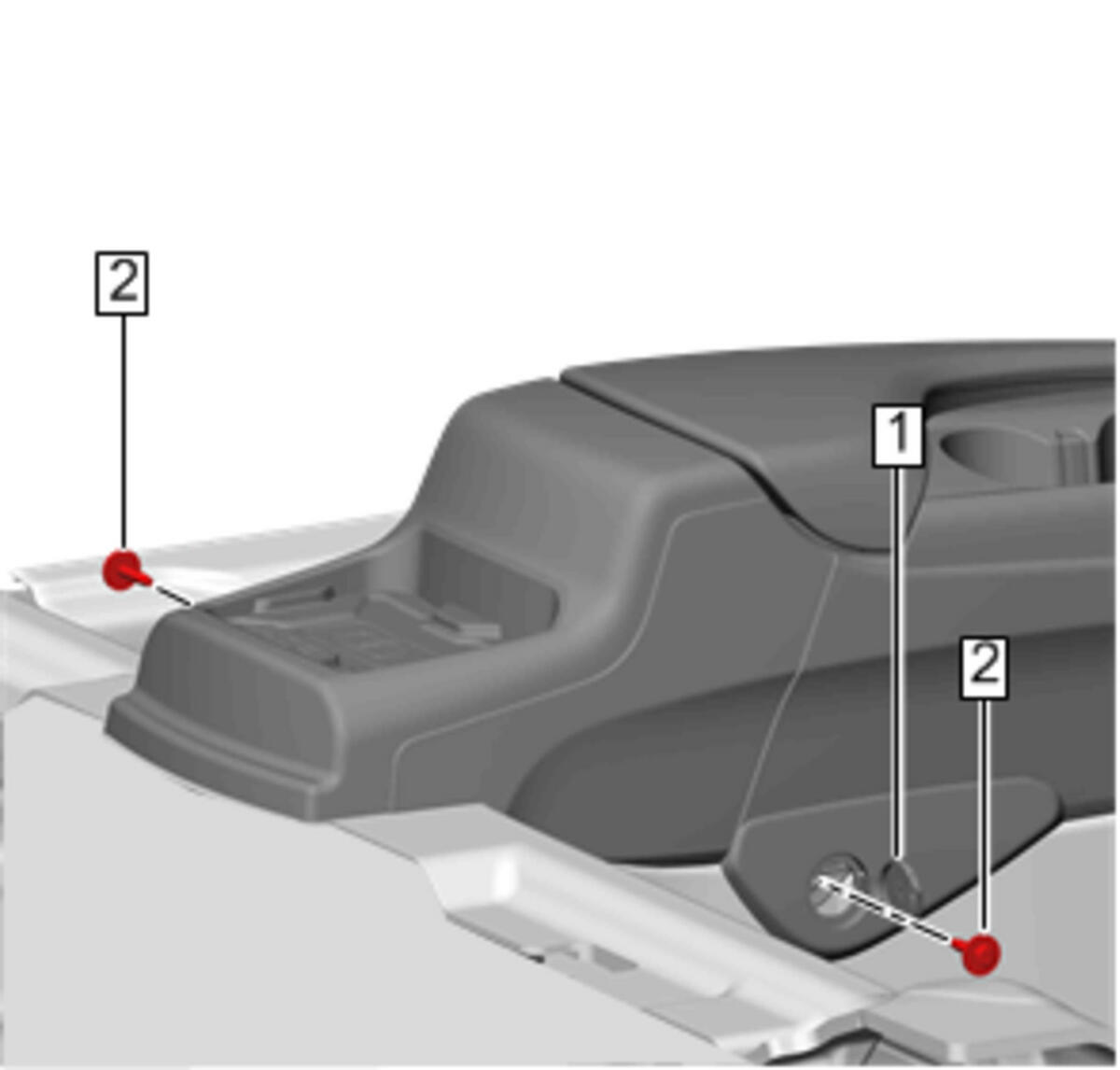

Front Floor Console Bracket Bolt (2) - Install and tighten [2x] 7 N.m (62 lb in)
- Front Floor Console Bolt Access Hole Cover (1) - Close

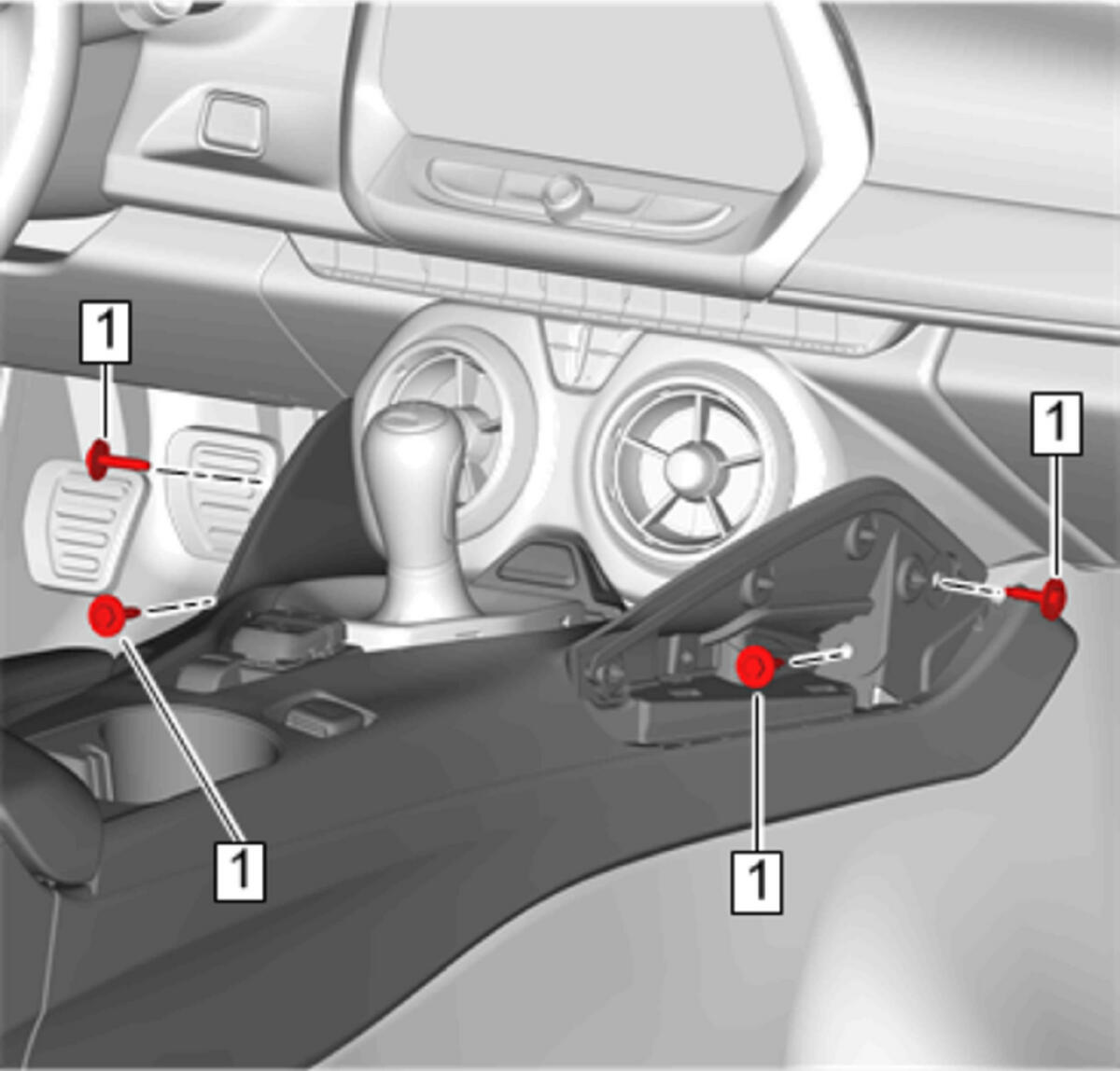

Front Floor Console Bolt (1) - Install and tighten [4x] 7 N.m (62 lb in)
- Front Floor Console Trim Plate - Install - Front Floor Console Trim Plate Replacement (Automatic) , or Front Floor Console Trim Plate Replacement (Manual)
- Front Floor Console Extension Panel - Left Side - Install - Front Floor Console Extension Panel Replacement - Left Side
- Front Floor Console Extension Panel - Right Side - Install - Front Floor Console Extension Panel Replacement - Right Side
- Rear Seat Cushion - Install - Rear Seat Cushion Removal and Installation
