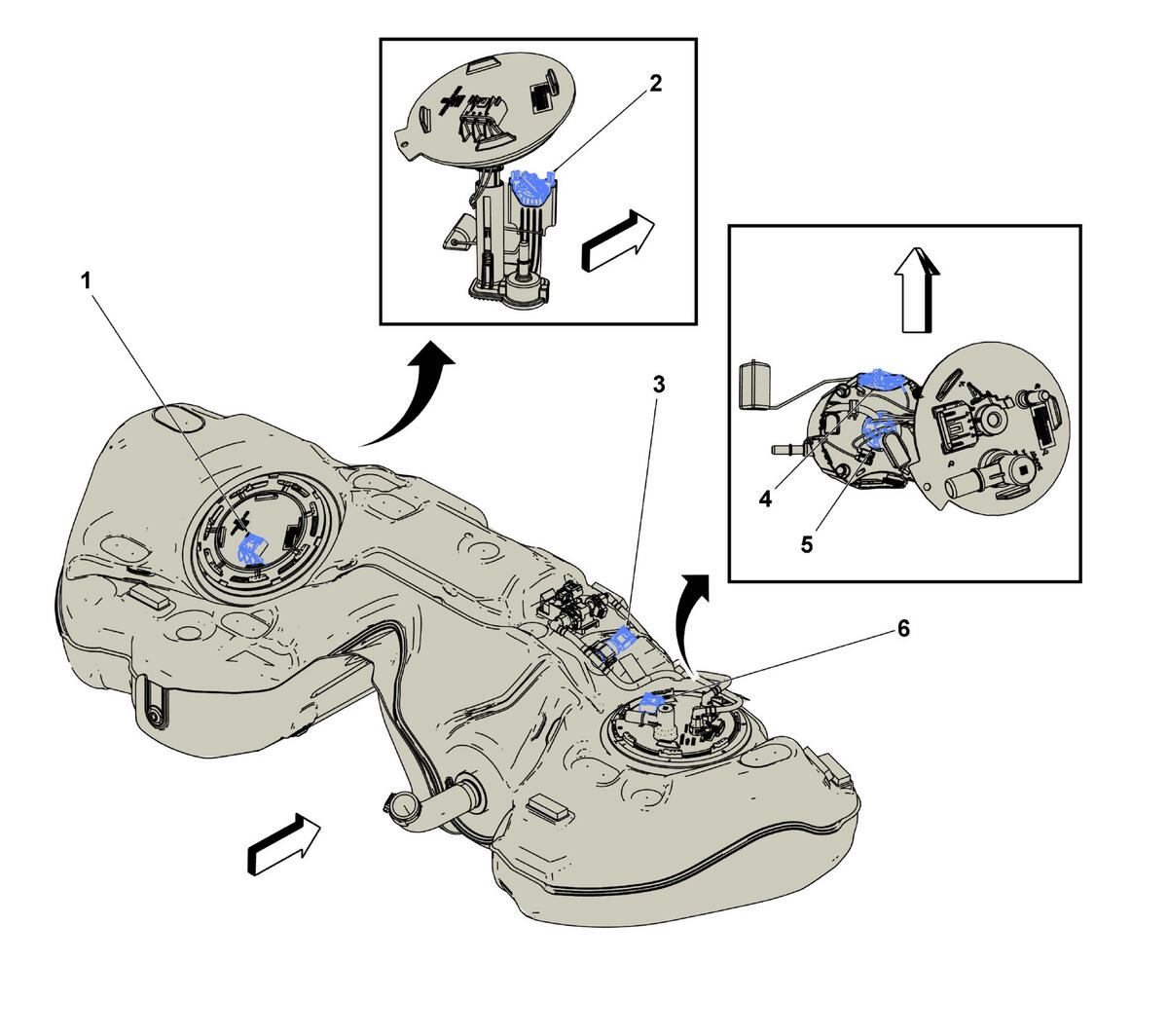

Fuel Tank Components
Fuel Tank Components
| Component Name | Callout |
|---|---|
| B187 Fuel Level Sensor Assembly B187 Fuel Level Sensor Assembly | 1 |
| B46B Fuel Level Sensor - Secondary | 2 |
| B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor | 3 |
| B46A Fuel Level Sensor - Primary | 4 |
| G12 Fuel Pump | 5 |
| A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly | 6 |
