Installation Procedure

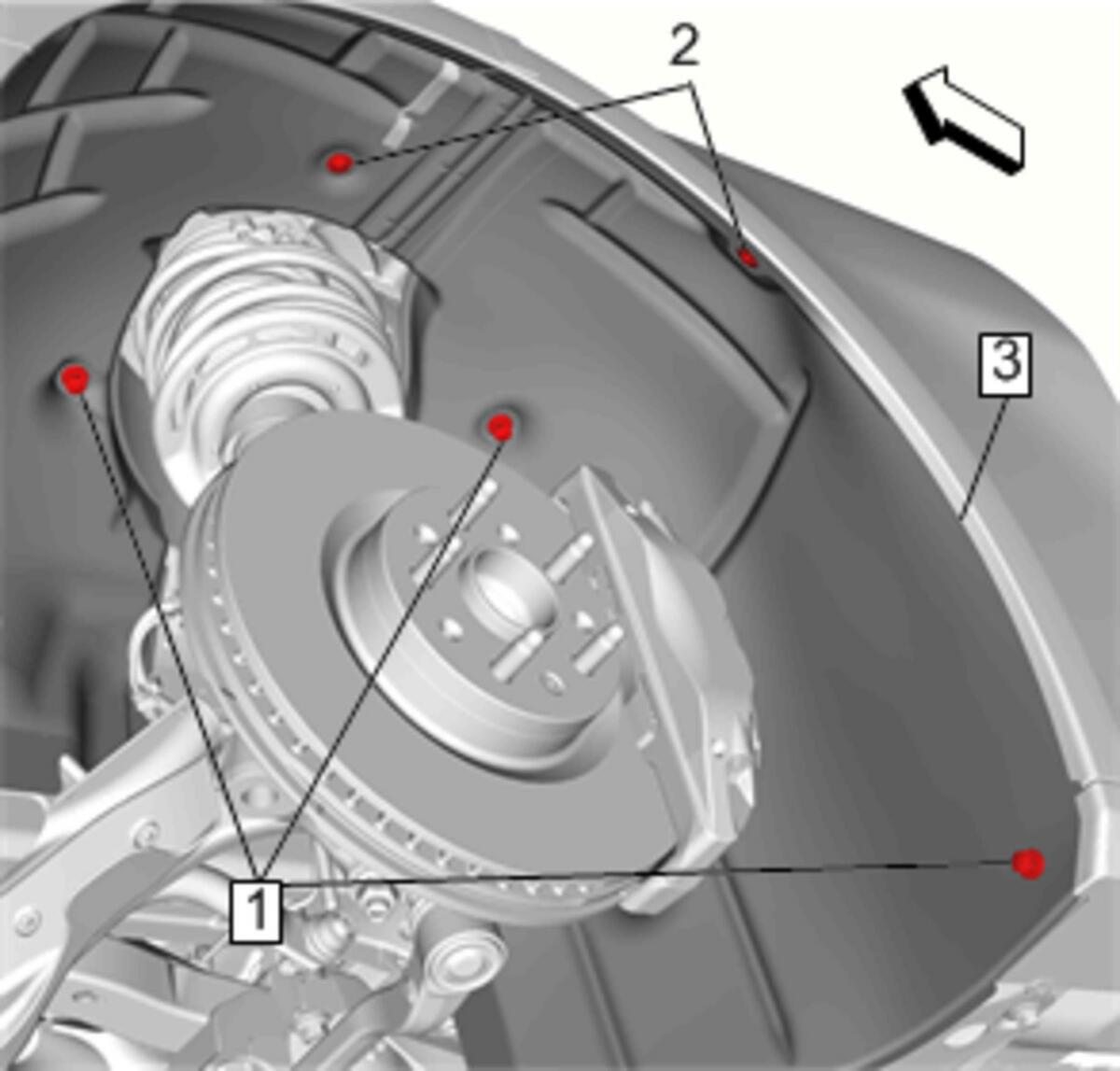

  1. GM4182300Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner (3) - Install

  2. Front Wheelhouse Liner Retainer (2) - Install [3x]
    3. CAUTION:

    Refer to Fastener Caution

  3. Front Wheelhouse Liner Screw (2) Install and tighten [2x] 2.5 N.m (22 lb in)

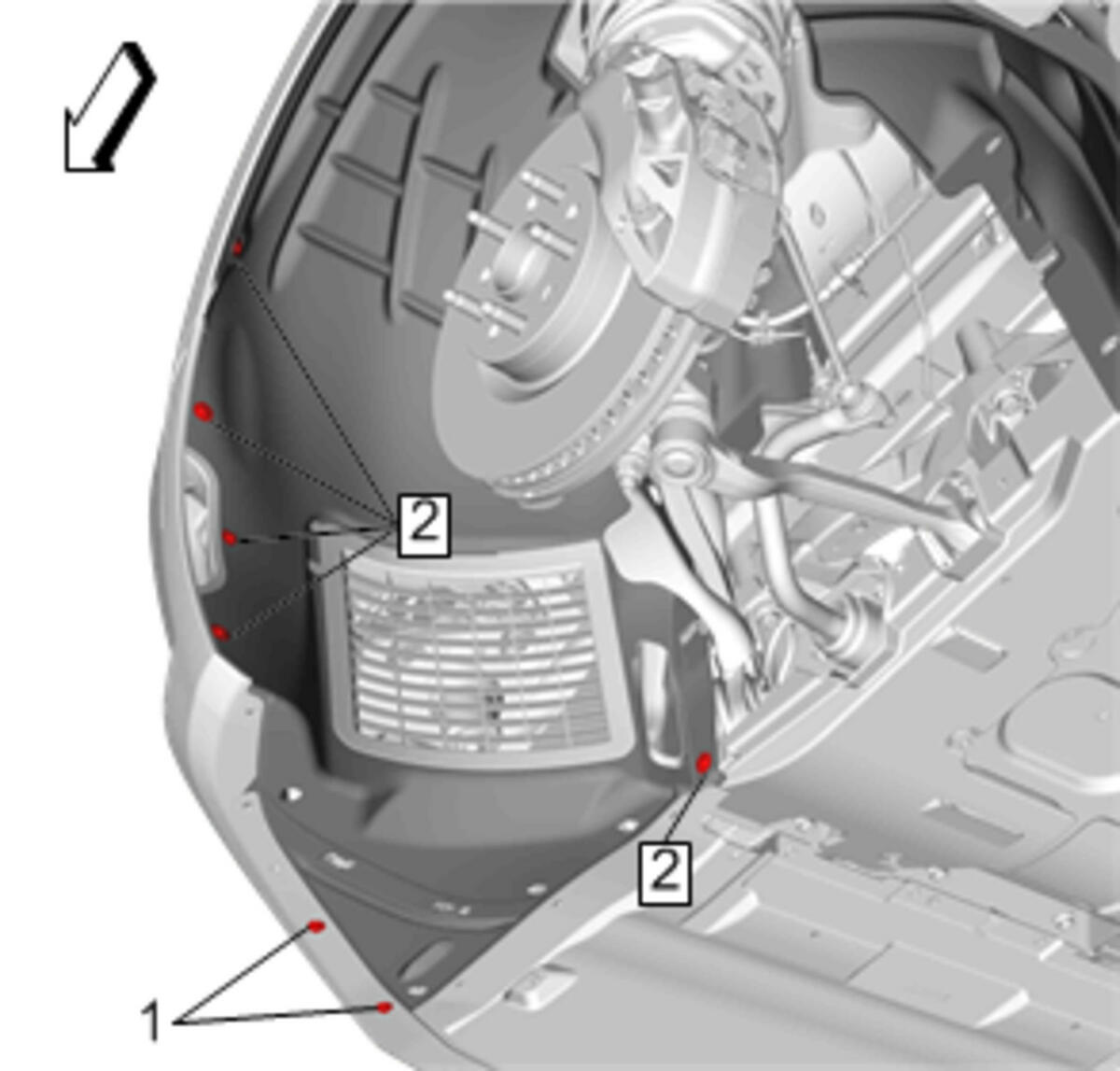

  4. GM4182297Courtesy of GENERAL MOTORS COMPANY

    Front Wheelhouse Liner Screw (2) - Install and tighten [5x] 2.5 N.m (22 lb in)

  5. Front Bumper Fascia Bolt (1) - Install and tighten [2x] 5 N.m (44 lb in)
  6. Front Tire Front Air Deflector Replacement (LGX, LTG)  - Install
  7. Front Wheelhouse Splash Shield Replacement  - Install
