Front End Spoiler Replacement

Courtesy of GENERAL MOTORS COMPANY

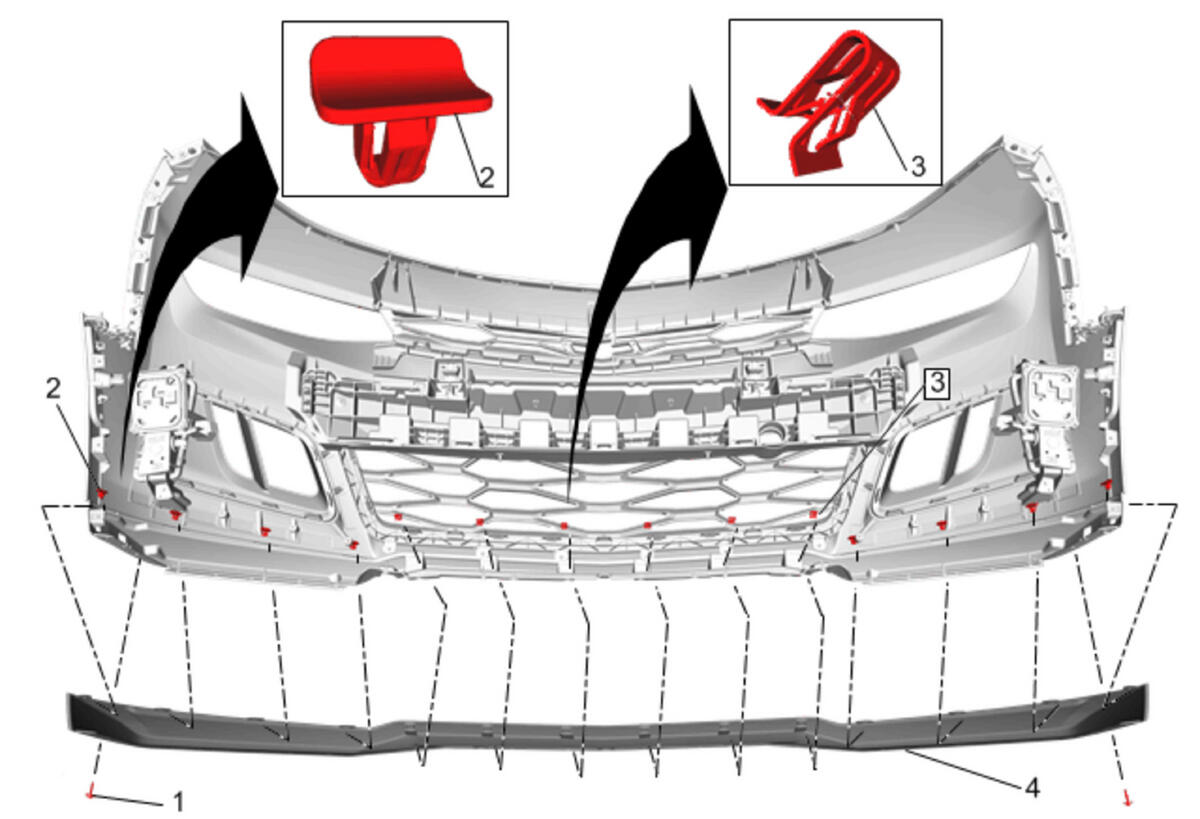

Callout	Component Name
Preliminary Procedures Front Bumper Fascia Replacement (Base, Uplevel) , or Front Bumper Fascia Replacement (ZL1) , or Front Bumper Fascia Replacement (SS) Reposition the wiring harness.
1	Front End Spoiler Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front End Spoiler Clip [8x]
3	Front End Spoiler Retainer [6x]
4	Front End Spoiler
