Front Side Door Lock Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

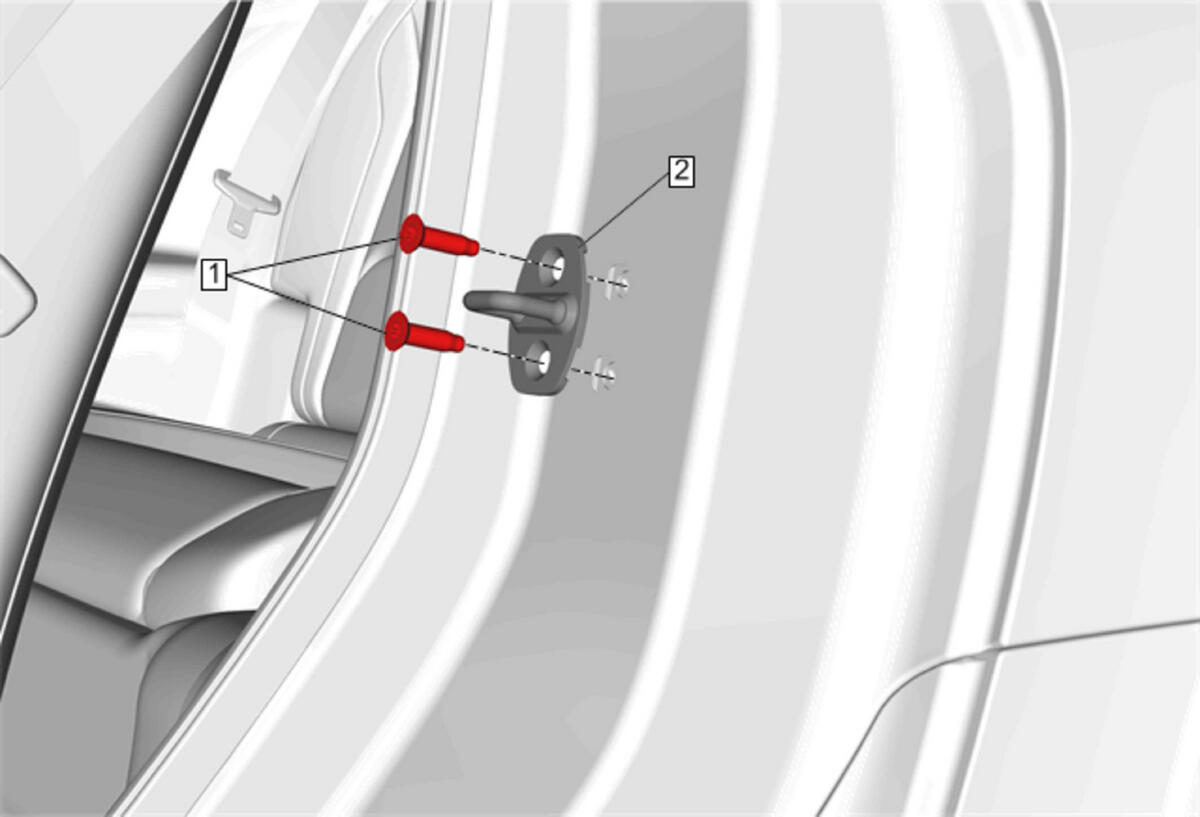

Callout	Component Name
1	Front Side Door Latch Striker Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  25 N.m (18 lb ft)
2	Front Side Door Lock Striker Procedure  Front Side Door Lock Striker Adjustment
