Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Install the cover (1) to the lock cylinder insulator (2).

Courtesy of GENERAL MOTORS COMPANY

Pull the door handle (1) out to the open position.

Courtesy of GENERAL MOTORS COMPANY

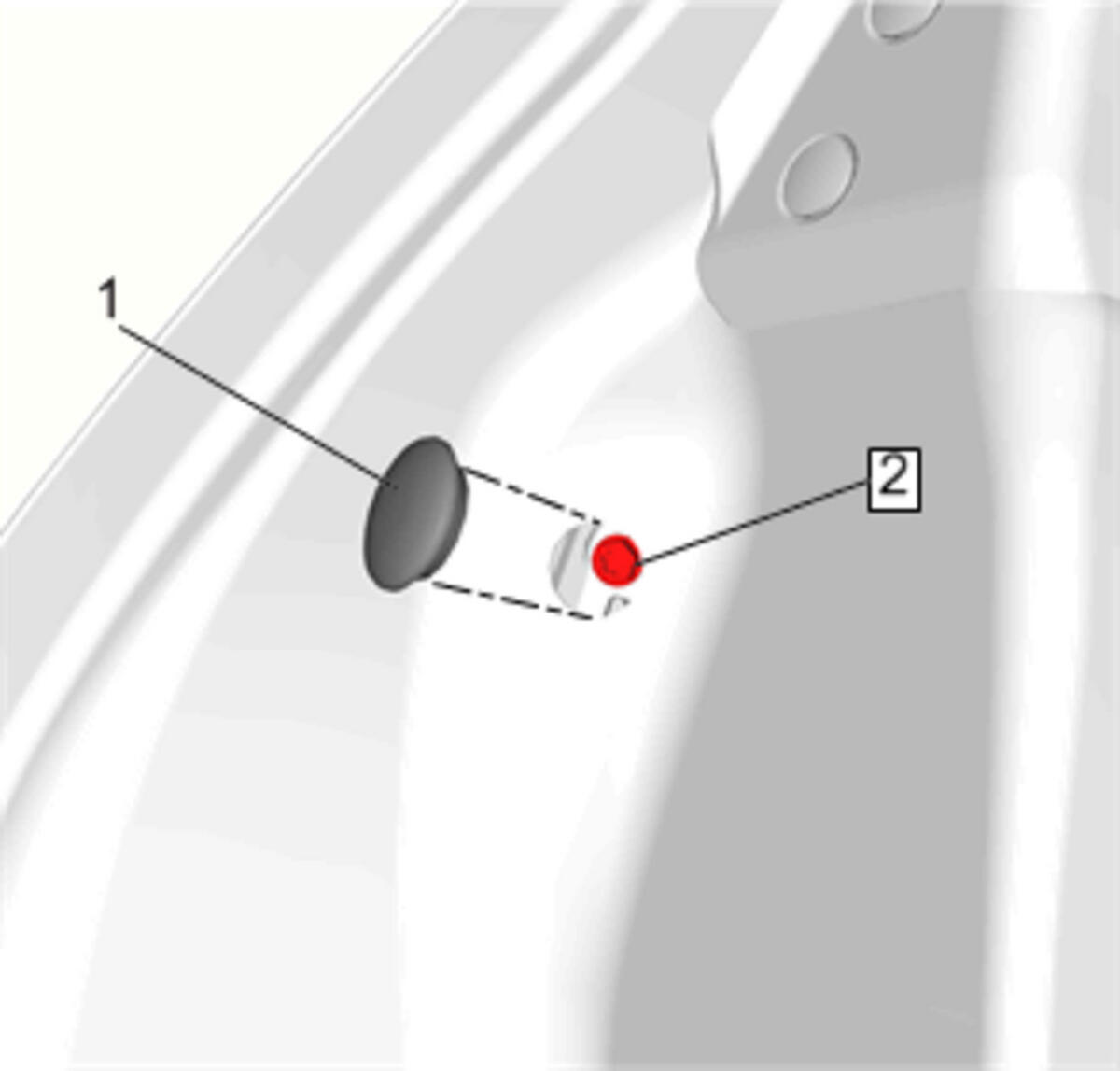

Front Side Door Lock Cylinder Opening Cover (1) - Install

Courtesy of GENERAL MOTORS COMPANY

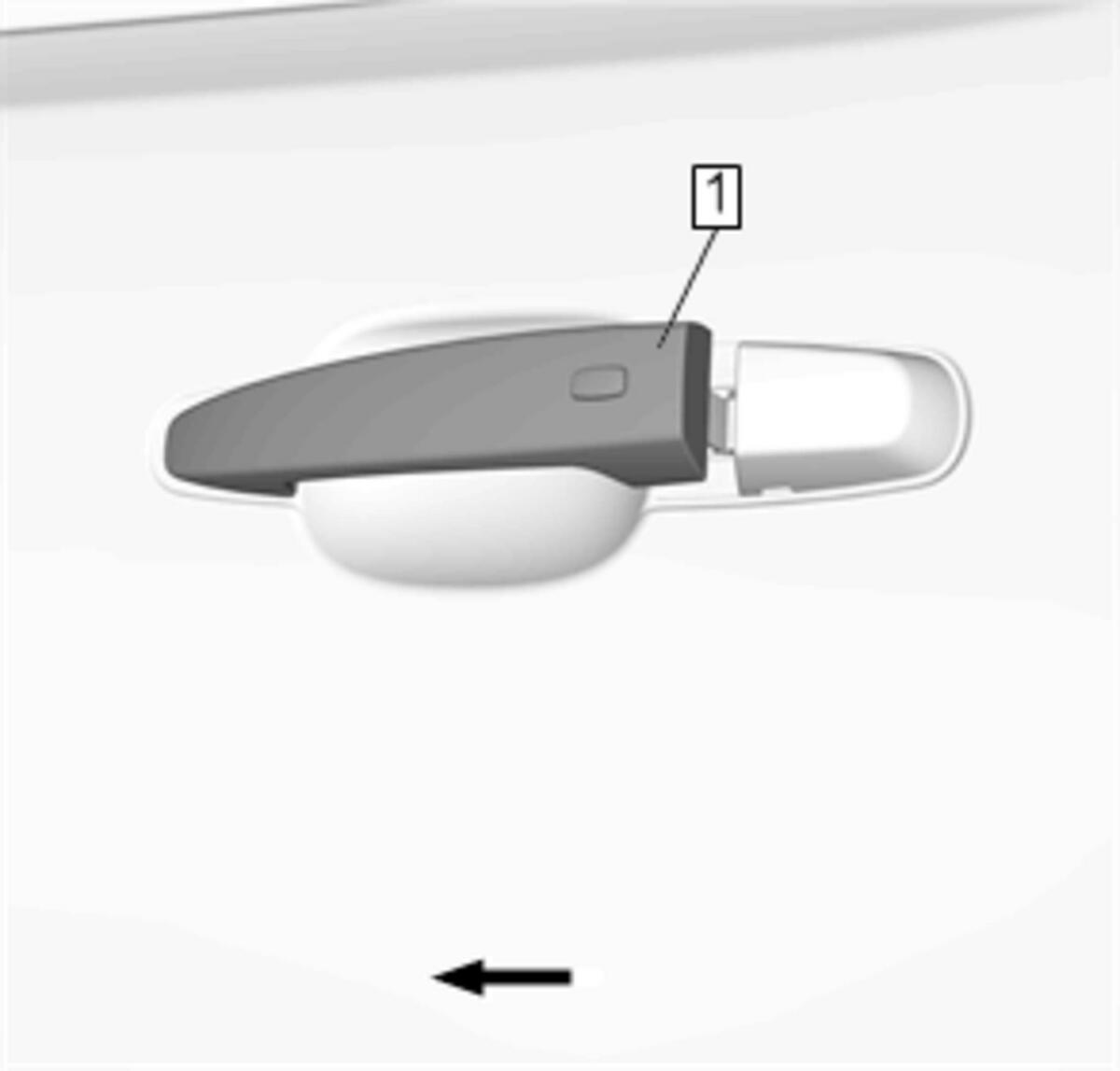

Place the Front Side Door Outside Handle (1) in the closed position.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Lock Cylinder Screw (2) - Tighten 4.7 N.m (42 lb in)
