Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Trim (1) - Remove - Front Side Door Trim Replacement
Courtesy of GENERAL MOTORS COMPANY

Disconnect the electrical connectors (1) from the front side door inside handle (2).
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not drill too deeply or the hole in the substrate will become too large. Drill only enough to release the handle assembly.

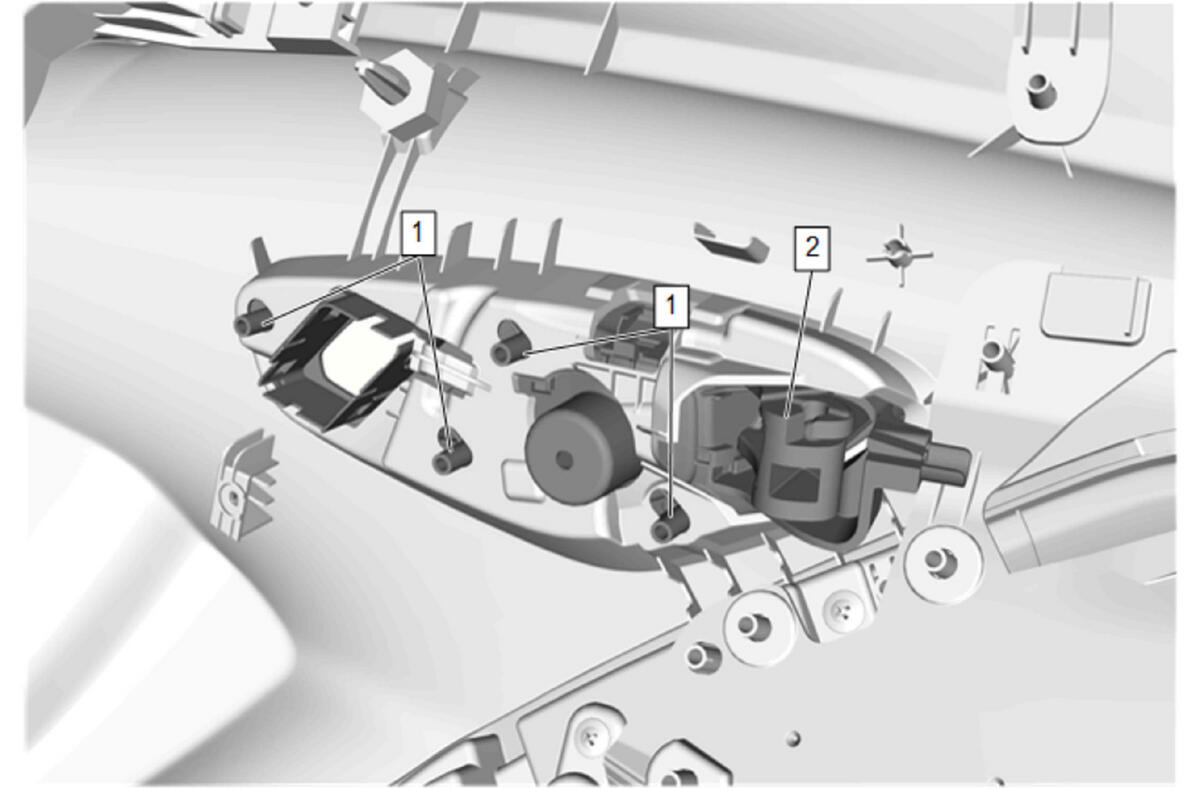

Drill the 4 heat stakes (1) with an appropriate size drill bit.
Using suitable hand tool, remove the remaining heat stake material.
Front Side Door Inside Handle (2) - Remove
