Installation Procedure

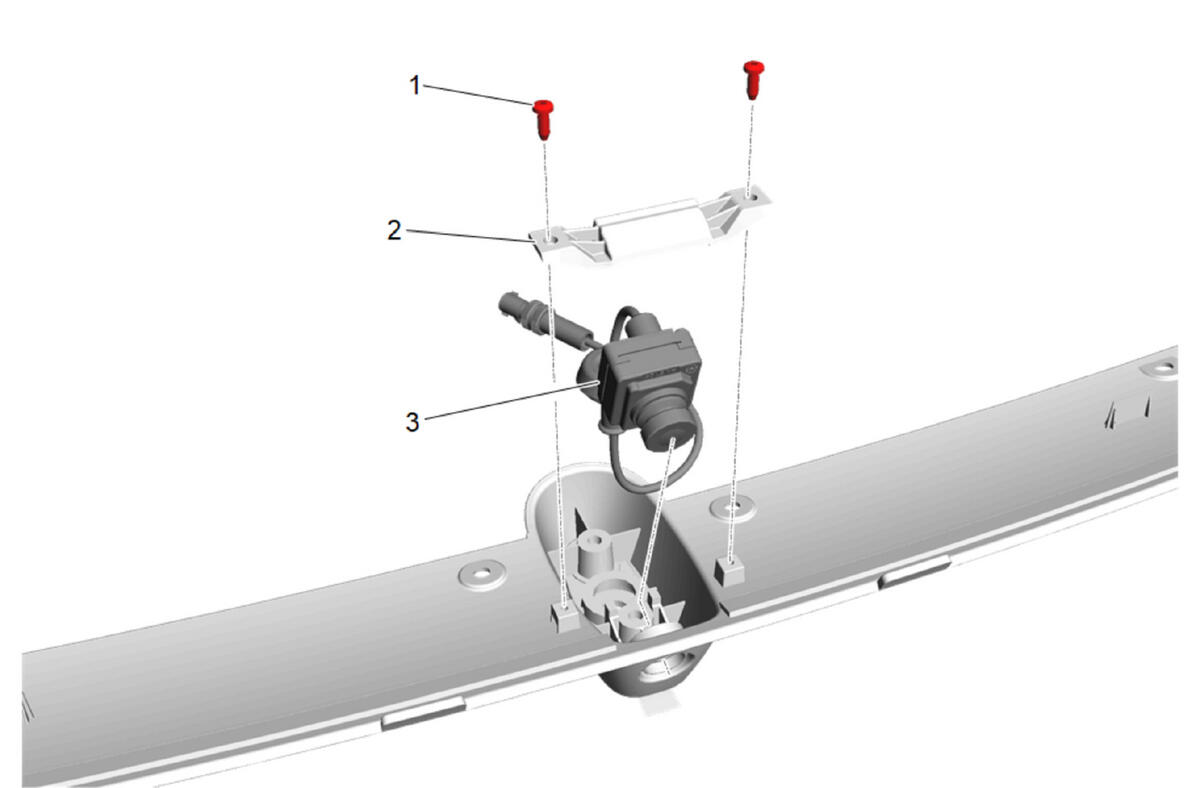

Video Display Inside Rearview Mirror Camera (3) - Install
- Video Display Inside Rearview Mirror Camera Bracket (2) - Install
- Video Display Inside Rearview Mirror Camera Bracket Bolt (1) - Install and tighten [2x] 0.7 N.m (6 lb in)

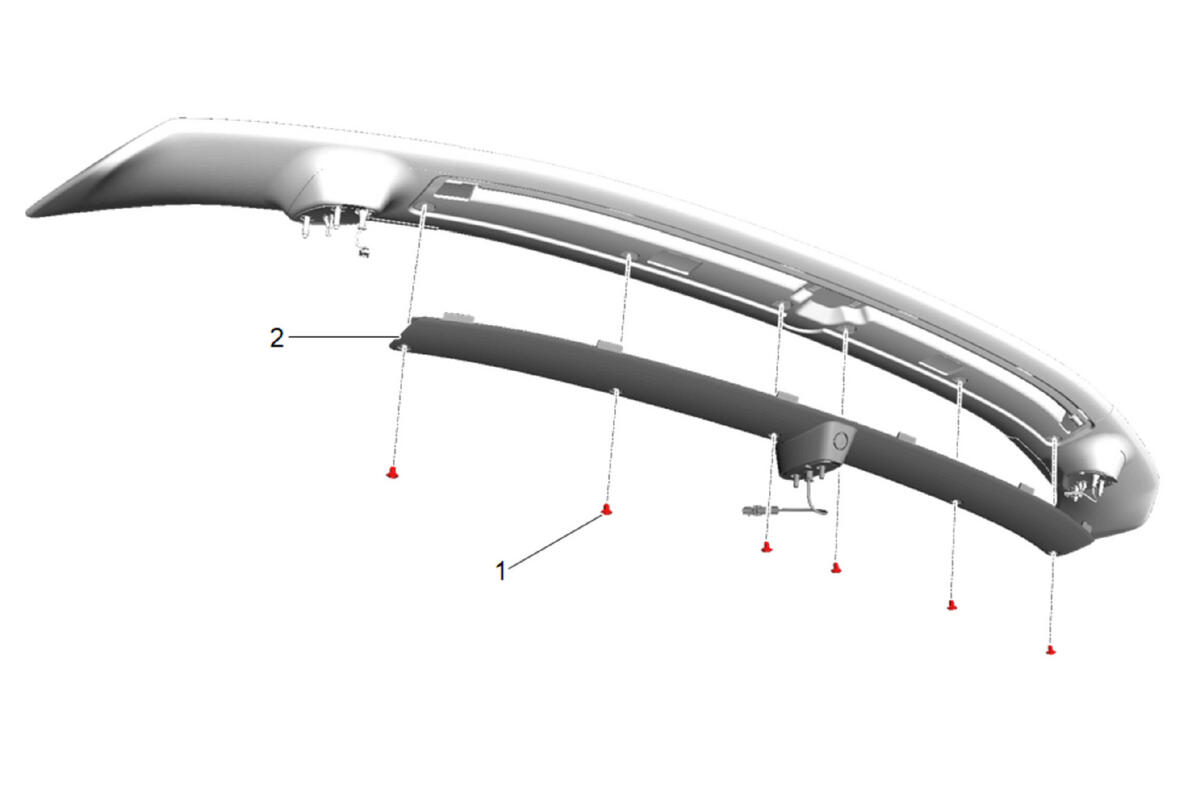

Rear End Lower Spoiler (2) - Install
- Rear End Spoiler Bolt (1) - Install and tighten [6x] 4.75 N.m (42 lb in)

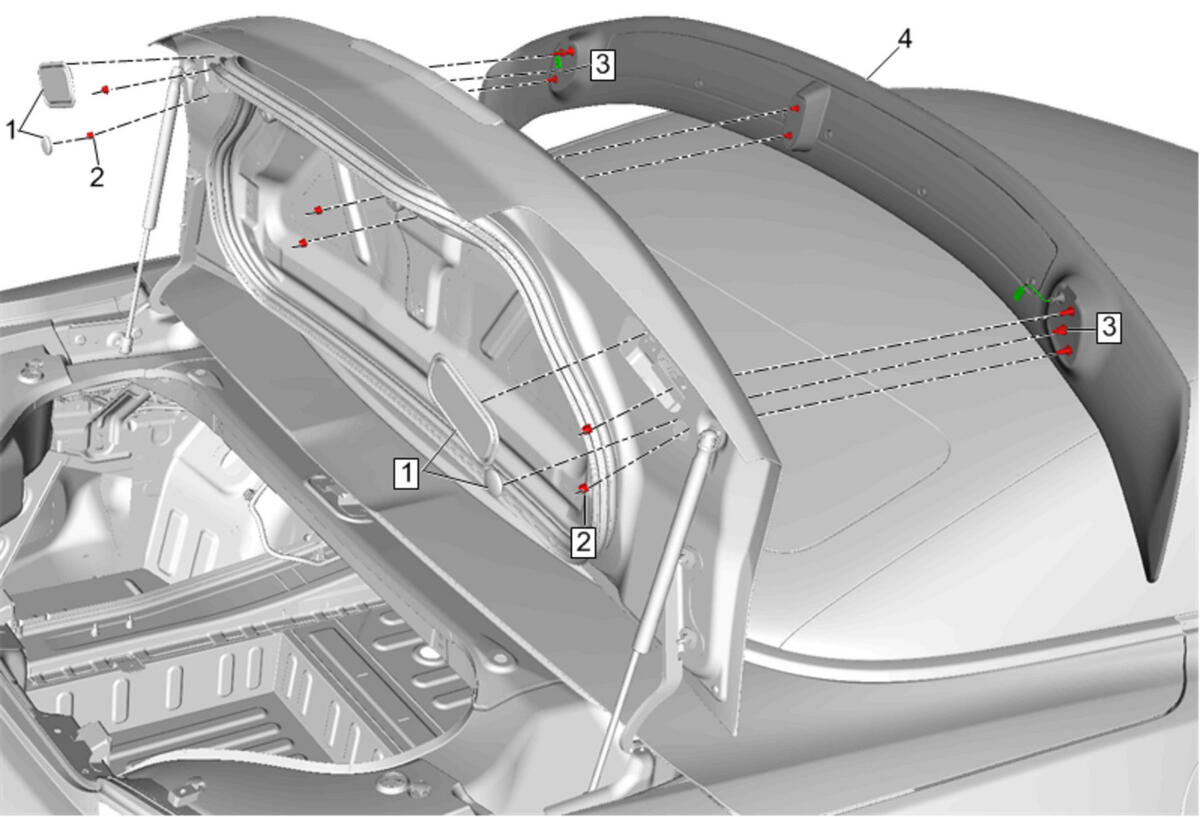

Rear End Spoiler (4) - Install - Rear End Spoiler Replacement (Base) , or Rear End Spoiler Replacement (Uplevel) , or Rear End Spoiler Replacement (A1X without ZL1) , or Rear End Spoiler Replacement (With A1Z) , or Rear End Spoiler Replacement (Extension with A1Z) , or Rear End Spoiler Replacement (ZL1 Coupe) , or Rear End Spoiler Replacement (ZL1 Convertible) , or Rear End Spoiler Replacement (A1X with ZL1)
CAUTION:
Refer to Fastener Caution .
