Tail Lamp Control Module Replacement
WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

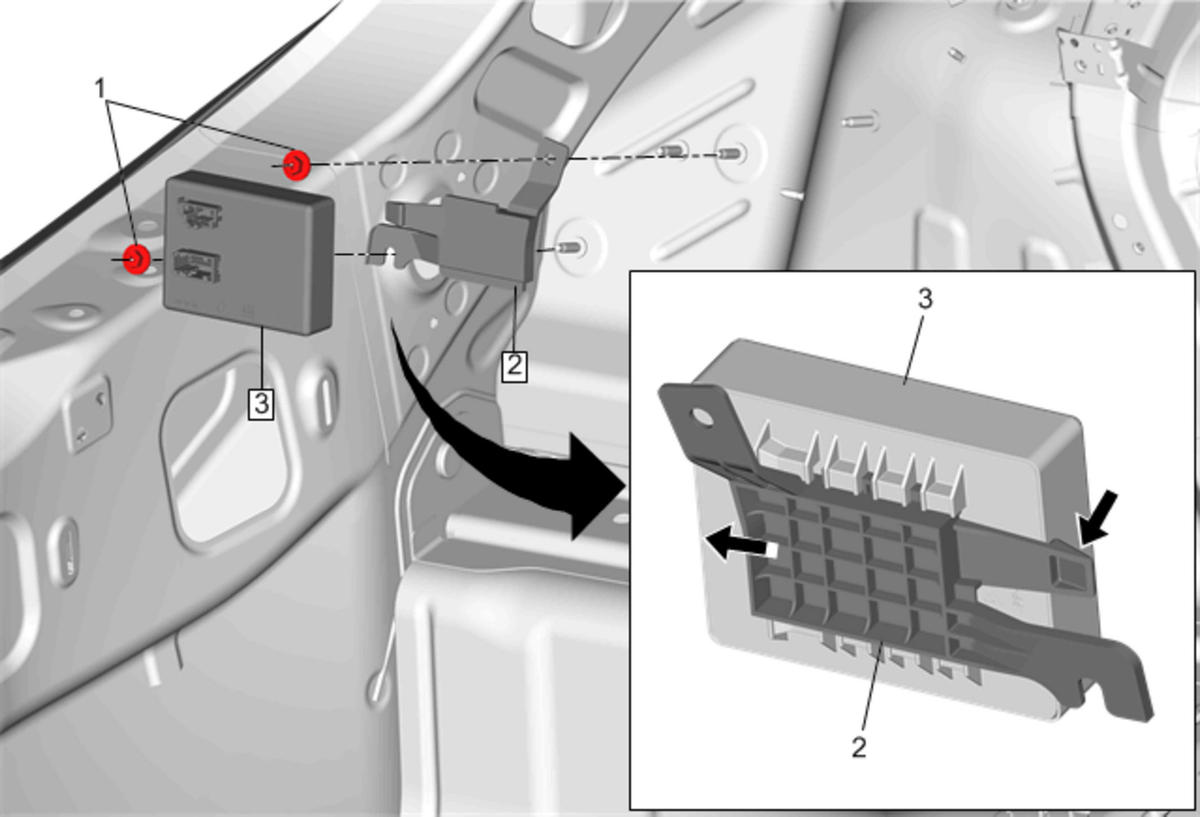

| Callout | Component Name |
|---|---|
| Preliminary Procedures Quarter Lower Rear Trim Panel-Left Side - Remove - Quarter Lower Rear Trim Panel Replacement |
|
| 1 | Tail Lamp Control Module Nut [2x]
CAUTION:
Tighten 8 N.m (71 lb in) |
| 2 | Tail Lamp Control Module Bracket Procedure Slide the module bracket and remove it from the module. |
| 3 | Tail Lamp Control Module Procedure
|
