Windshield Multifunction Sensor Mount Bracket Cover Replacement (without Front View Camera)

WARNING: This page is about a different car, the 2020 Chevrolet Bolt EV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

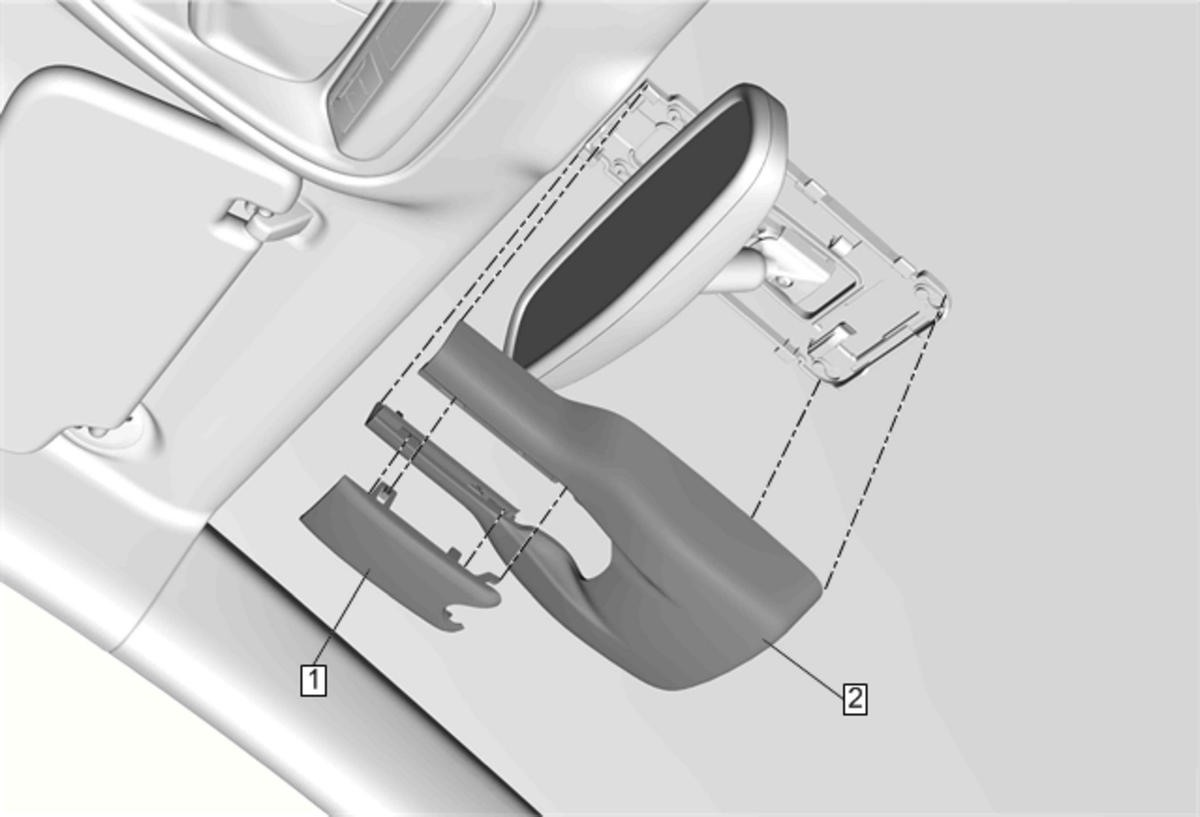

Callout	Component Name
1	Windshield Multifunction Sensor Mount Bracket Cover Insert WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.
2	Windshield Multifunction Sensor Mount Bracket Cover Procedure Using a plastic trim tool, release the cover from the windshield bracket. Windshield Multifunction Sensor Mount Bracket Cover Insert @ Windshield Multifunction Sensor Mount Bracket Cover - Remove

Callout

Component Name

Windshield Multifunction Sensor Mount Bracket Cover Insert

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Windshield Multifunction Sensor Mount Bracket Cover

Procedure

Using a plastic trim tool, release the cover from the windshield bracket.
Windshield Multifunction Sensor Mount Bracket Cover Insert @ Windshield Multifunction Sensor Mount Bracket Cover - Remove
