Drive Motor Battery Charger Receptacle Terminal Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

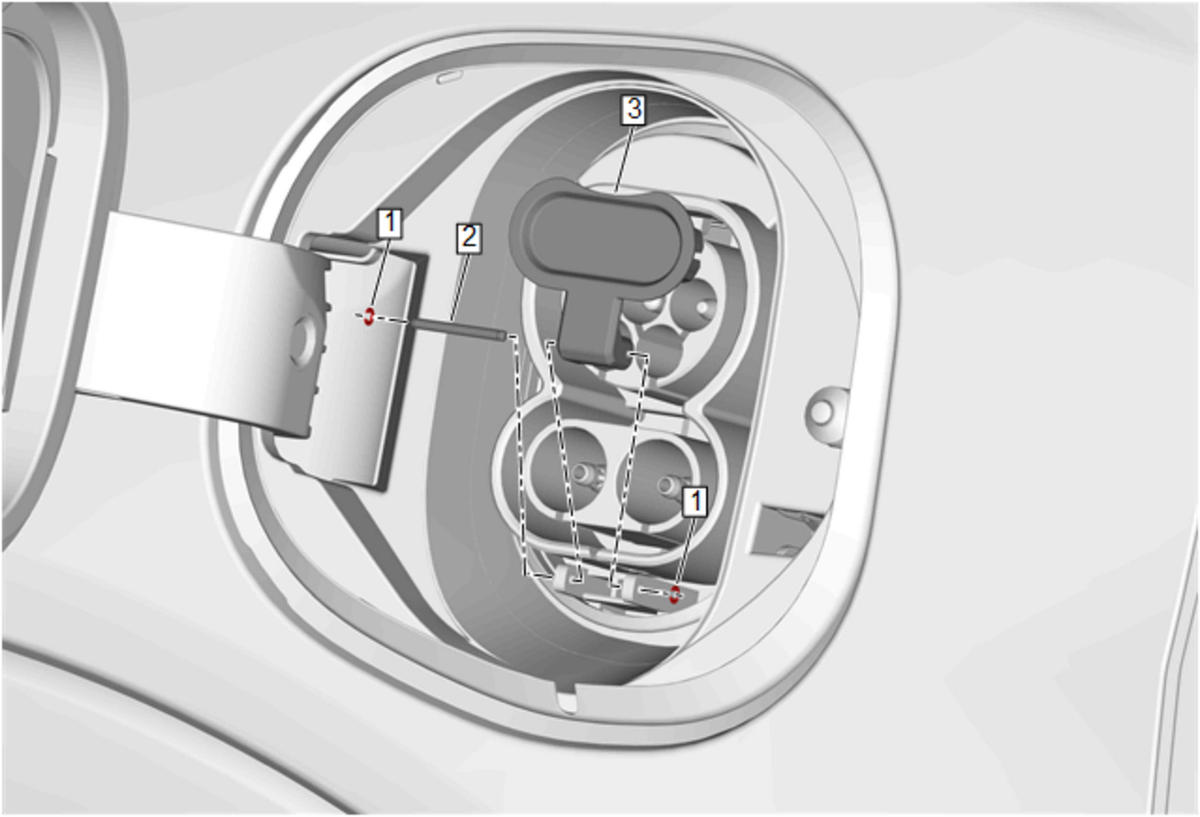

Callout	Component Name
Preliminary Procedure  Open the charge port door.
1	Drive Motor Battery Charger Receptacle Terminal Cover Pin Retaining Ring [ 2x ]
2	Drive Motor Battery Charger Receptacle Terminal Cover Pin
3	Drive Motor Battery Charger Receptacle Terminal Cover
