Liftgate Latch Striker Replacement

Courtesy of GENERAL MOTORS COMPANY

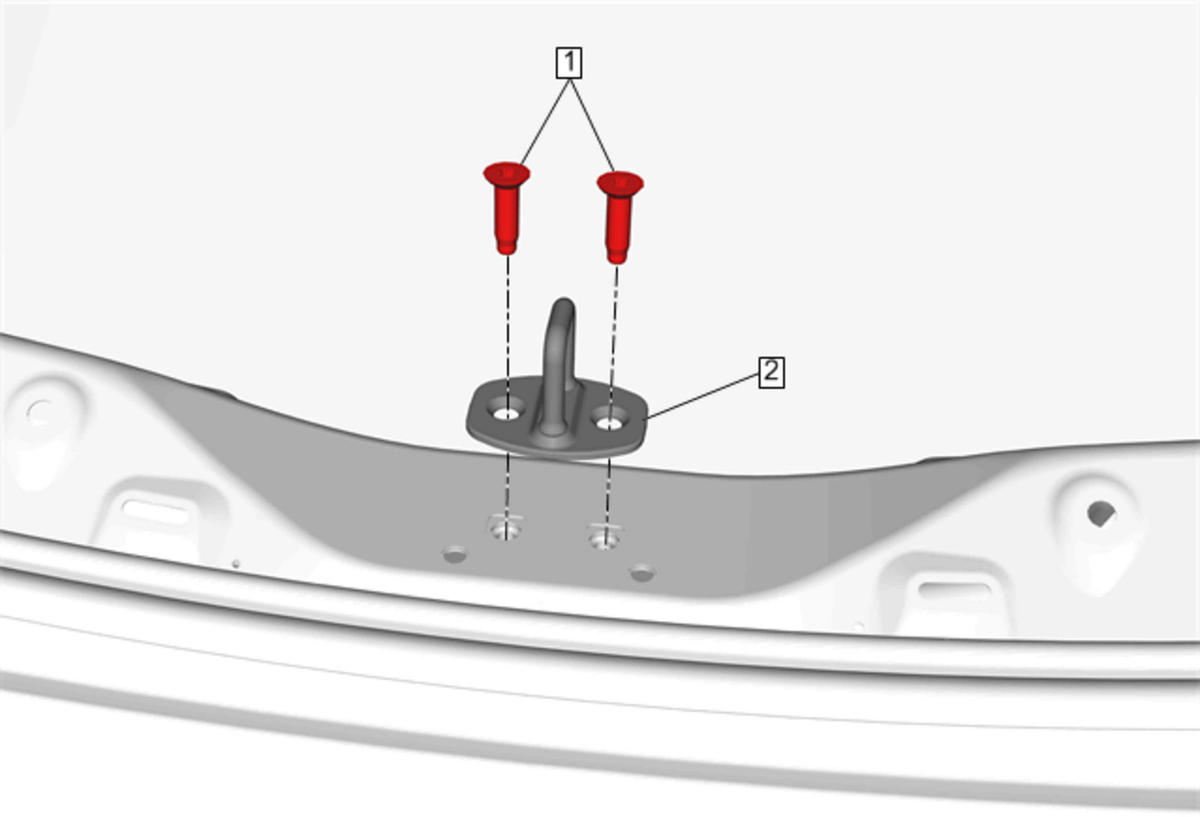

Callout	Component Name
Preliminary Procedure Liftgate Sill Garnish Molding Replacement
1	Liftgate Latch Striker Bolt [ 2x ] CAUTION: Fastener Caution Tighten 22 N.m (16 lb-ft) Procedure Use a grease pencil to outline the striker before removing the bolts.
2	Liftgate Latch Striker Procedure Adjust the liftgate latch striker after replacing, if needed.
