Installation Procedure

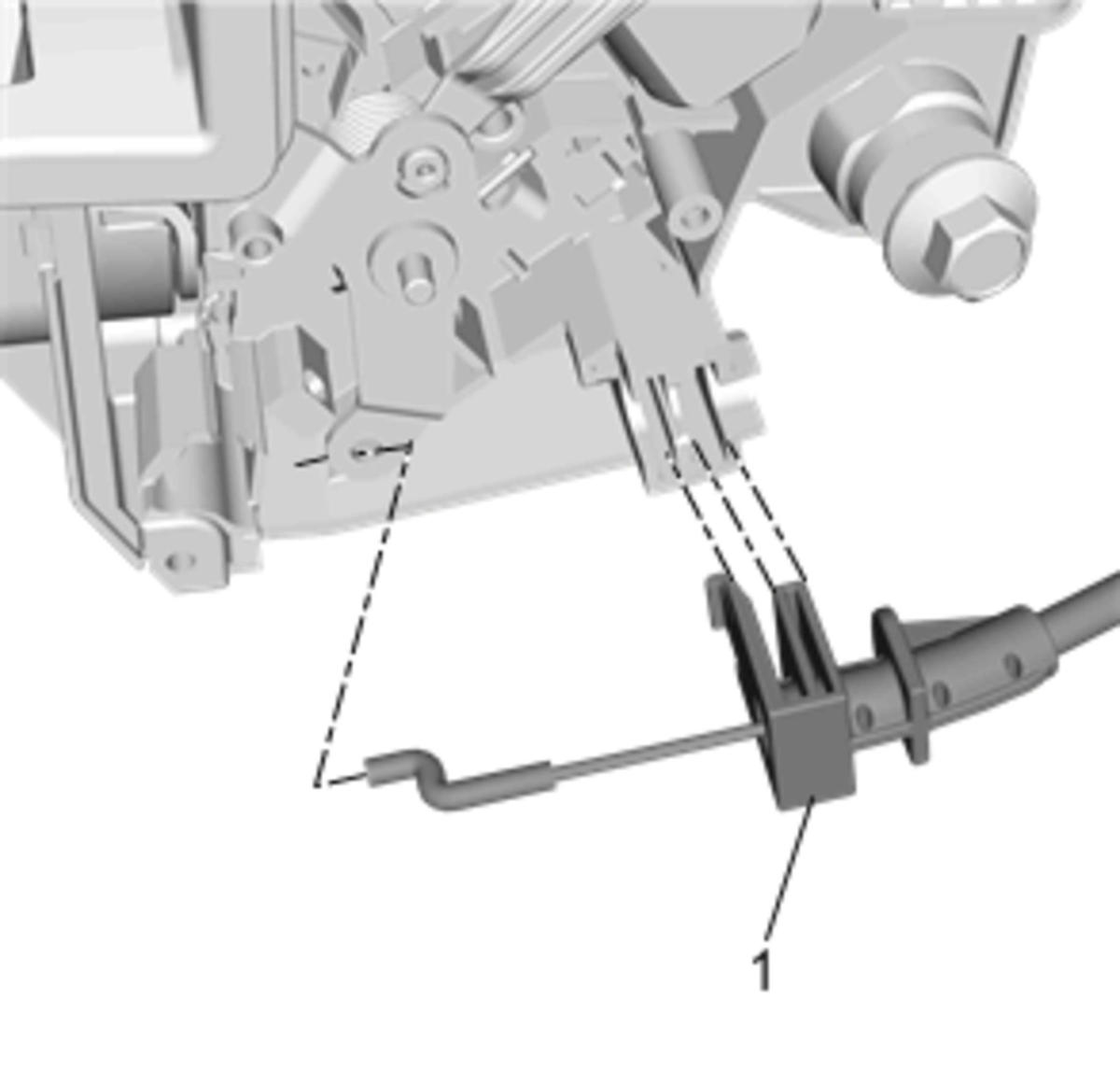

  1. GM4534750Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Inside Handle Cable (1) @ Front Side Door Latch - Install

  2. Close the cable access cover.
  3. GM4534746Courtesy of GENERAL MOTORS COMPANY

    Front Side Door Latch (1) - Install - Front Side Door Latch Replacement

NOTE:

Ensure that the door lock system operates properly before installing the trim.
