Installation Procedure

Transfer components as necessary.
Courtesy of GENERAL MOTORS COMPANY

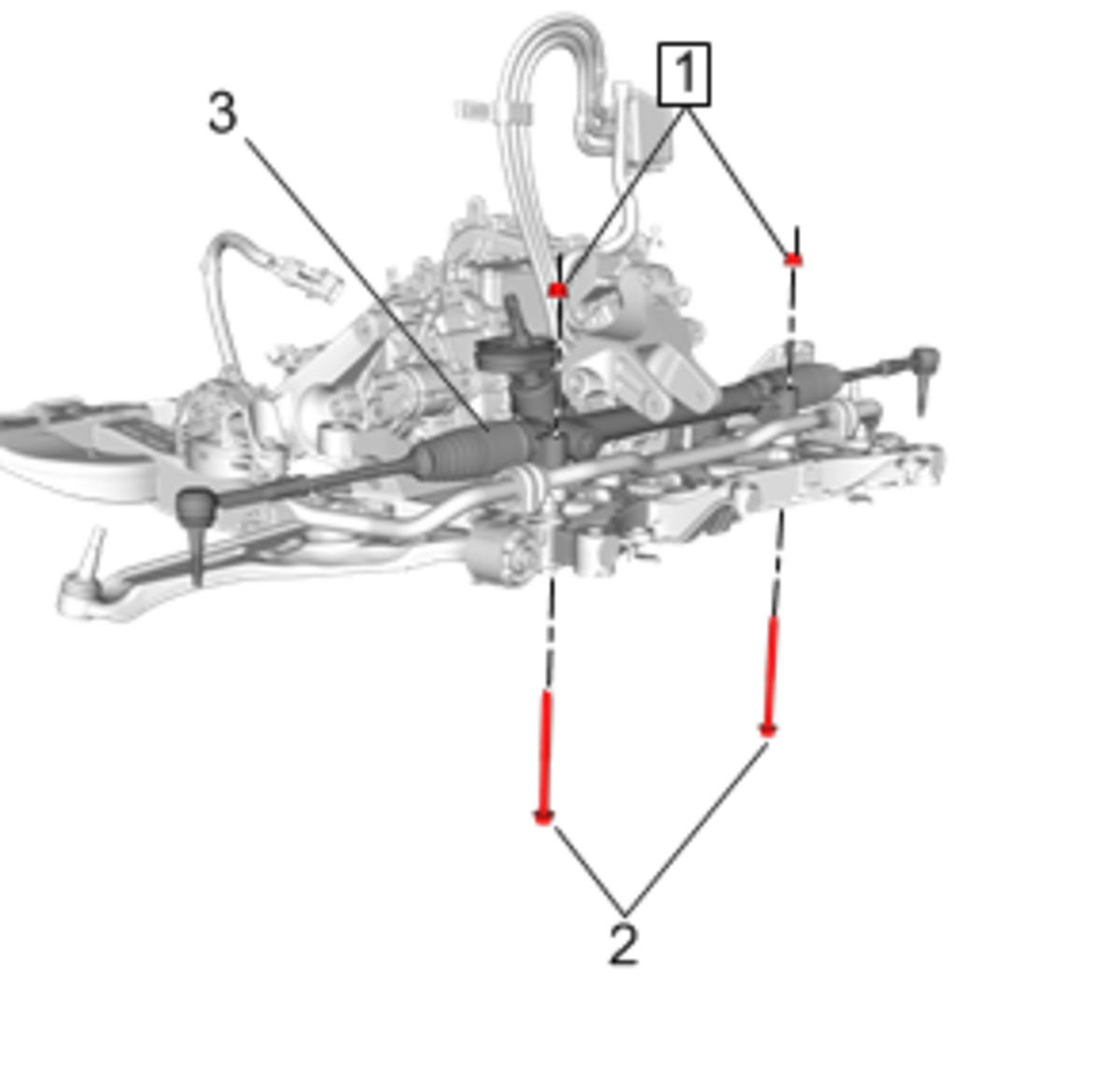

Rack and Pinion Steering Gear (3) @ Drivetrain and Front Suspension Crossmember - Install
Steering Gear Bolt (2) - Install [ 2x ]
Steering Gear Nut (1) - Install [ 2x ]

CAUTION:

Steering Gear Bolt (2) - Tighten [ 2x ]
1. First Pass: 100 N.m (74 lb-ft)
2. Final Pass: 45 - 60 Degrees
Courtesy of GENERAL MOTORS COMPANY

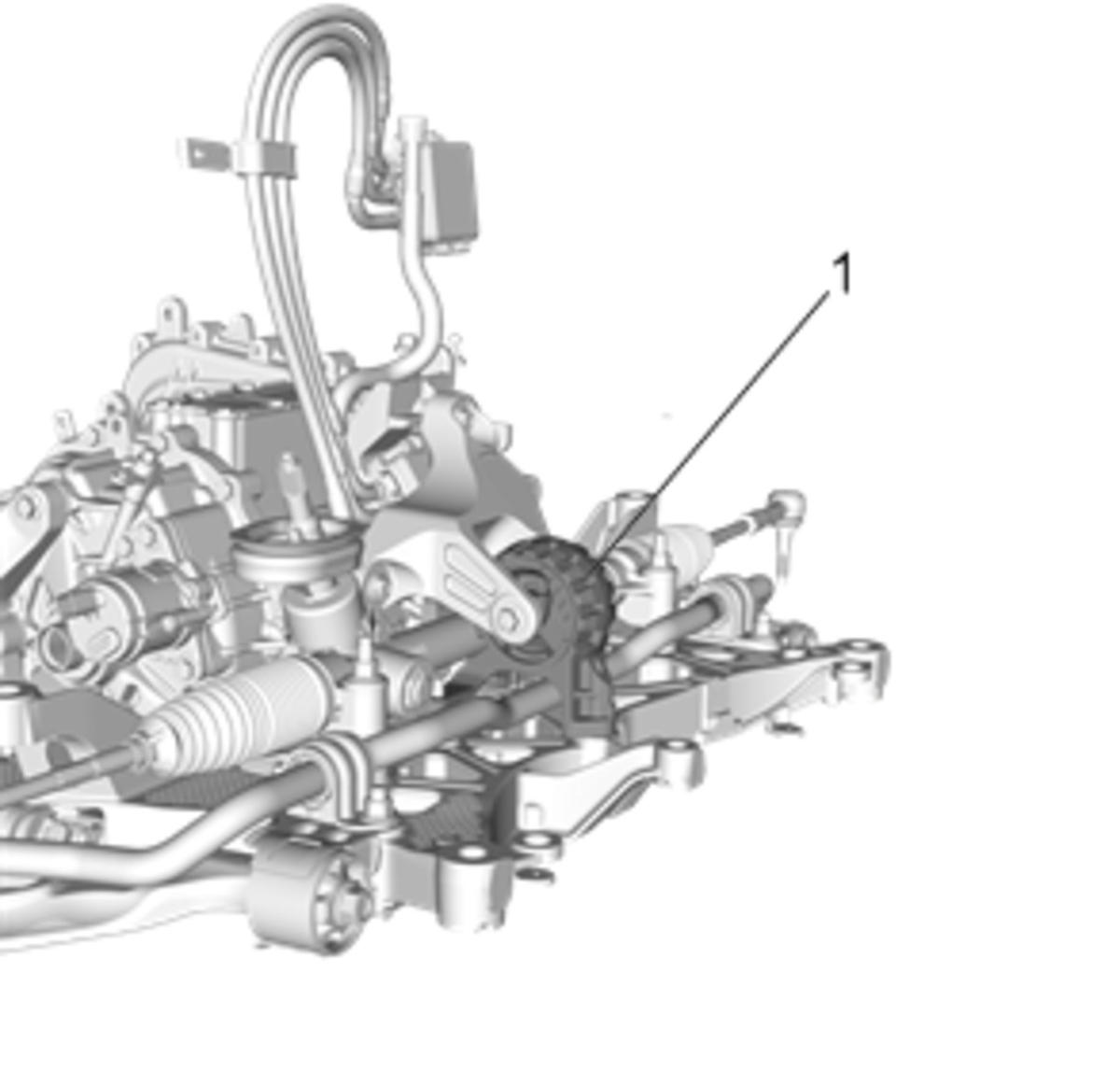

Drive Motor Rear Mount (1) - Install - Drive Motor Rear Mount Replacement
Courtesy of GENERAL MOTORS COMPANY

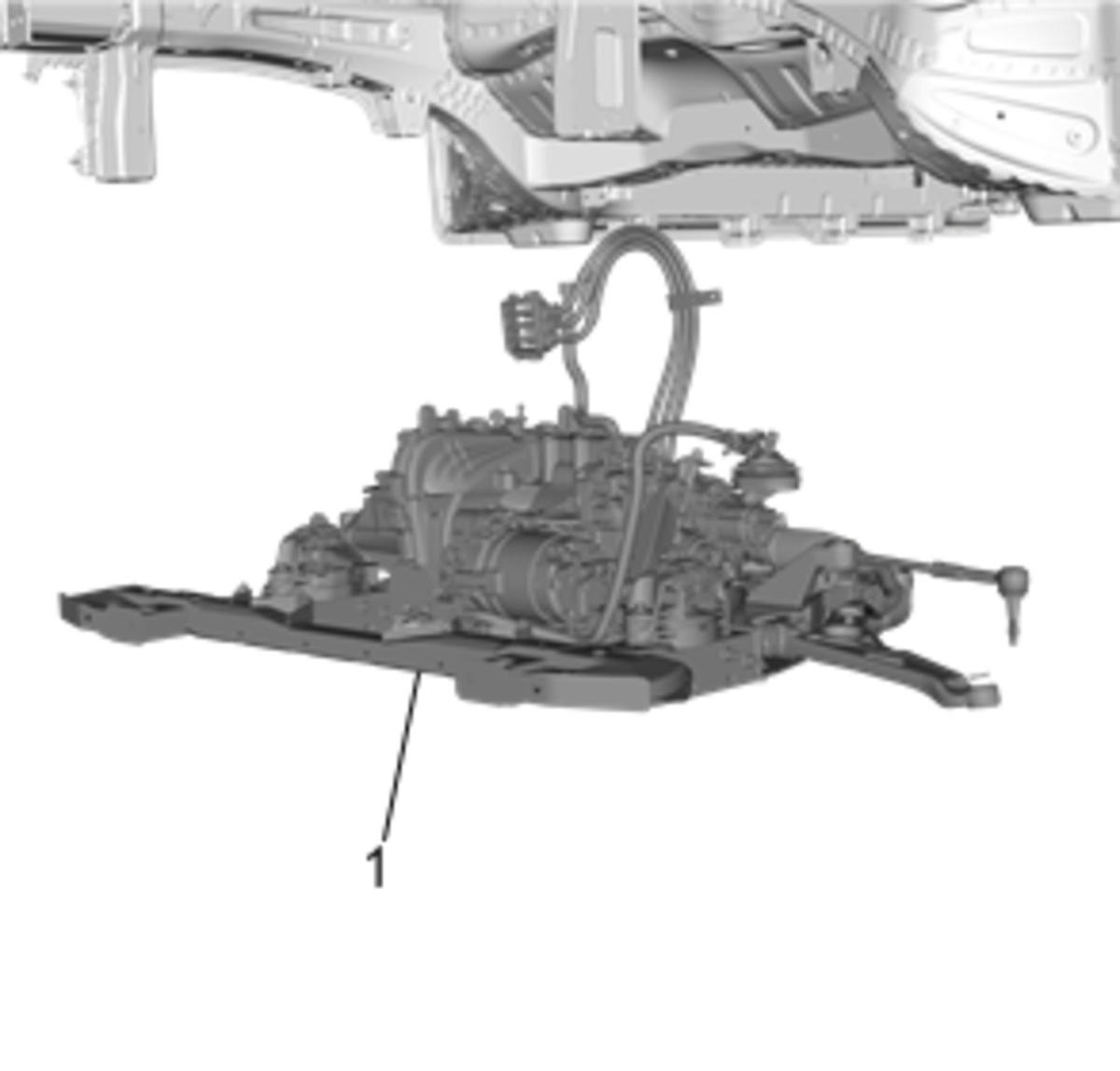

Automatic Transmission and Drivetrain and Front Suspension Frame Assembly (1) - Install - Drivetrain and Front Suspension Frame Removal and Installation
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
Calibrate the steering angle sensor. Steering Wheel Angle Sensor Centering
