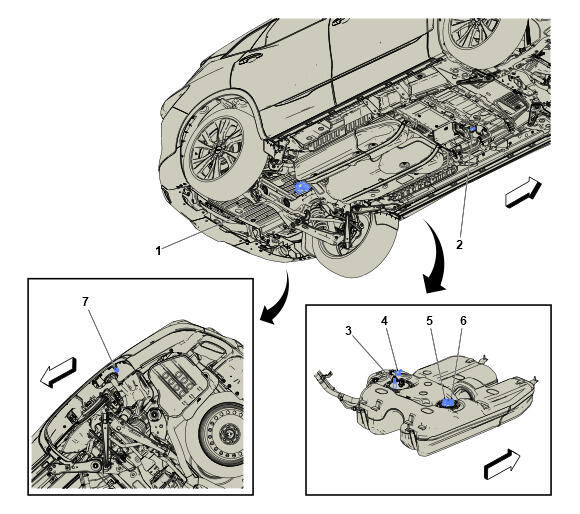

Underbody Components
Underbody Components
| Component Name | Callout |
|---|---|
| K111 Fuel Pump Driver Control Module K111 Fuel Pump Driver Control Module | 1 |
| Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve (LCV/LGX) , or Q13 Evaporative Emission Vent Solenoid Valve (LSY) | 2 |
| A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly | 3 |
| B47 Fuel Pressure Sensor B47 Fuel Pressure Sensor | 4 |
| B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor | 5 |
| B187 Fuel Level Sensor Assembly (F48) B187 Fuel Level Sensor Assembly (F48) | 6 |
| M97 Fuel Fill Door Lock Actuator (N08) M97 Fuel Fill Door Lock Actuator (N08) | 7 |
