Multimedia Receptacle Replacement

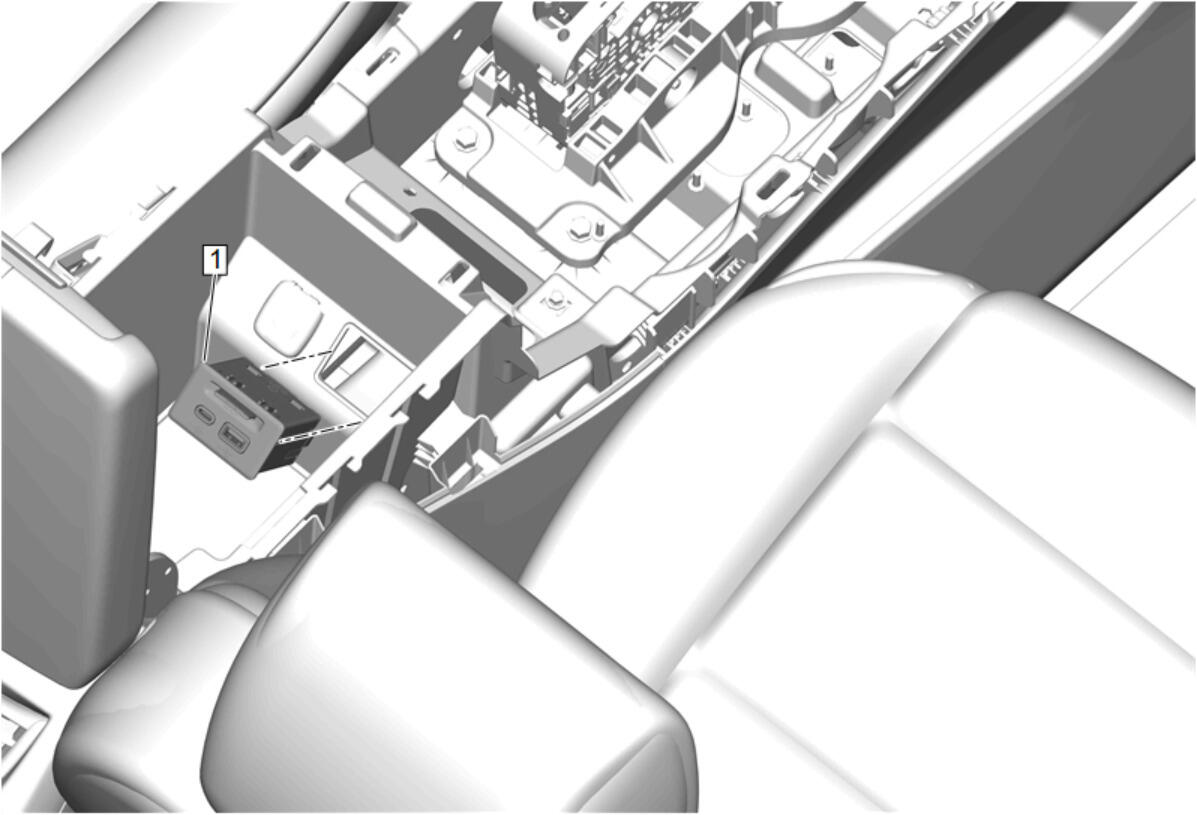

GM5135394Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Upper Panel Replacement
1 Multimedia Receptacle

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Transfer components as necessary.
