Forward Range Radar Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

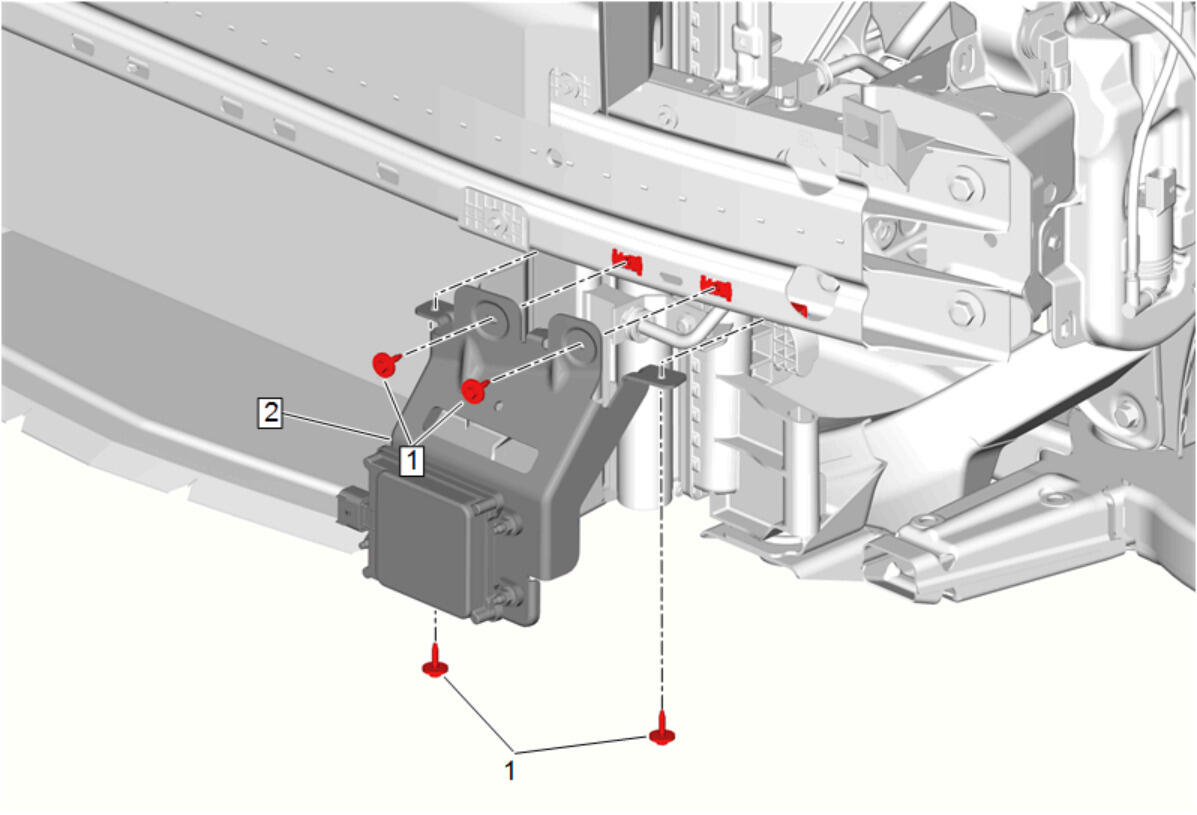

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Removal and Installation
1	Forward Range Radar Bracket Bolt [4x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Forward Range Radar Bracket Procedure Disconnect the electrical connector. Reposition the wiring harness. Transfer components as necessary.

Callout

Component Name

Forward Range Radar Bracket Bolt [4x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Forward Range Radar Bracket

Procedure
