Installation Procedure

  1. GM5131786Courtesy of GENERAL MOTORS COMPANY

    Install the steering wheel. (1)

  2. Connect the electrical connector.

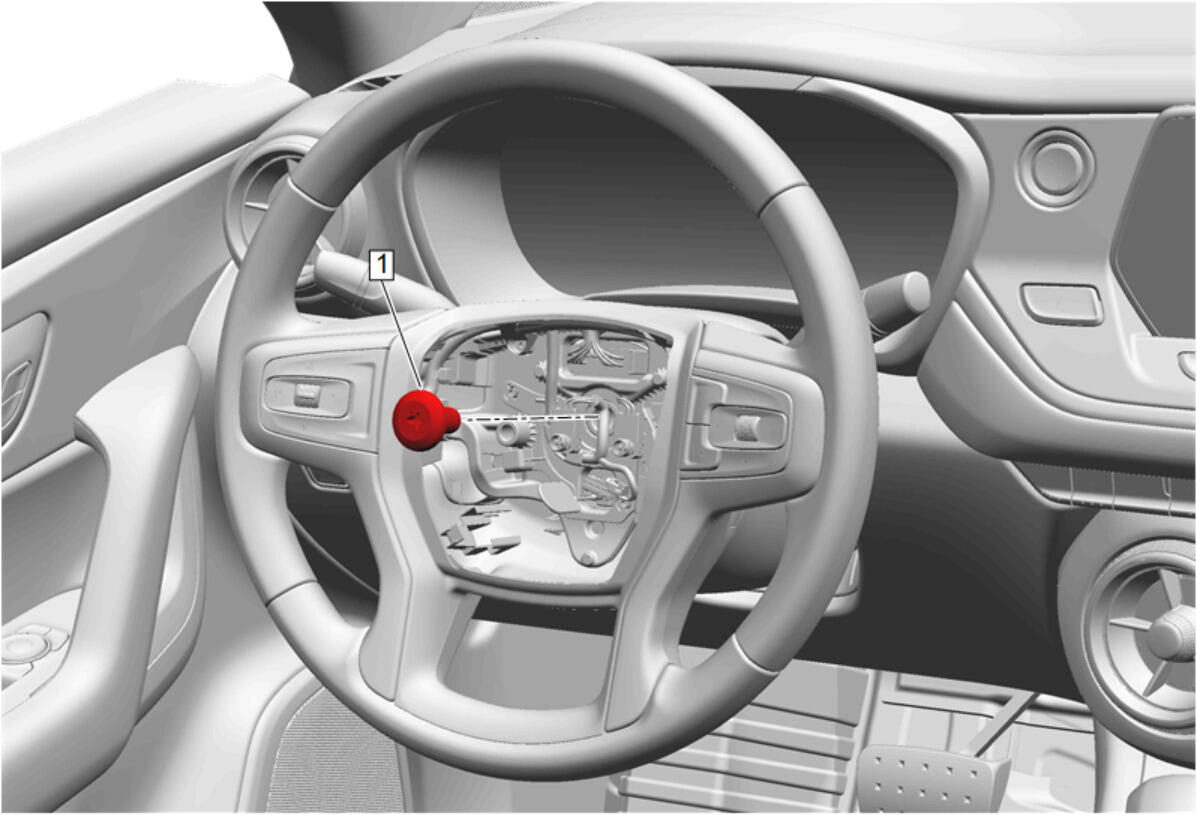

  3. GM5131780Courtesy of GENERAL MOTORS COMPANY

    Prepare the steering wheel bolt (1) for installation.

    1. Thread the cleaned component into the internal mating threads and remove to loosen trapped cured adhesive. (1)
    2. Apply thread locking adhesive to the external threads of the component. (1) Adhesives, Fluids, Lubricants, and Sealers
    4. CAUTION:

    Fastener Caution .

  4. Steering Wheel Bolt (1) - Install and tighten 45 N.m (33 lb ft)
  5. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
