Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

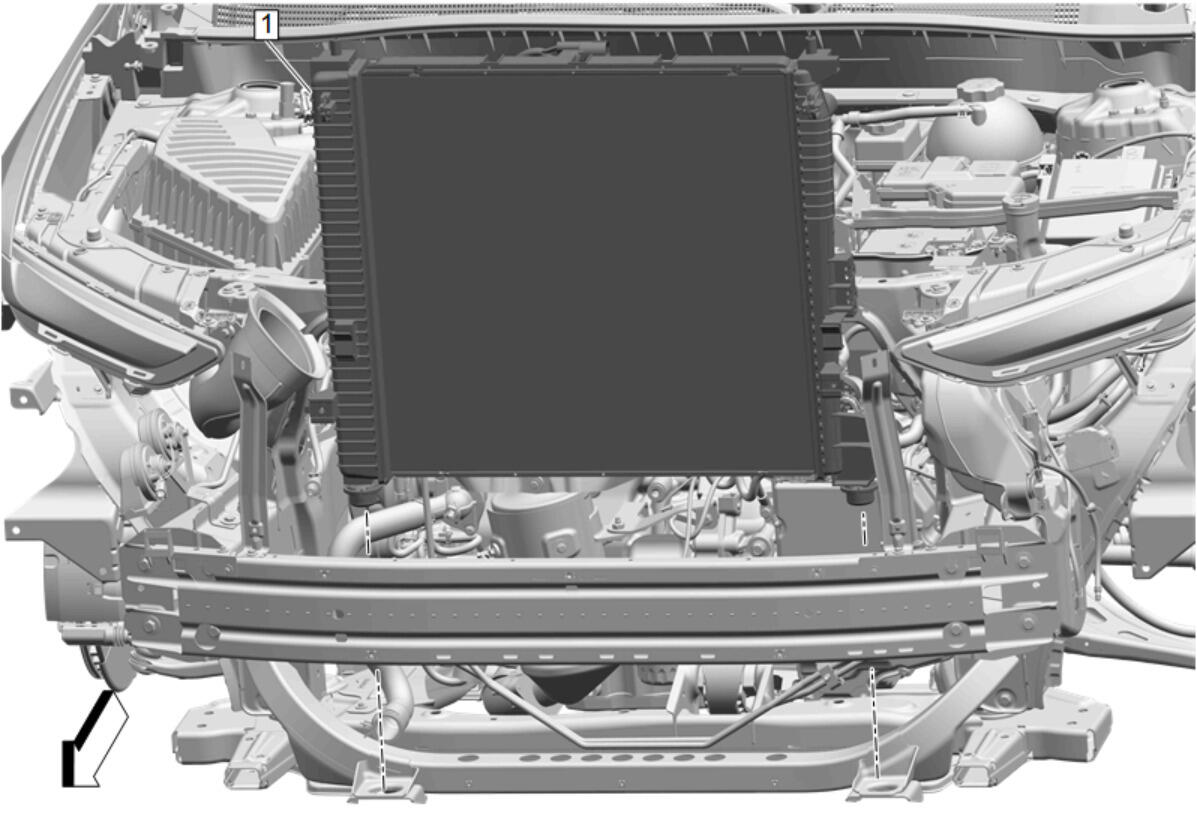

Engine Coolant Fan Module Radiator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

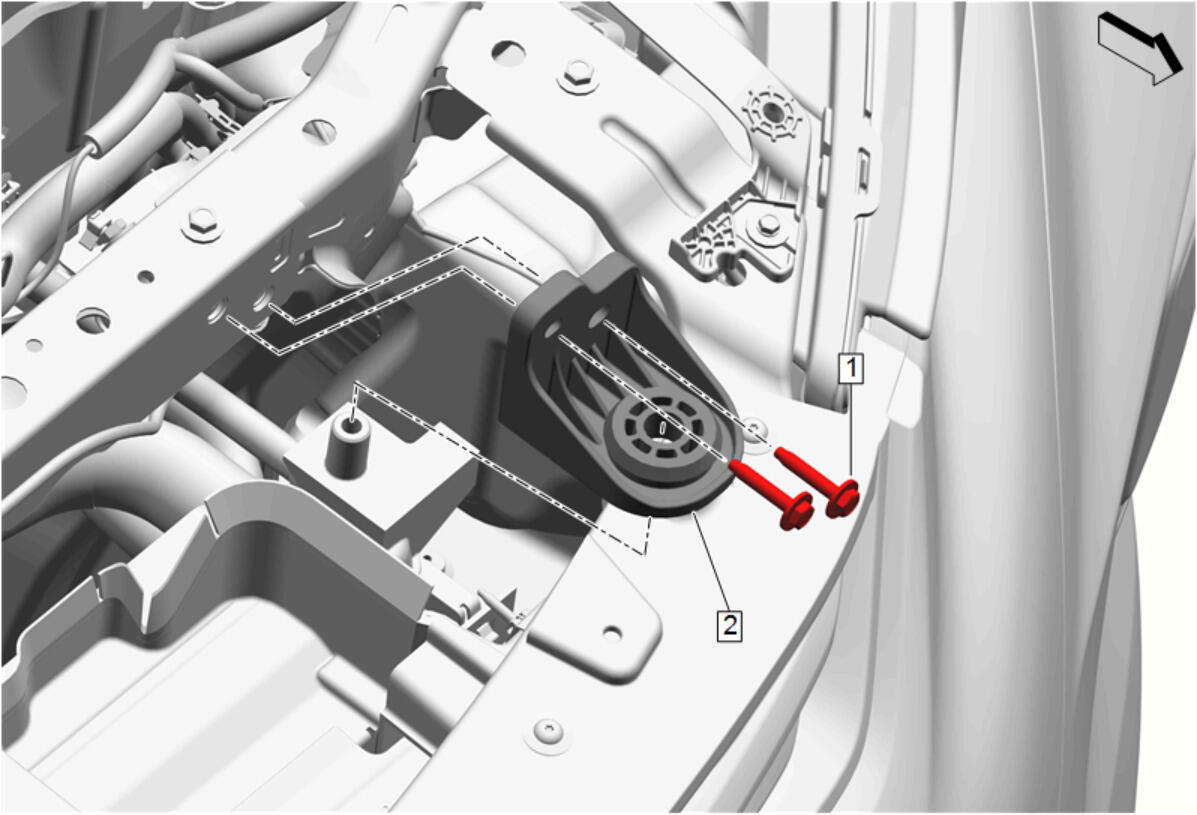

Radiator Upper Bracket - Right Side (2) - Install - Radiator Upper Bracket Replacement - Right Side (LCV, LGX) .
Courtesy of GENERAL MOTORS COMPANY

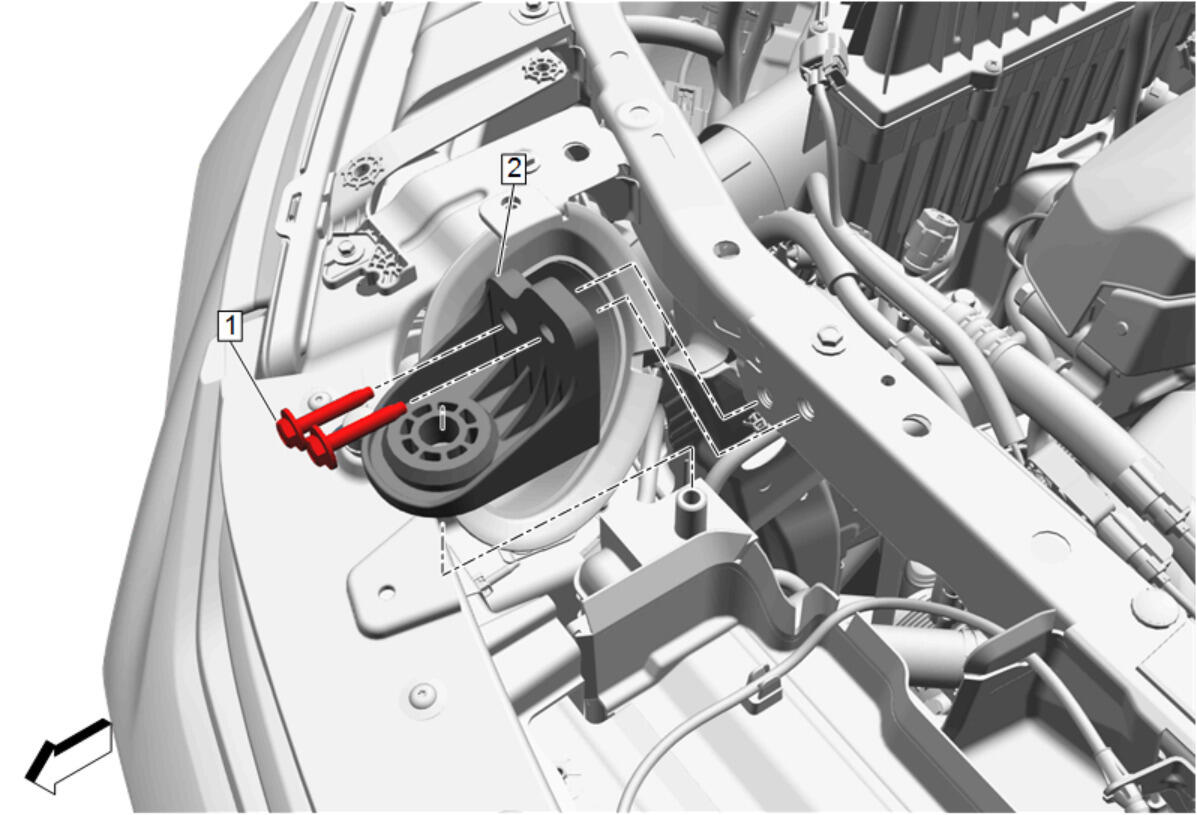

Radiator Upper Bracket - Left Side (2) - Install - Radiator Upper Bracket Replacement - Left Side (LCV, LGX) ,
Courtesy of GENERAL MOTORS COMPANY

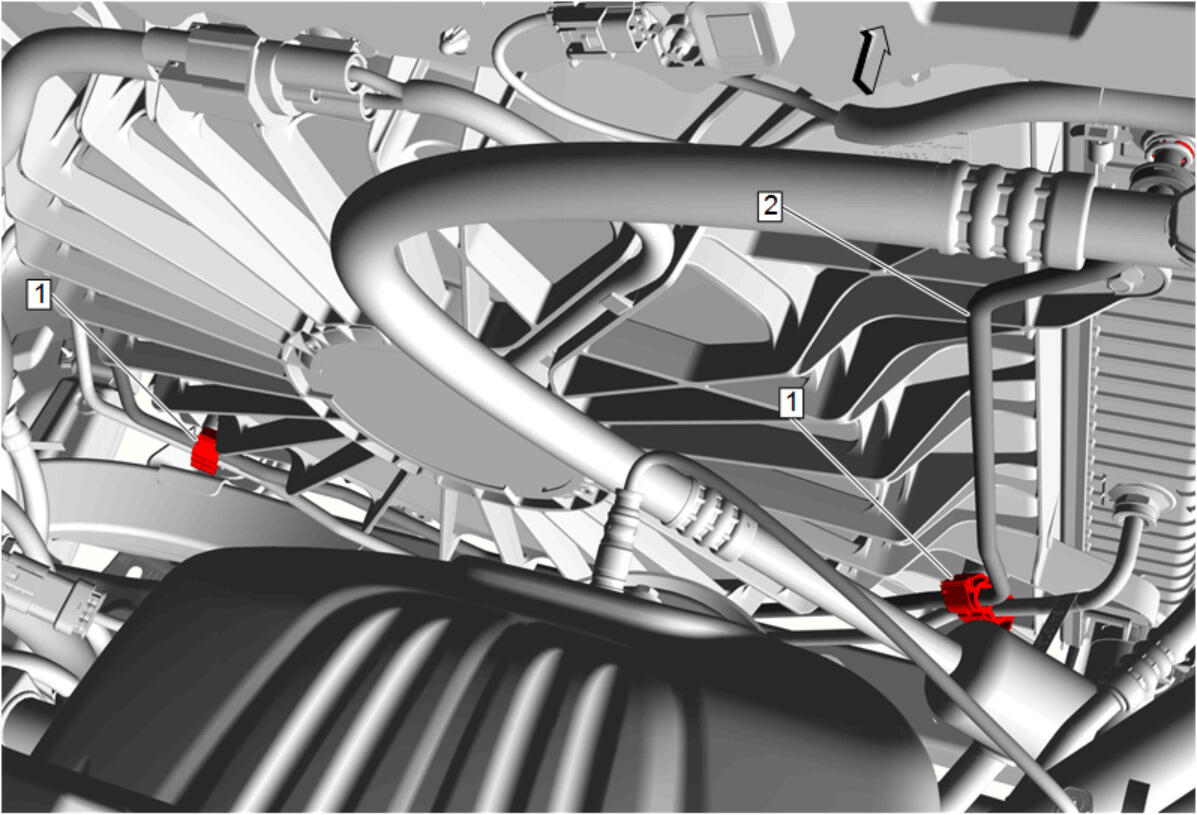

Transmission Fluid Auxiliary Cooler Outlet Pipe (2) @ Radiator - Install - Transmission Fluid Auxiliary Cooler Outlet Pipe Replacement (LCV, LGX, without V08)
Courtesy of GENERAL MOTORS COMPANY

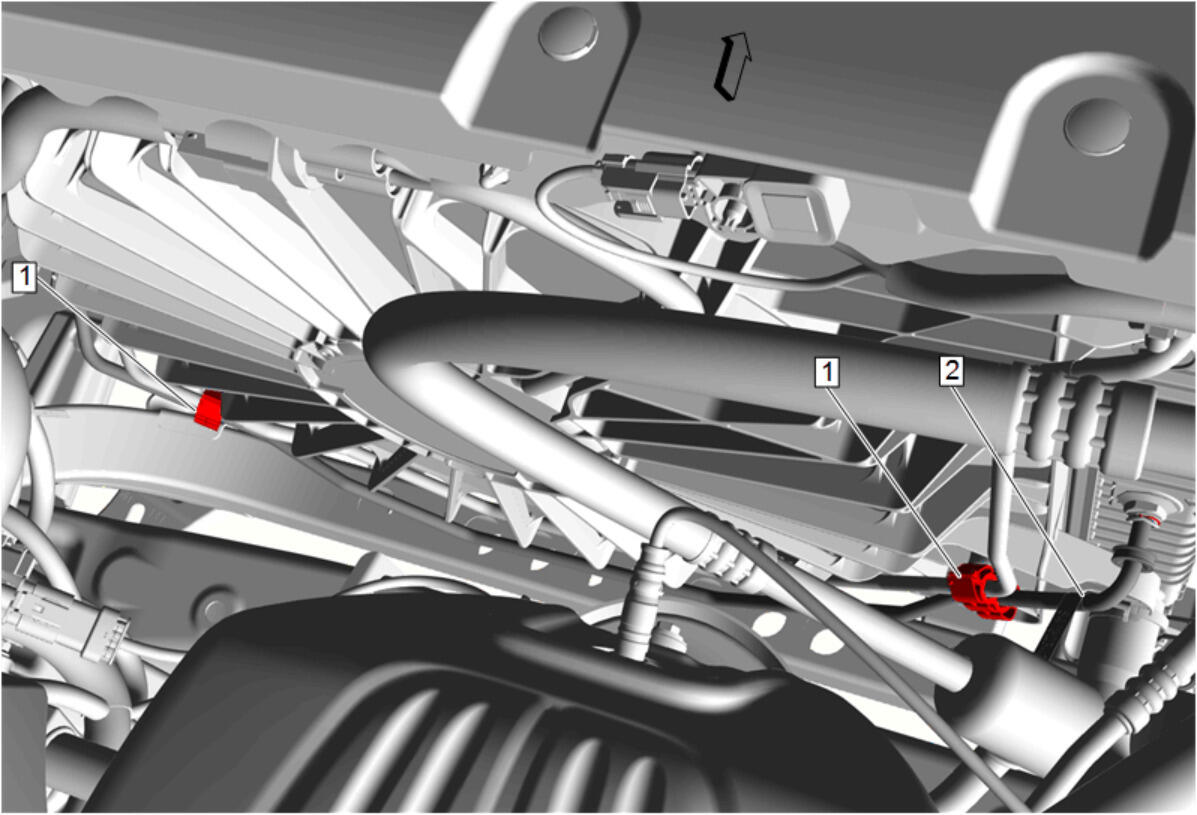

Transmission Fluid Auxiliary Cooler Inlet Pipe (2) @ Radiator - Install - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (LCV, LGX, without V08)
Transmission Fluid Auxiliary Cooler Inlet Pipe Clip (1) @ Engine Cooler Fan - Install
Courtesy of GENERAL MOTORS COMPANY

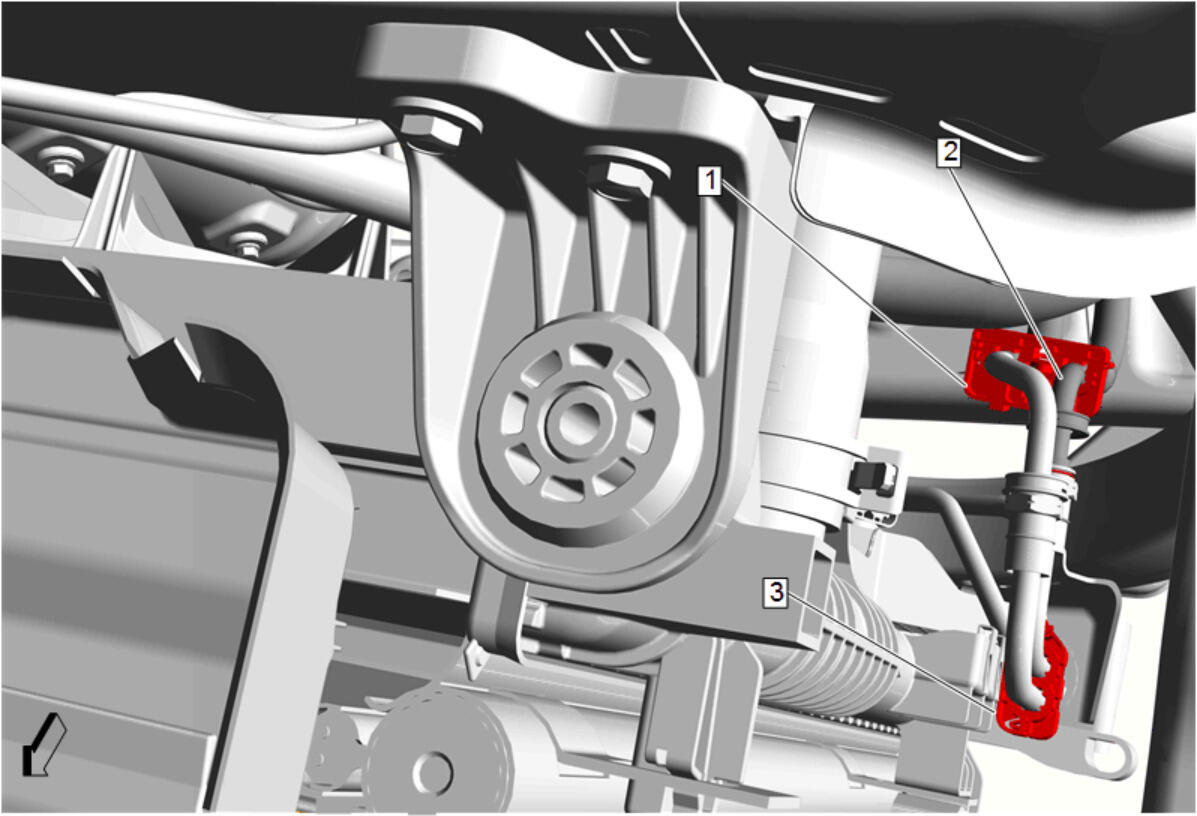

Transmission Fluid Auxiliary Cooler Inlet Pipe Clip (3) @ Radiator - Install
Courtesy of GENERAL MOTORS COMPANY

Air Conditioning Condenser (1) - Install - Air Conditioning Condenser Replacement (without V08 with LCV, LGX, FWD) .
Wiring Harness @ Engine Coolant Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

Electrical Connector (1) @ Engine Coolant Fan - Connect
Courtesy of GENERAL MOTORS COMPANY

Radiator Inlet Hose (2) @ Radiator - Install - Radiator Inlet Hose Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Radiator Surge Tank Inlet Hose (2) @ Radiator - Install - Radiator Surge Tank Inlet Hose Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose (2) @ Radiator - Install - Radiator Outlet Hose Replacement (LCV)
Courtesy of GENERAL MOTORS COMPANY

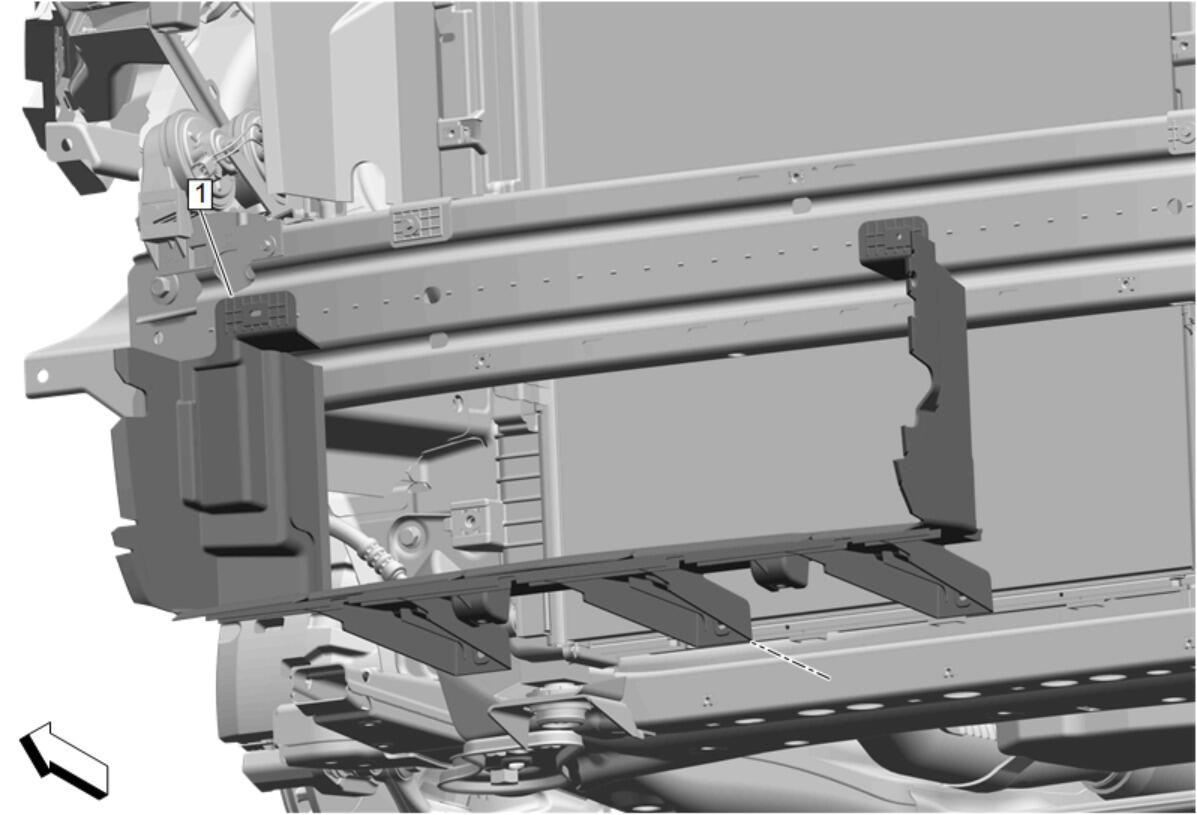

Radiator Air Front Lower Baffle (1) - Install - Radiator Air Front Lower Baffle Replacement (LCV, LGX) ,
Courtesy of GENERAL MOTORS COMPANY

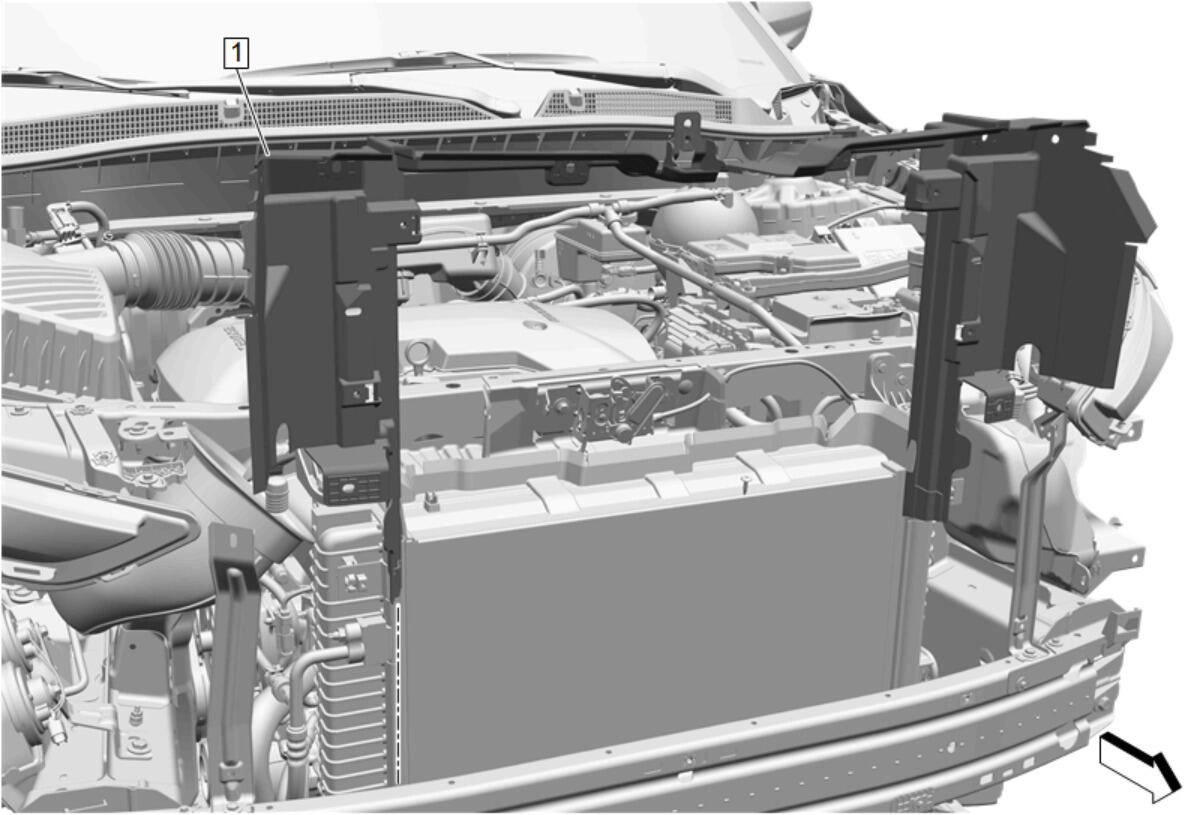

Radiator Air Front Upper Baffle (1) - Install - Radiator Air Front Upper Baffle Replacement (LCV, LGX) .
Radiator Air Upper Baffle - Install - Radiator Air Upper Baffle Replacement (LCV, LGX) .
Radiator Support Baffle - Install - Radiator Support Baffle Replacement (LCV, LGX) .
Front Bumper Fascia - Install - Front Bumper Fascia Removal and Installation
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static LCV, LGX) , or Cooling System Draining and Filling (GE 47716 LCV, LGX) .
Start the engine and check for coolant leaks.
