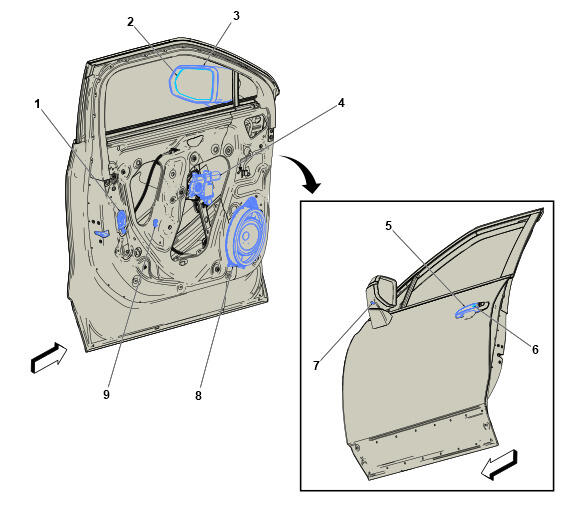

Driver Door Components
Driver Door Components
| Component Name | Callout |
|---|---|
| A23D Door Latch Assembly - Driver A23D Door Latch Assembly - Driver | 1 |
| E17D Outside Rearview Mirror Glass - Driver E17D Outside Rearview Mirror Glass - Driver X1 , or E17D Outside Rearview Mirror Glass - Driver X2 , or E17D Outside Rearview Mirror Glass - Driver X3 (UKC) , or E17D Outside Rearview Mirror Glass - Driver X4 (DD8/DRZ) | 2 |
| A9A Outside Rearview Mirror - Driver | 3 |
| M74D Window Motor - Driver M74D Window Motor - Driver | 4 |
| A24D Door Handle Assembly - Driver Exterior A24D Door Handle Assembly - Driver Exterior | 5 |
| B27D Door Handle Switch - Driver Exterior | 6 |
| B225L Sideview Camera - Left (UV2) B225L Sideview Camera - Left (UV2) | 7 |
| P19AG Speaker - Left Front Door P19AG Speaker - Left Front Door (UQA) , or P19AG Speaker - Left Front Door (UQF) | 8 |
| B63LF Side Impact Sensor - Left Front B63LF Side Impact Sensor - Left Front | 9 |
