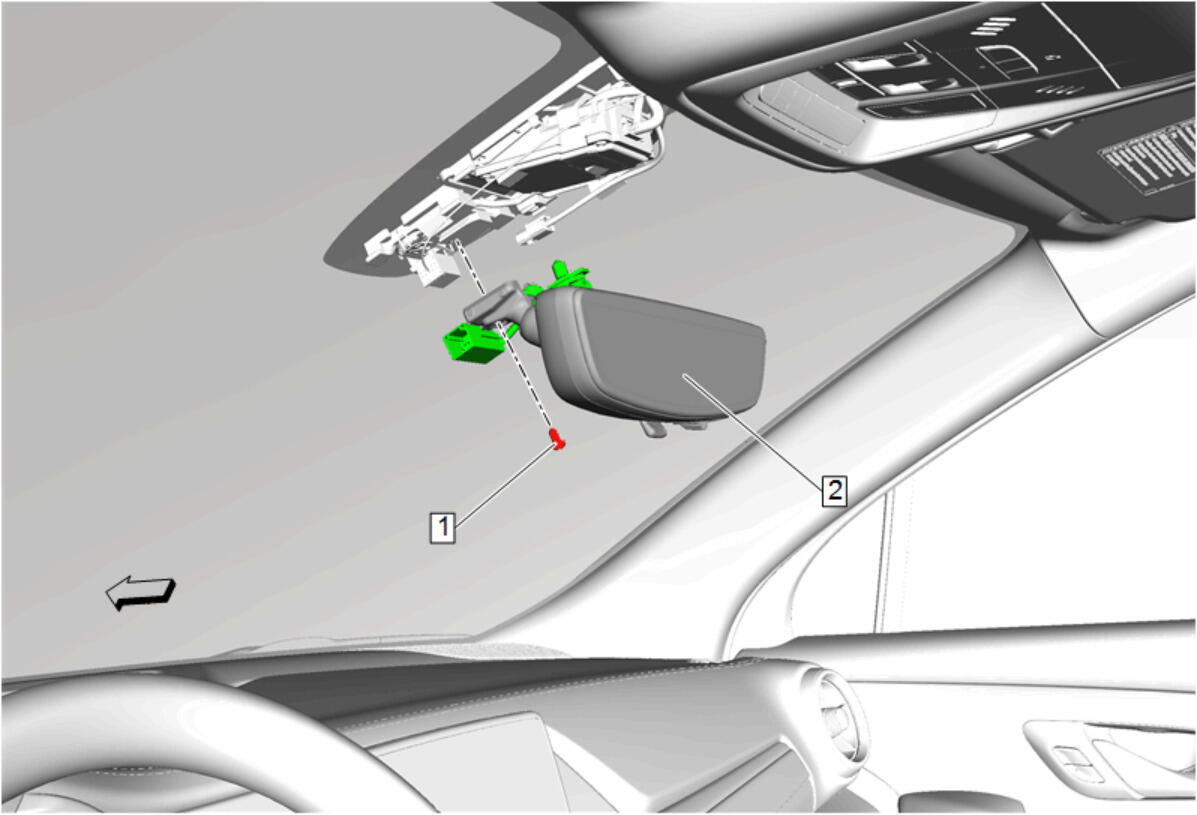

Inside Rearview Mirror Replacement
| Callout | Component Name |
|---|---|
|
WARNING:
Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (With UHX)
, or Windshield Multifunction Sensor Mount Bracket Cover Replacement (Without UHX)While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. |
|
| 1 | Inside Rearview Mirror Bolt
CAUTION:
Refer to Fastener Caution . Tighten 1.8 N.m (16 lb in) |
| 2 | Inside Rearview Mirror Procedure Disconnect the electrical connector. |
