Installation Procedure

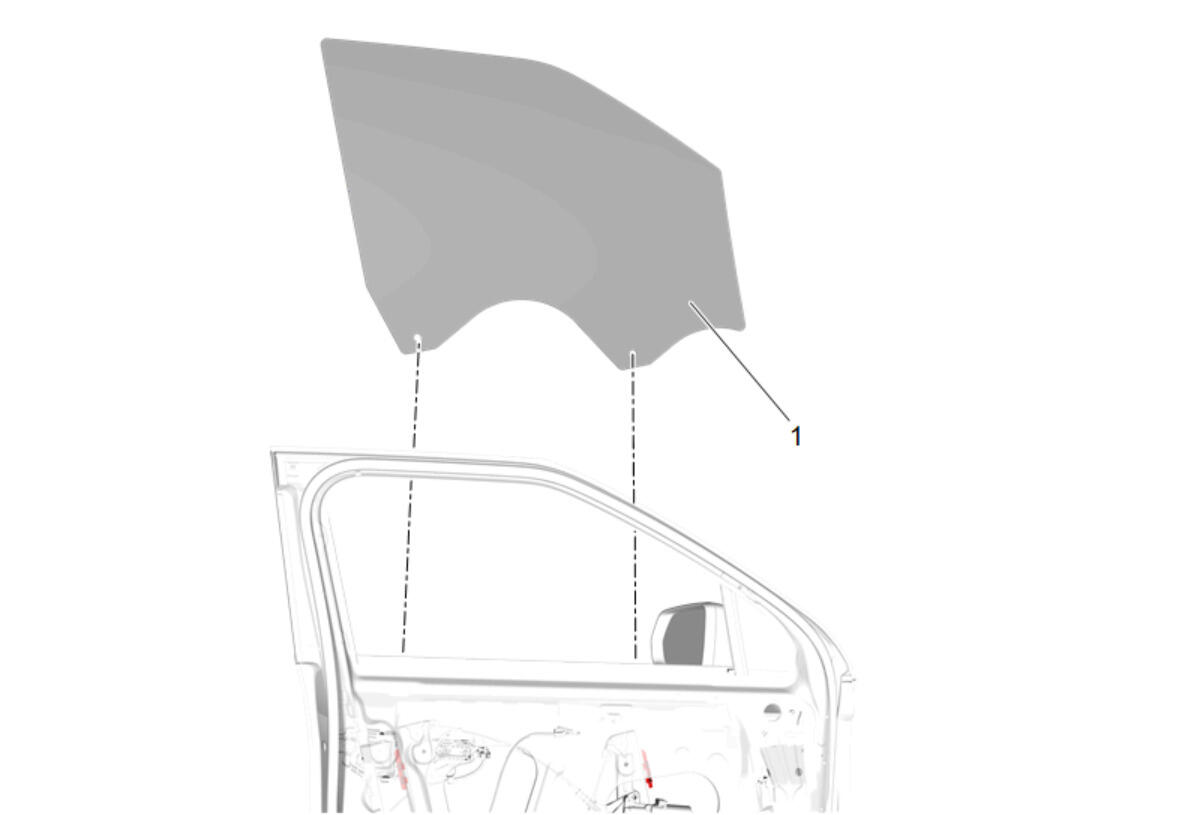

Place the front side door window (1) into the door frame.
- Place the window in the full up position and tape in place. (1)

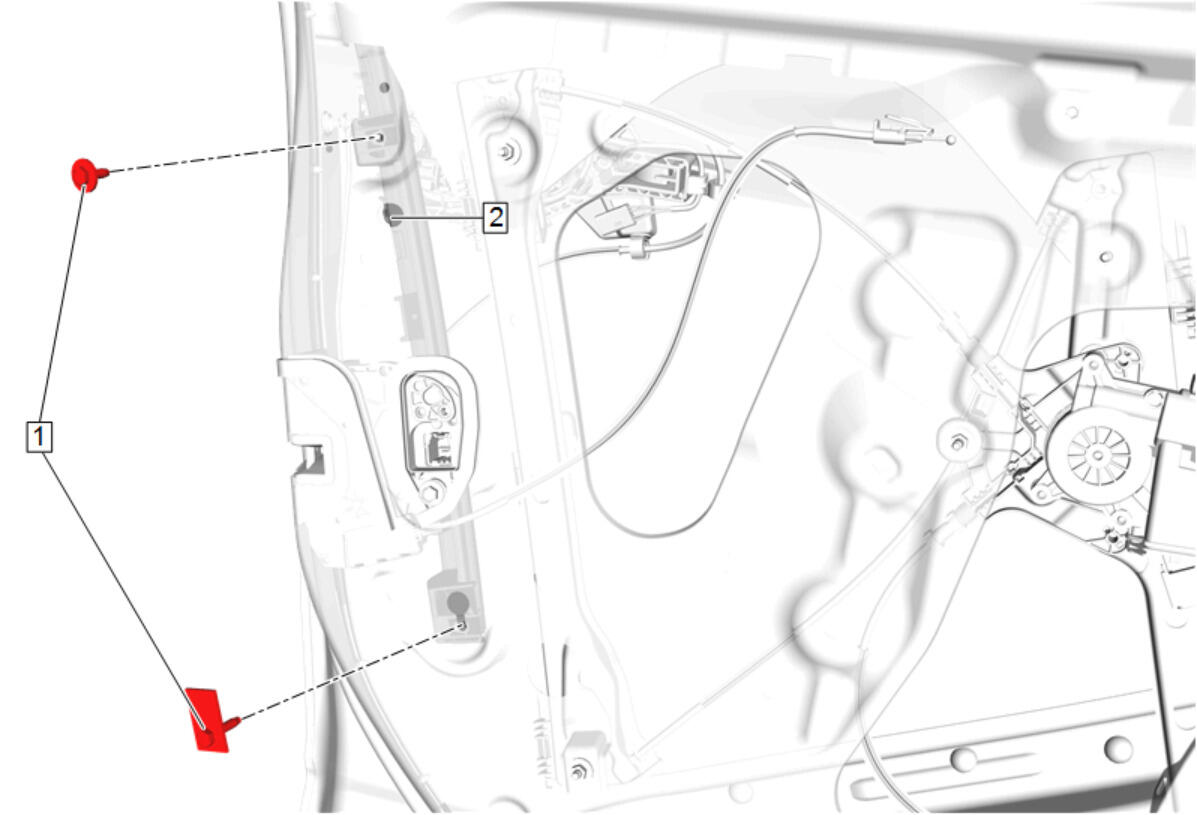

Front Side Door Window Channel Retainer (2) - Install - Front Side Door Window Channel Retainer Replacement
Place the window regulator in the full up position.
- Remove the tape holding the front side door window in the full up position.

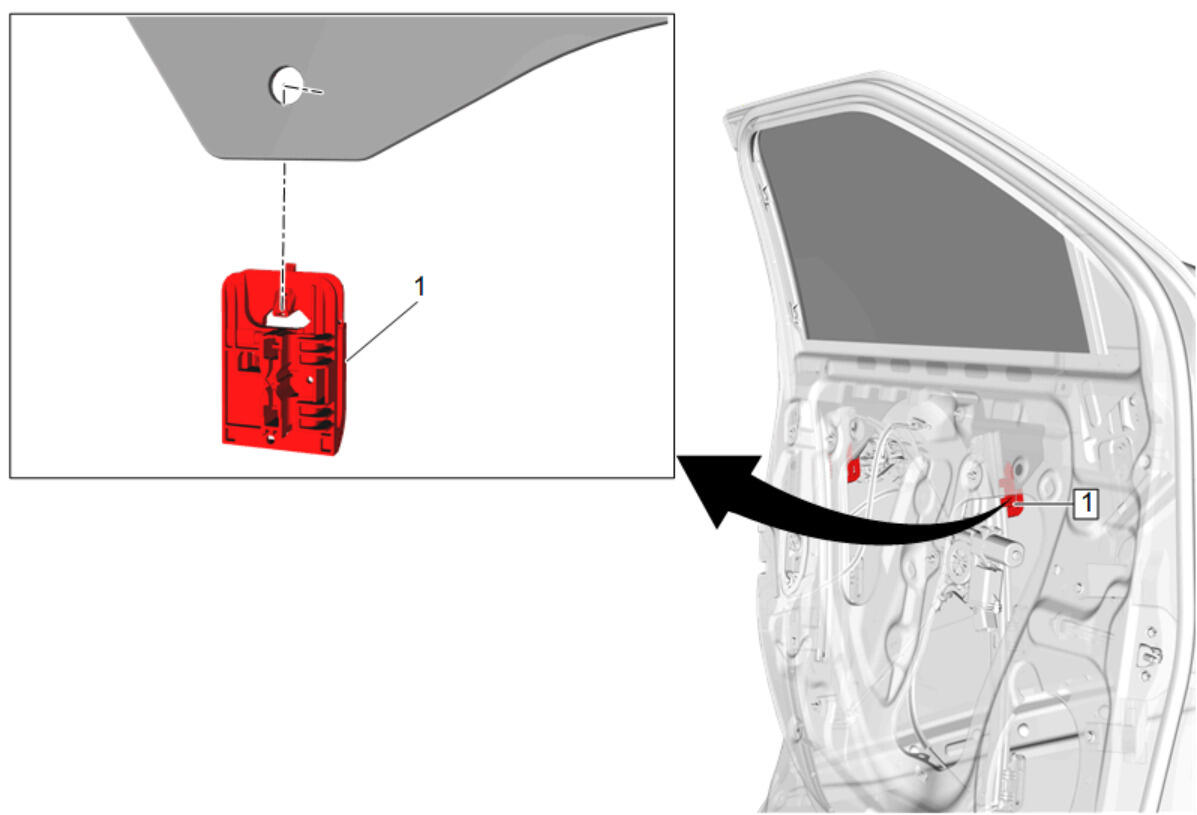

- Front Side Door Window Regulator Sash Retainer (1) - Install [2x]

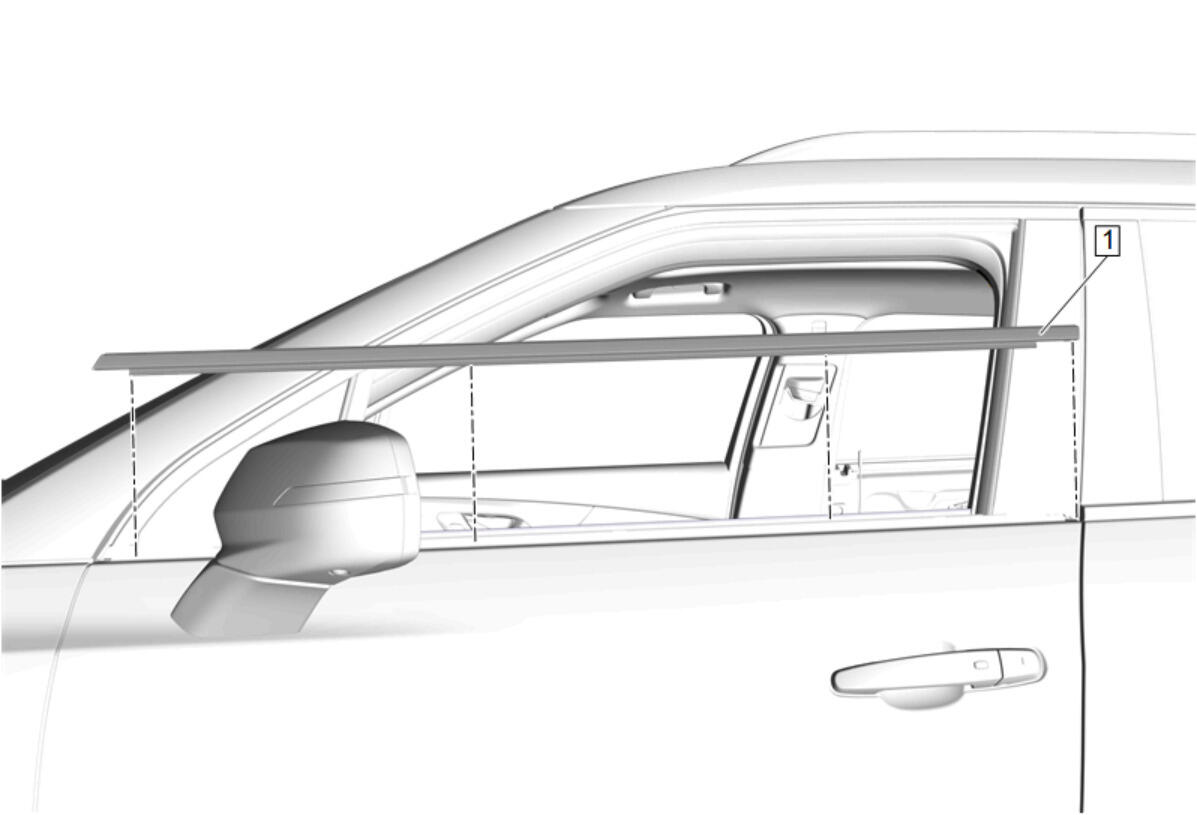

Front Side Door Window Belt Reveal Molding (1) - Install - Front Side Door Window Belt Reveal Molding Replacement

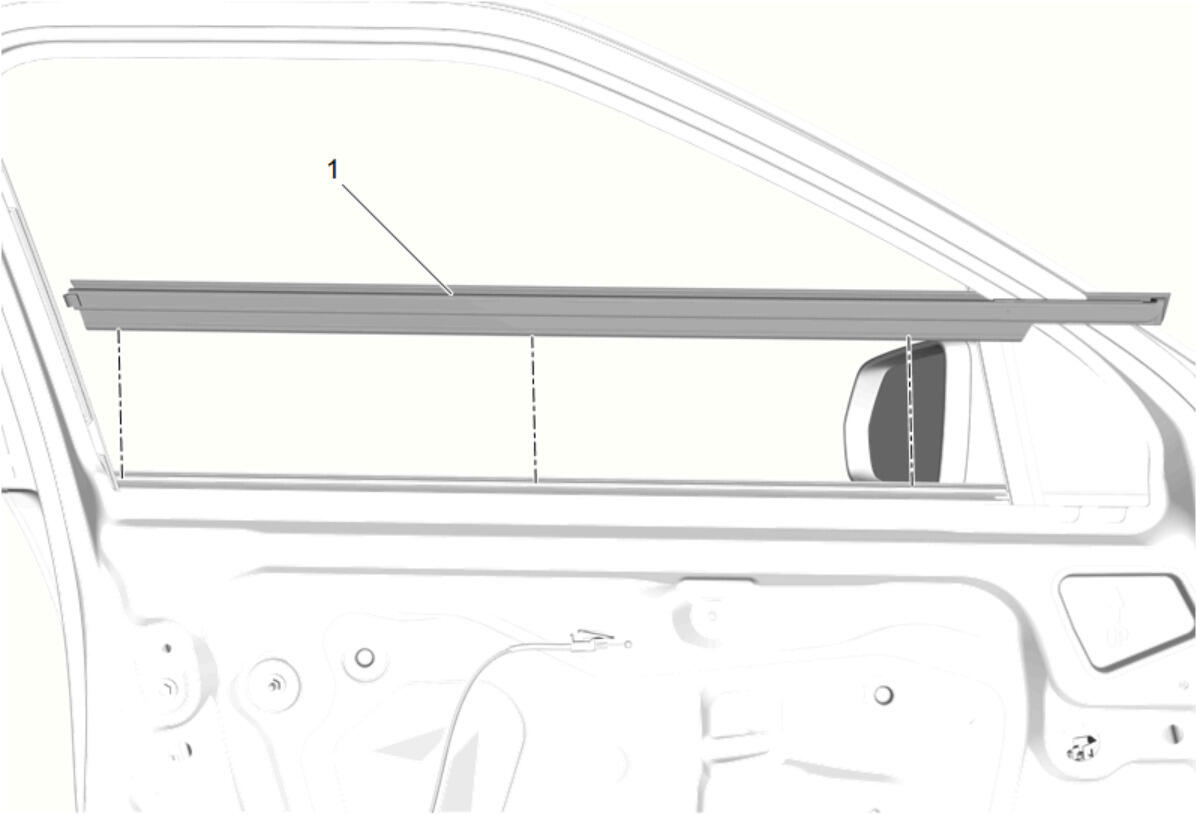

Front Side Door Window Inner Sealing Strip (1) - Install - Front Side Door Window Inner Sealing Strip Replacement
- Front Side Door Window Garnish Molding - Install - Front Side Door Window Garnish Molding Replacement
- Front Side Door Water Deflector - Install - Front Side Door Water Deflector Replacement
- Ensure the window system operates properly.
