Front Side Door Window Channel Front Retainer Replacement

Courtesy of GENERAL MOTORS COMPANY

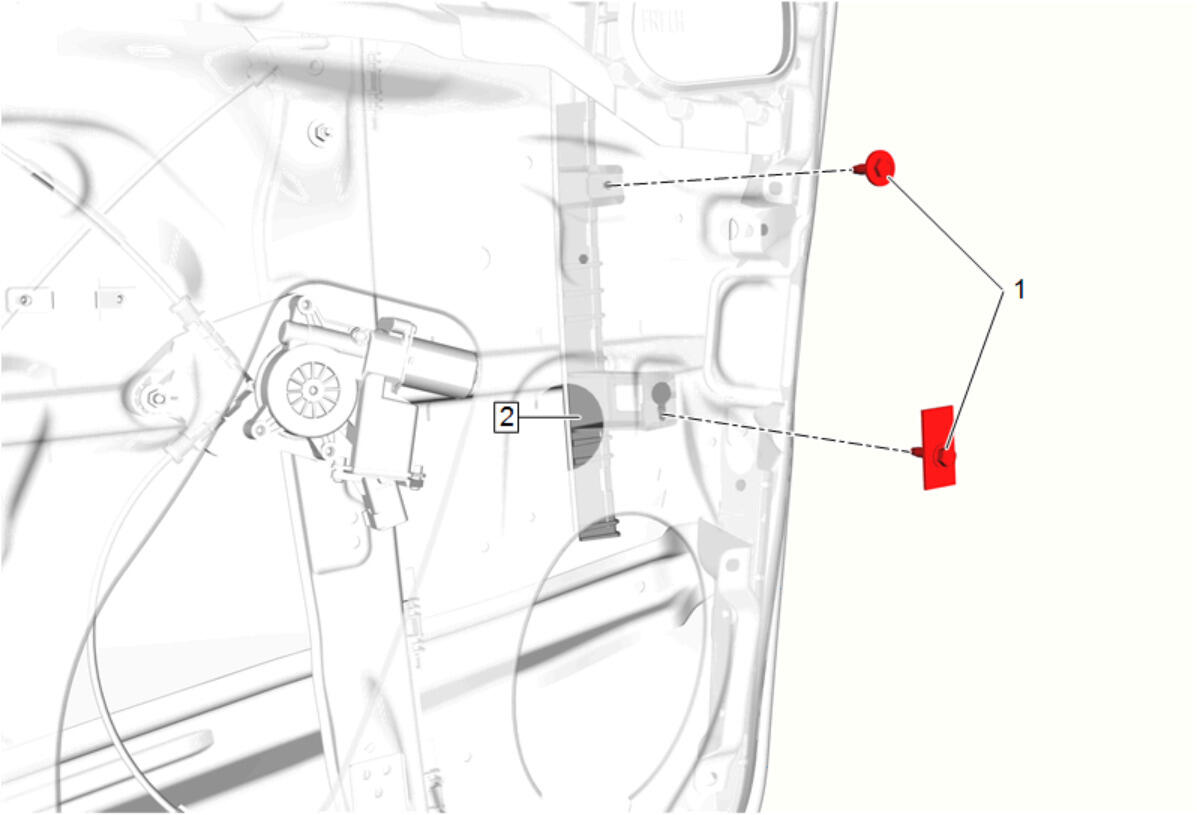

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . WARNING: Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury. Preliminary Procedures Front Side Door Water Deflector Replacement Radio Front Side Door Speaker Replacement
1	Front Side Door Window Channel Front Retainer Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 11 N.m (97 lb in)
2	Front Side Door Window Channel Front Retainer

Callout

Component Name

WARNING:

Refer to Glass and Sheet Metal Handling Warning .

WARNING:

Disconnect the power window switch when working inside the door. When operated, the Express Up/Down Feature allows the door window to move very quickly, without stopping, which could cause personal injury.

Preliminary Procedures

Front Side Door Water Deflector Replacement
Radio Front Side Door Speaker Replacement

Front Side Door Window Channel Front Retainer Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
11 N.m (97 lb in)

Front Side Door Window Channel Front Retainer
