Liftgate Power Assist Actuator Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Liftgate Lower Trim Finish Panel Replacement Quarter Window Trim Finish Panel Replacement
1	Liftgate Power Assist Actuator WARNING: When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury. Procedure Disconnect the electrical connector. Release the strut clips. Ensure the clip is fully seated when rod is reinstalled. If clip cannot be fully seated, a new rod should be installed. Perform the necessary programming and setup procedure: Liftgate Calibration

Callout

Component Name

Preliminary Procedures

Liftgate Lower Trim Finish Panel Replacement
Quarter Window Trim Finish Panel Replacement

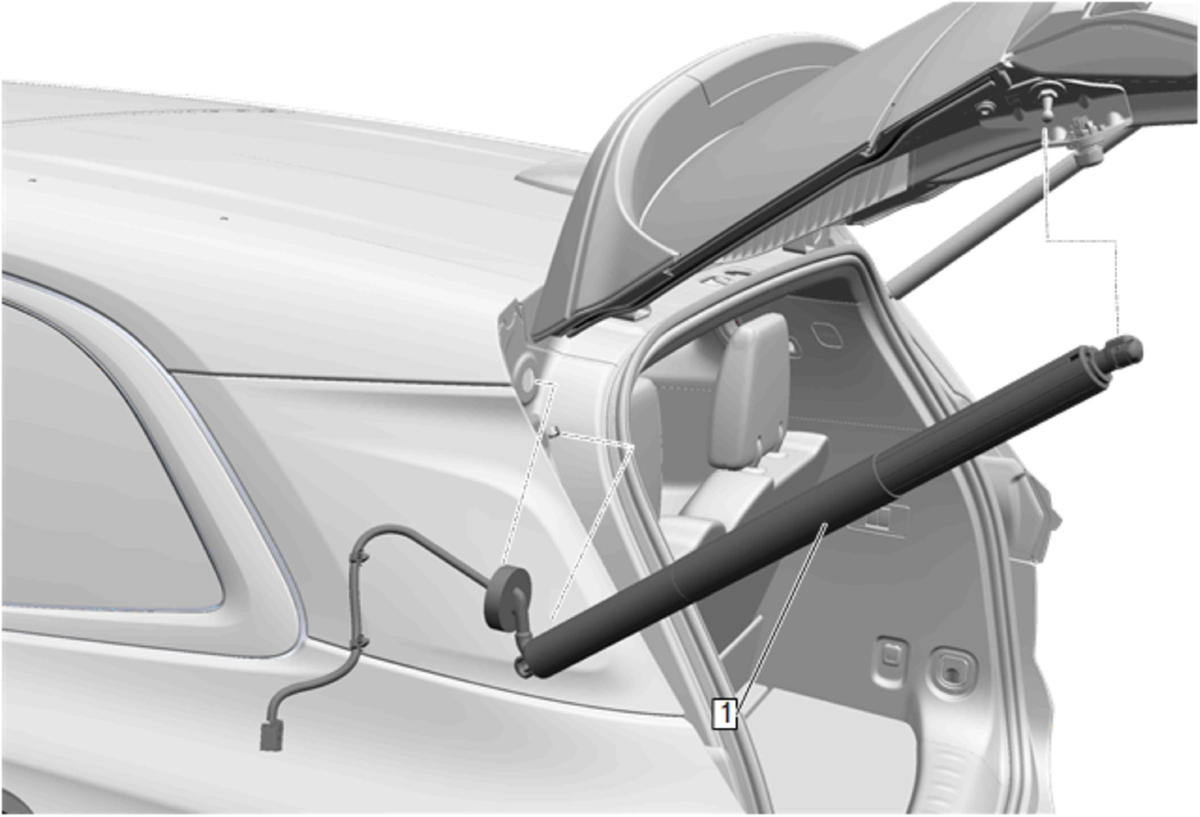

Liftgate Power Assist Actuator

WARNING:

When a lift gate hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.

Procedure

Disconnect the electrical connector.
Release the strut clips.
Ensure the clip is fully seated when rod is reinstalled. If clip cannot be fully seated, a new rod should be installed.
Perform the necessary programming and setup procedure: Liftgate Calibration
