Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Reset the front side door outside handle bracket counter balance as follows:

1. The outside door handle Can Not be installed until the counter balance is reset.
2. Grasp the front side door outside handle bracket (1) with one hand.

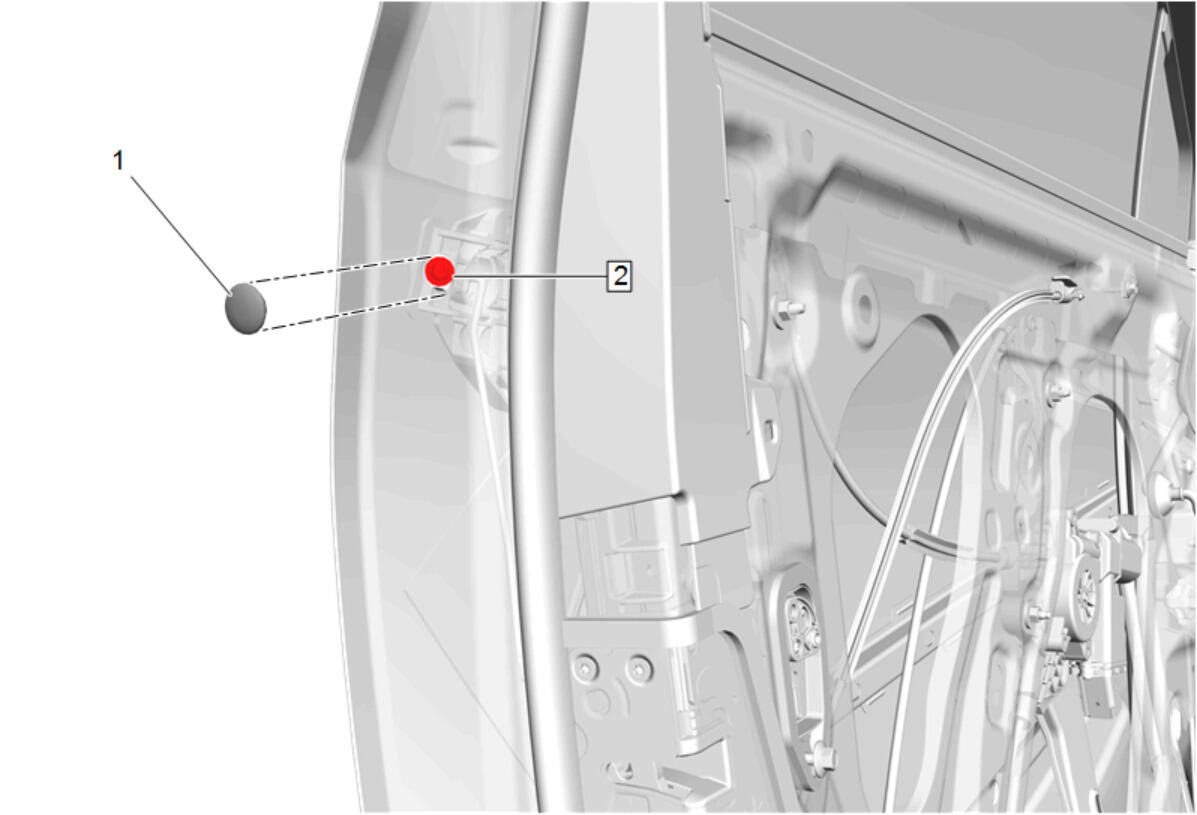

3. From the back side of the counter balance (2) push forward on the counter balance until it can be held in place using the bracket clip (3).

Courtesy of GENERAL MOTORS COMPANY

Raise the front side door outside handle bracket (1) up to the outside door opening.

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Outside Handle Bracket Screw (1) - Install and tighten 4.7 N.m (42 lb in)

Courtesy of GENERAL MOTORS COMPANY

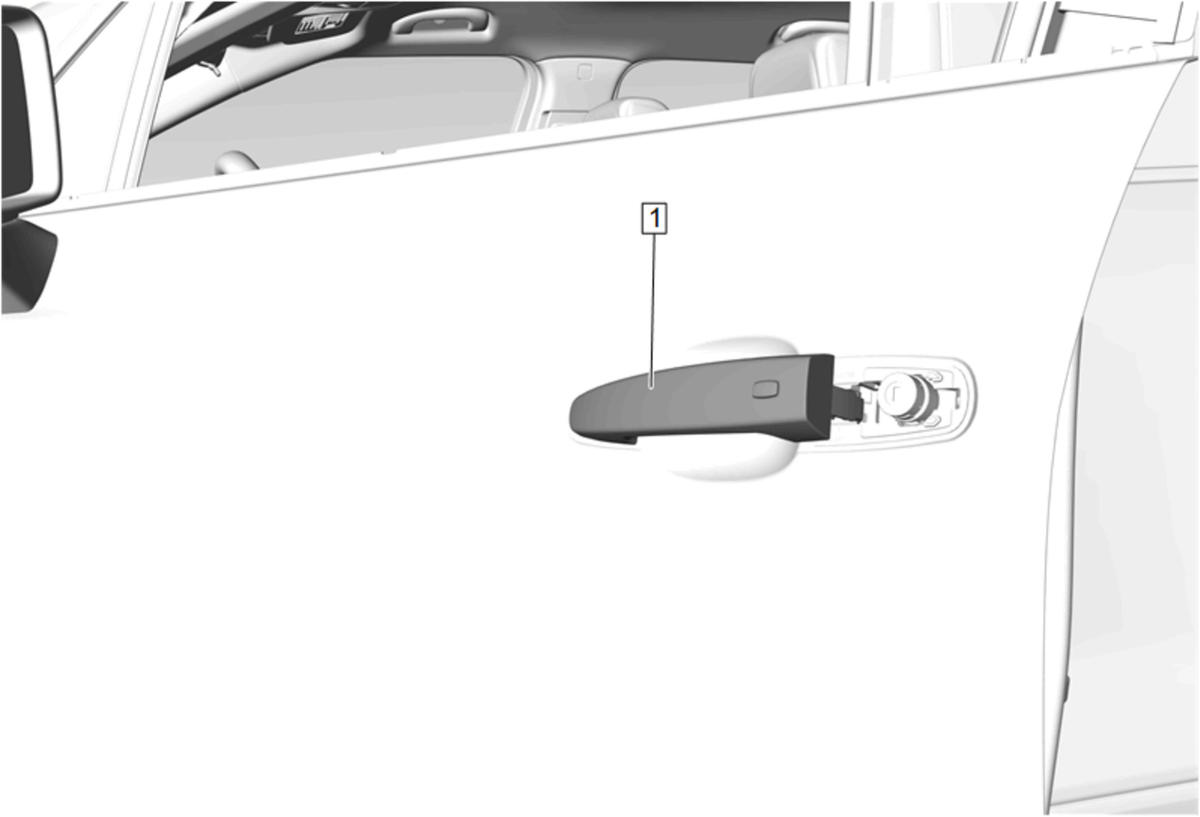

Install the front part of the front side door outside handle (1) into the front side door outside handle bracket.

Courtesy of GENERAL MOTORS COMPANY

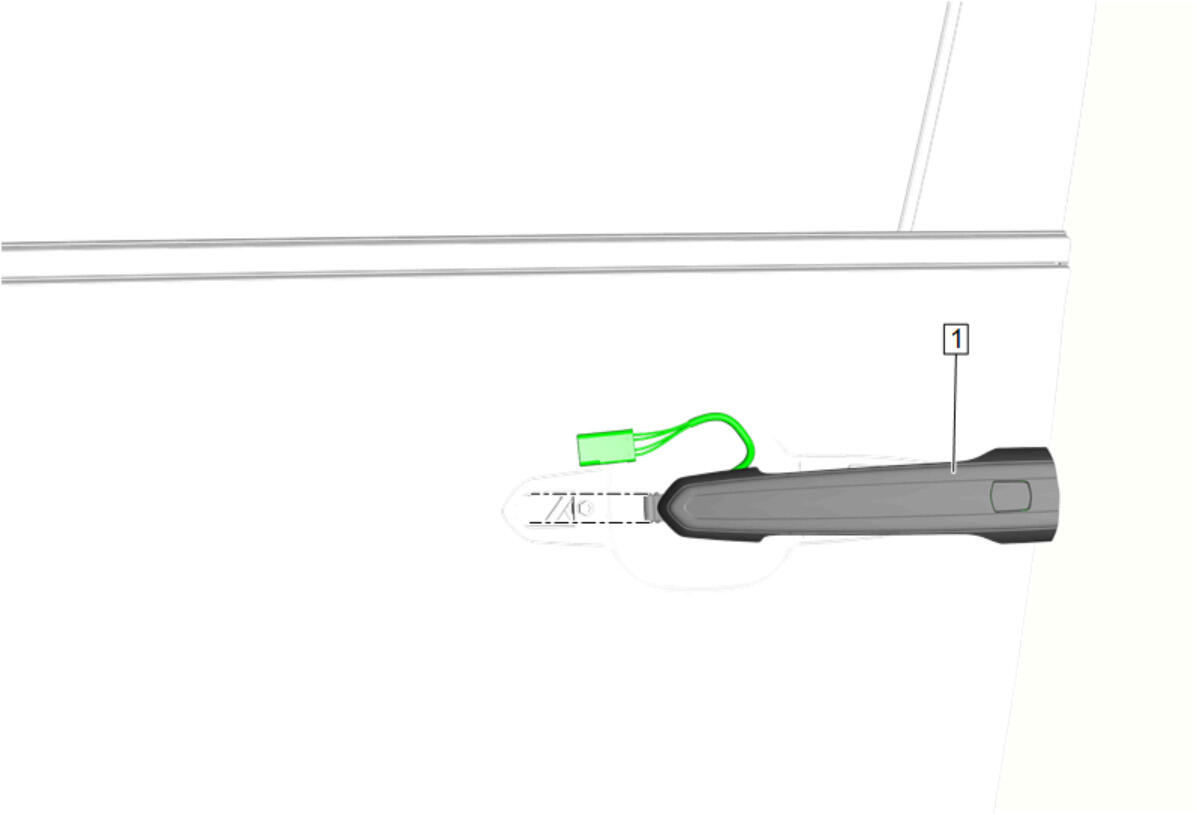

Install the rear part of the front side door outside handle (1) into the front side door outside handle bracket and slide the front side door outside handle forward.

Courtesy of GENERAL MOTORS COMPANY

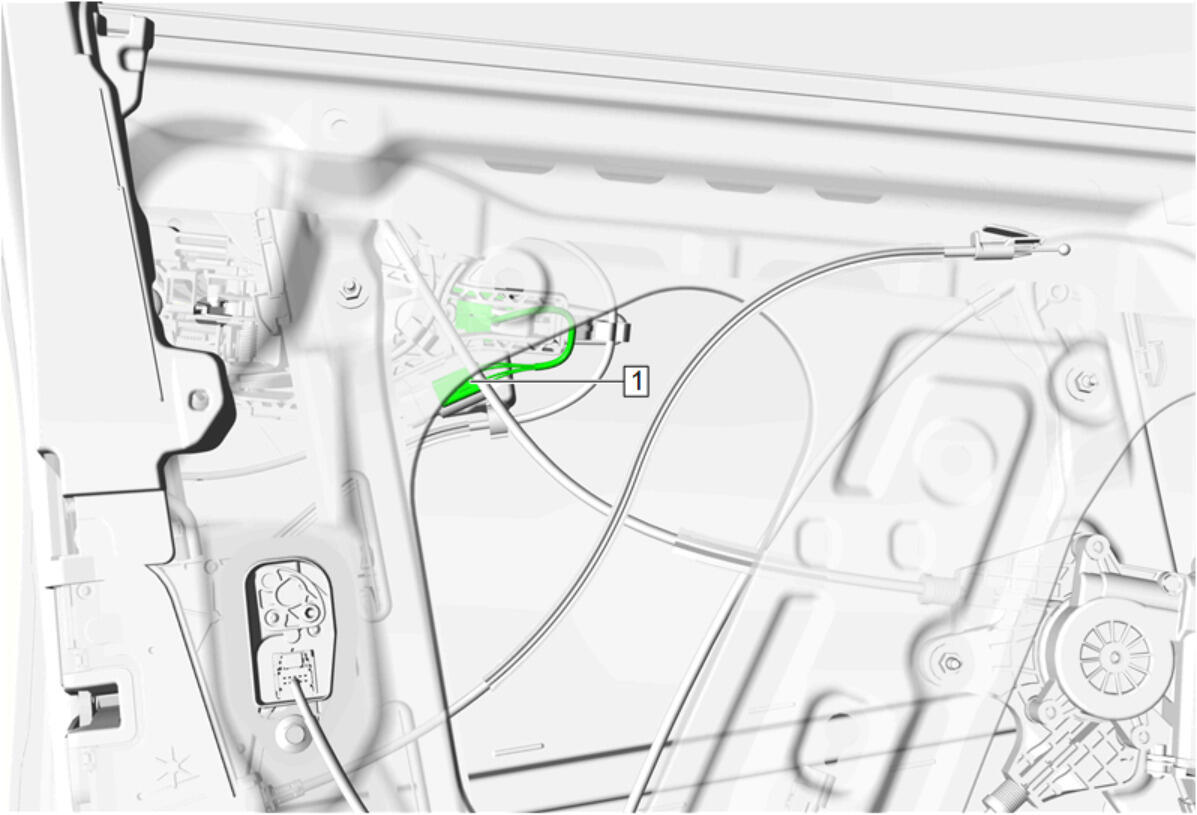

Connect the electrical connector. (1)

Courtesy of GENERAL MOTORS COMPANY

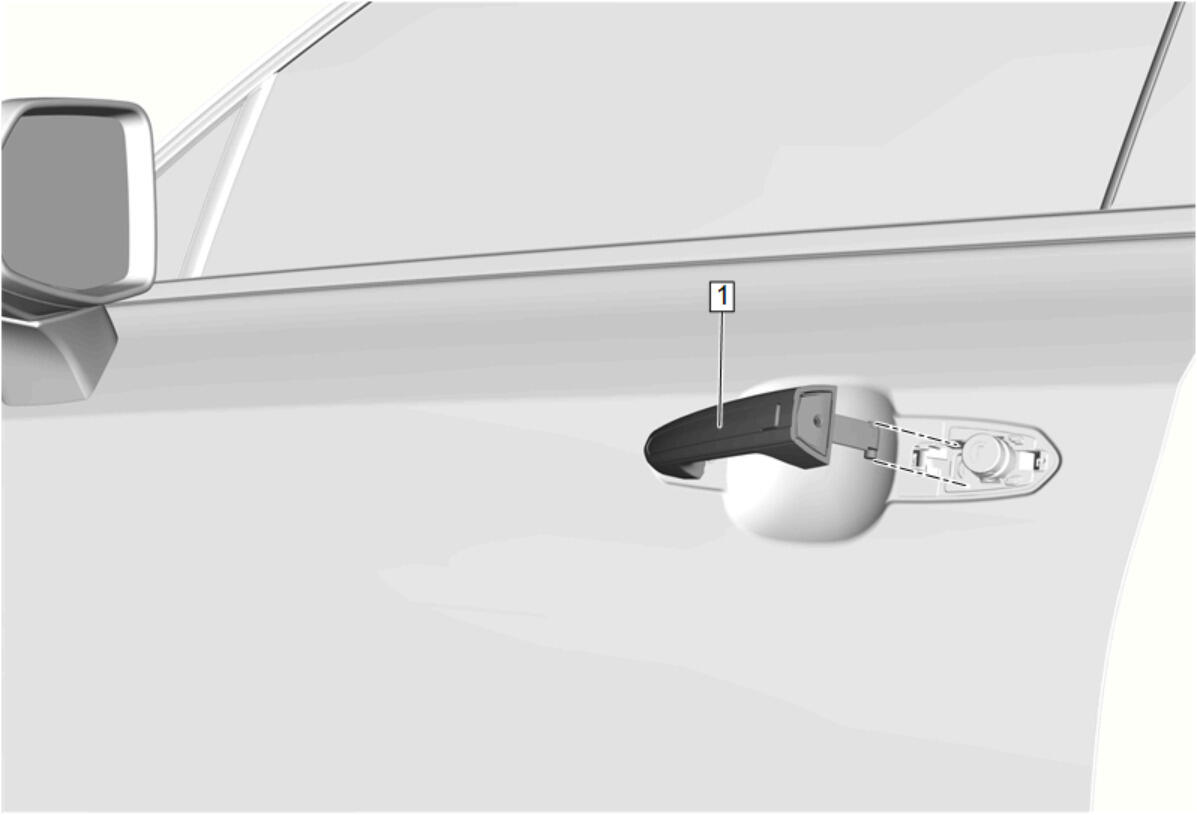

Pull the front side door outside handle (1) to the open position.

Courtesy of GENERAL MOTORS COMPANY

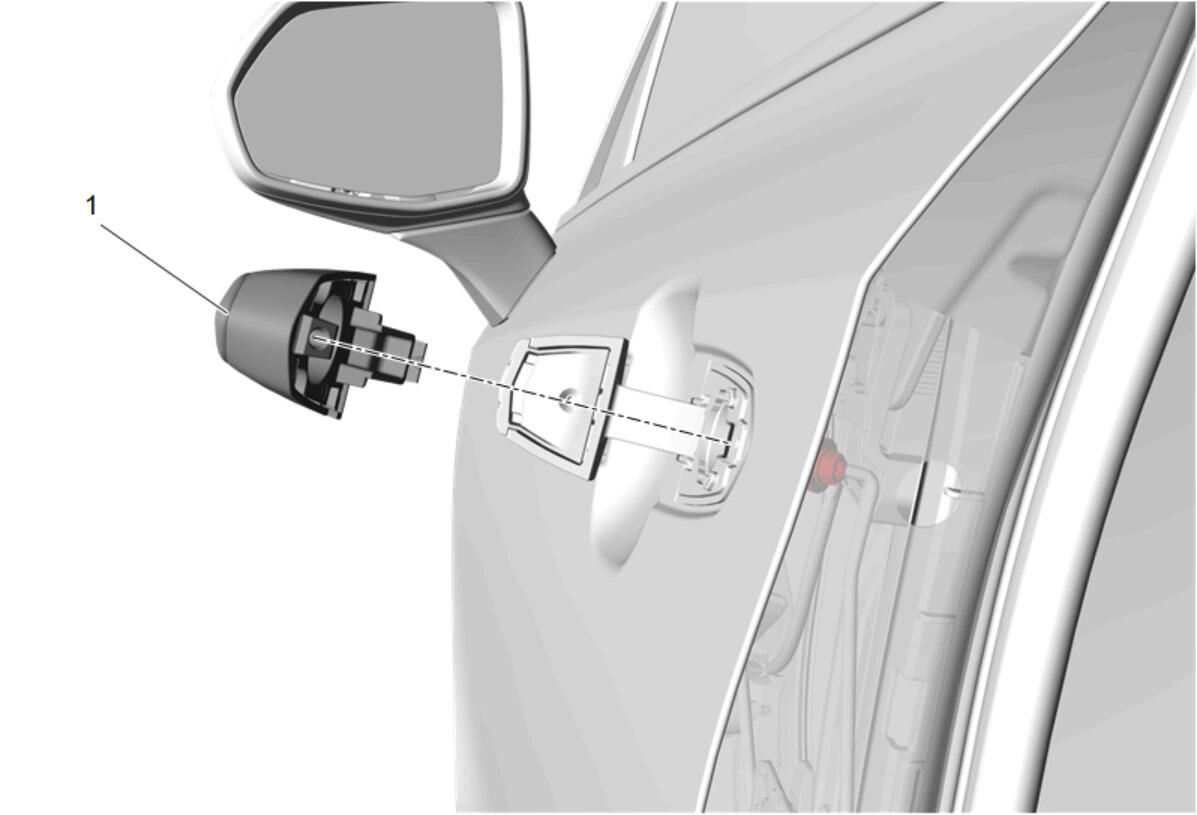

Front Side Door Lock Cylinder Opening Cover (1) - Install - Front Side Door Lock Cylinder Opening Cover Replacement

Courtesy of GENERAL MOTORS COMPANY

Front Side Door Lock Cylinder Opening Cover Screw (2) - Tighten 4.7 N.m (42 lb in)
