Accessory AC and DC Power Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

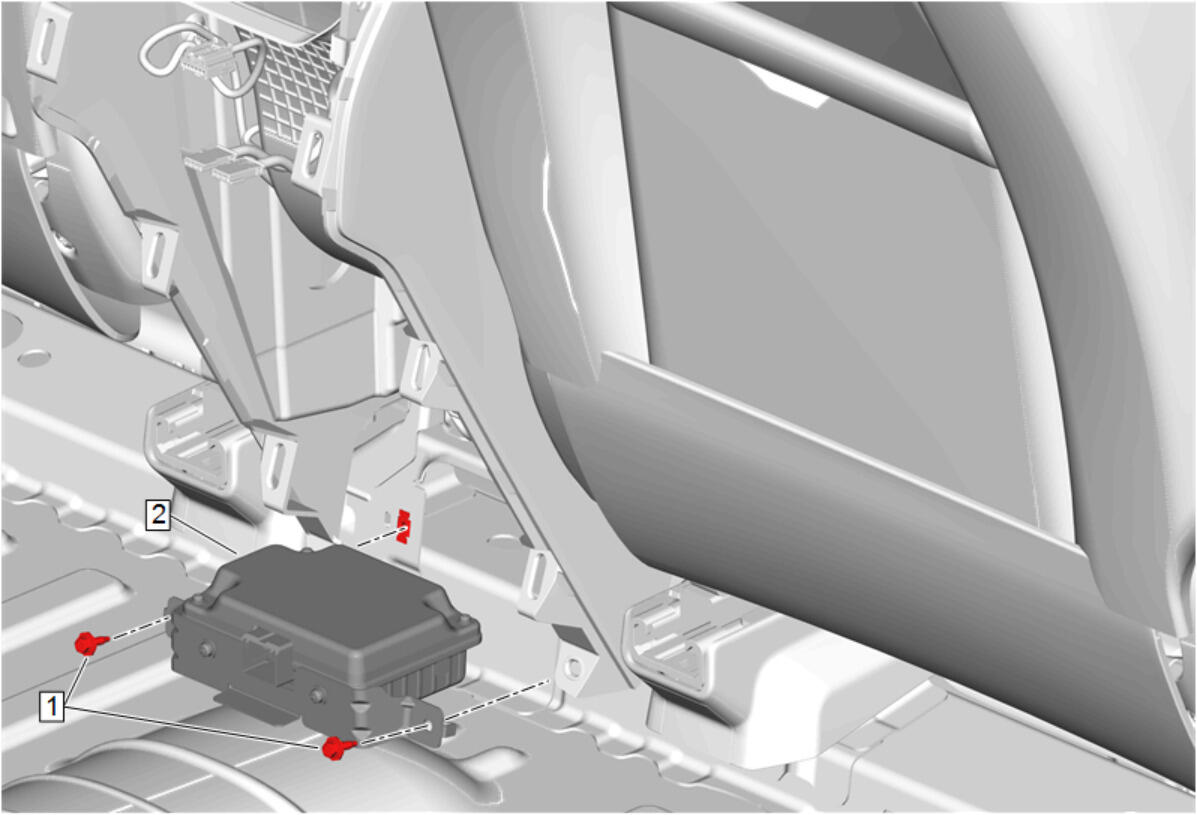

Callout	Component Name
Preliminary Procedure Front Floor Console Rear Trim Panel Replacement
1	Accessory AC and DC Power Control Module Bolt [2x] CAUTION: Fastener Caution Tighten 2.5 N.m (22 lb in)
2	Accessory AC and DC Power Control Module Procedure Reposition the rear floor panel carpet as necessary Disconnect the electrical connectors.

Callout

Component Name

Accessory AC and DC Power Control Module Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Accessory AC and DC Power Control Module

Procedure
