Front of Engine Components (2 of 2) (LSY)

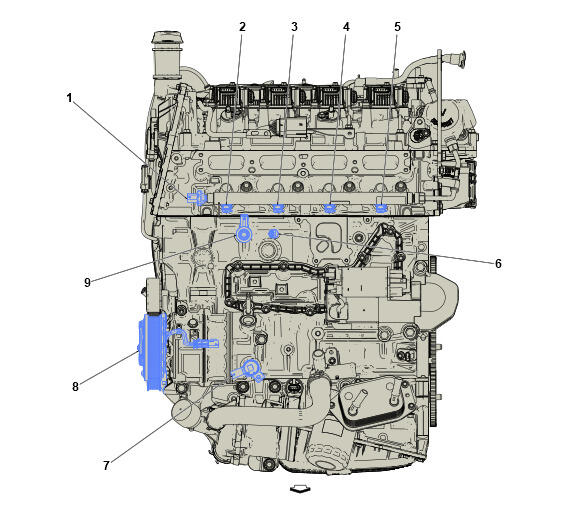

GM5240941Courtesy of GENERAL MOTORS COMPANY
Front of Engine Components (2 of 2) (LSY)

Component Name Callout
B310 Fuel Pressure/Temperature Sensor B310 Fuel Pressure/Temperature Sensor (LSY) 1
Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LSY) 2
Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LSY) 3
Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LSY) 4
Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LSY) 5
B34F Engine Coolant Temperature Sensor 6 (LSY) B34F Engine Coolant Temperature Sensor 6 (LSY) 6
Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve 7
Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch 8
B68A Knock Sensor 1 B68A Knock Sensor 1 (LSY) 9
