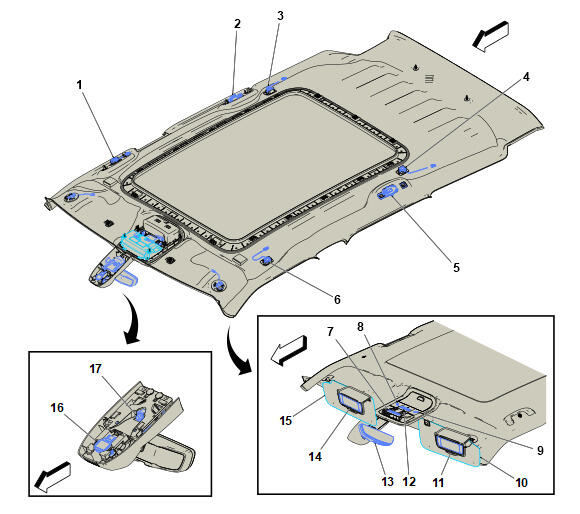

Headliner Components
Headliner Components
| Component Name | Callout |
|---|---|
| B77RF Radio Volume Compensator Interior Noise Microphone - Right Front B77RF Radio Volume Compensator Interior Noise Microphone - Right Front | 1 |
| E37J Dome/Reading Lamps - Right Roof Rail E37J Dome/Reading Lamps - Right Roof Rail | 2 |
| B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear B77RR Radio Volume Compensator Interior Noise Microphone - Right Rear | 3 |
| B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear B77LR Radio Volume Compensator Interior Noise Microphone - Left Rear | 4 |
| E37H Dome/Reading Lamps - Left Roof Rail E37H Dome/Reading Lamps - Left Roof Rail | 5 |
| B77LF Radio Volume Compensator Interior Noise Microphone - Left Front B77LF Radio Volume Compensator Interior Noise Microphone - Left Front | 6 |
| A98 Front Overhead Console Assembly A98 Front Overhead Console Assembly | 7 |
| B24LF Mobile Telephone Microphone - Left Front B24LF Mobile Telephone Microphone - Left Front | 8 |
| B24RF Mobile Telephone Microphone - Right Front (IOU) B24RF Mobile Telephone Microphone - Right Front (IOU) | 9 |
| A3R Sunshade - Right A3R Sunshade - Right | 10 |
| E31R Sunshade Mirror Lamp - Right | 11 |
| S25 Garage Door Opener (UG1) S25 Garage Door Opener (UG1) | 12 |
| A10 Inside Rearview Mirror (DD8/DRZ) A10 Inside Rearview Mirror X1 (DD8/DRZ) , or A10 Inside Rearview Mirror X2 (DRZ) | 13 |
| E31L Sunshade Mirror Lamp - Left | 14 |
| A3L Sunshade - Left A3L Sunshade - Left | 15 |
| B160 Windshield Temperature and Inside Moisture Sensor B160 Windshield Temperature and Inside Moisture Sensor | 16 |
| B174W Frontview Camera - Windshield (UEU/UGN) B174W Frontview Camera - Windshield (UEU/UGN) | 17 |
