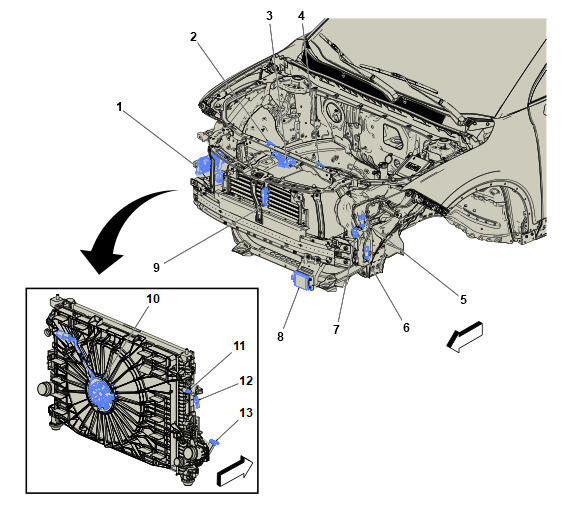

Front of Engine Compartment Components
Front of Engine Compartment Components
| Component Name | Callout |
|---|---|
| P13 Horn Assembly P13 Horn Assembly | 1 |
| B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right | 2 |
| B55 Engine Hood Switch B55 Engine Hood Switch | 3 |
| B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left | 4 |
| G19 Rear Window Washer Pump G19 Rear Window Washer Pump | 5 |
| G24 Windshield Washer Pump G24 Windshield Washer Pump | 6 |
| B118B Windshield Washer Fluid Level Switch B118B Windshield Washer Fluid Level Switch | 7 |
| B233B Radar Sensor Module - Long Range (UGN) B233B Radar Sensor Module - Long Range (UGN) | 8 |
| M96A Active Grille Air Shutter 1 Actuator M96A Active Grille Air Shutter 1 Actuator | 9 |
| G10 Cooling Fan Motor G10 Cooling Fan Motor | 10 |
| B203 Radiator Coolant Temperature Sensor (LSY) B203 Radiator Coolant Temperature Sensor (LSY) | 11 |
| B1 A/C Refrigerant Pressure Sensor B1 A/C Refrigerant Pressure Sensor | 12 |
| B111 Turbocharger Boost Sensor (LSY) B111 Turbocharger Boost Sensor (LSY) | 13 |
