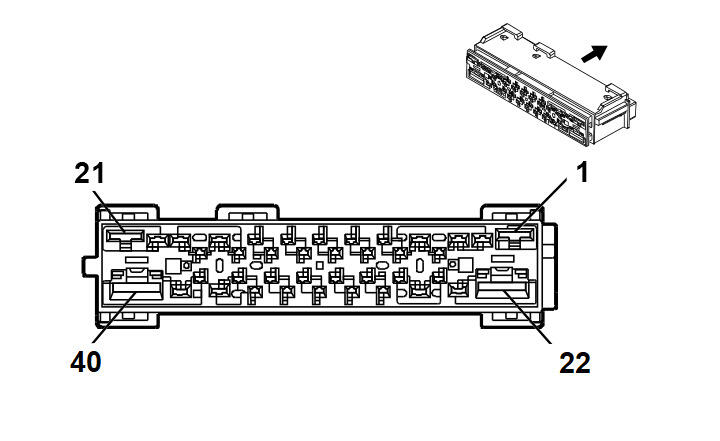

X50A Fuse Block - Underhood X5
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 23161964
- Service Connector: 19333355
- Description: 40-Way F 1.5, 2.8, 6.3, 9.5 Kaizen Series (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575839 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
C |
A |
| II |
13575839 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
E |
A |
| III |
13575850 |
J-35616-14 (GN) |
J-38125-557 |
Not Available |
Not Available |
Not Available |
Not Available |
| IV |
13578892 |
J-35616-2A (GY) |
J-38125-11A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 - 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
1 |
YE |
312 |
Right Headlamp Low Beam Control |
I |
- |
| 6 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
| 13 |
1.5 |
BN/GY |
29 |
Horn Control |
IV |
- |
| 14 |
- |
- |
- |
Not Occupied |
- |
- |
| 15 |
0.75 |
BN/VT |
2234 |
Front Fog Lamp Control 2 |
III |
T3U |
| 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
1 |
YE |
712 |
Left Headlamp Low Beam Control |
I |
- |
| 18 - 19 |
- |
- |
- |
Not Occupied |
- |
- |
| 20 |
0.75 |
GY/VT |
228 |
Windshield Washer Pump Control |
II |
- |
| 21 - 31 |
- |
- |
- |
Not Occupied |
- |
- |
| 32 |
0.5 |
VT/GY |
539 |
Run/Crank Ignition 1 Voltage 5 |
III |
TR6 |
| 33 - 38 |
- |
- |
- |
Not Occupied |
- |
- |
| 39 |
0.75 |
BU/VT |
392 |
Rear Window Washer Pump Control |
II |
- |
| 40 |
- |
- |
- |
Not Occupied |
- |
- |
