Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

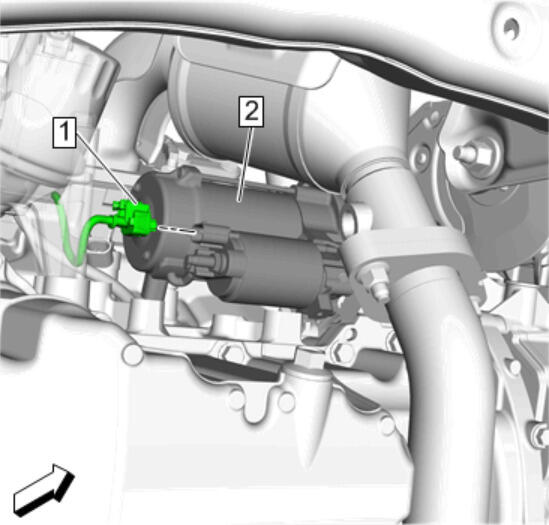

Electrical Connector (1) - Connect
Starter (2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution

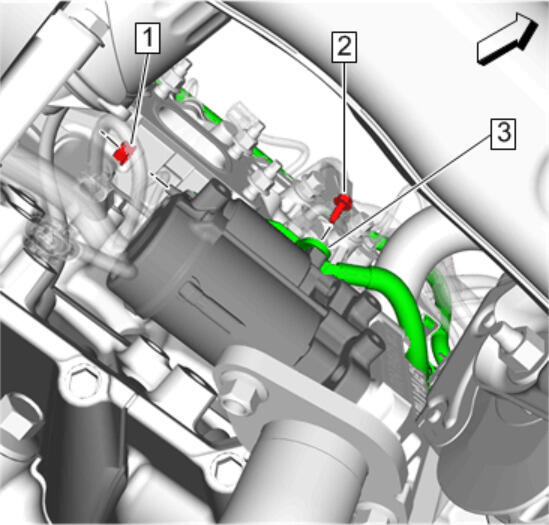

Starter Mounting Bolt (1) Install and tighten 58 N.m (43 lb ft)
Starter Mounting Bolt (2) - Install and tighten 58 N.m (43 lb ft)
Courtesy of GENERAL MOTORS COMPANY

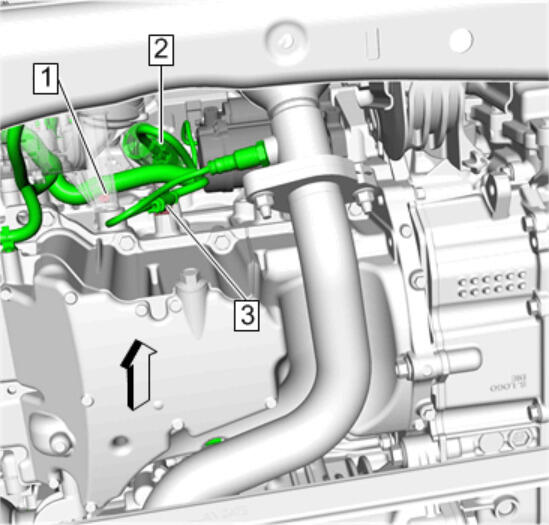

Electrical Connector (2) - Connect
Retainer (1) - Engage
Electrical Connector Retainer (3) - Engage
Courtesy of GENERAL MOTORS COMPANY

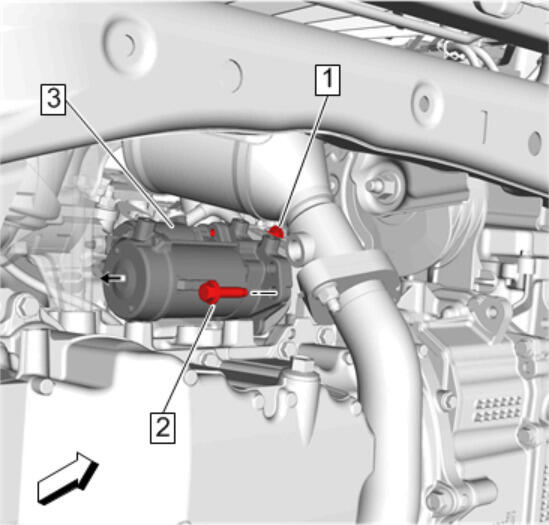

Battery Positive Cable Nut (1) @Starter Solenoid - Install and tighten 12.5 N.m (111 lb in)
Battery Positive and Negative Cable Conduit Bolt (2) - Install and tighten 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Catalytic converter removed for graphic clarity.

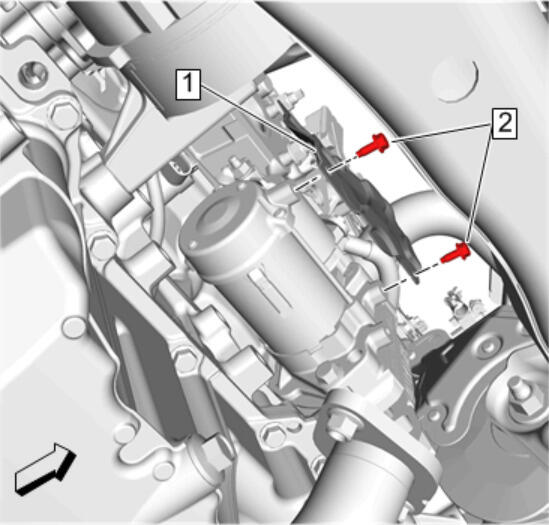

Starter Heat Shield (1) - Install
Starter Heat Shield Fastener (2) - Install and tighten [2x] 9 N.m (80 lb in)
Lower the vehicle.
Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (KL9)
