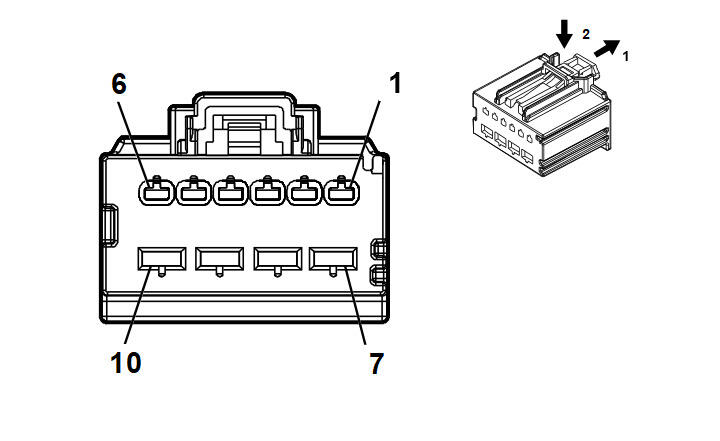

K99 Steering Column Position Control Module X1
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 13525907
- Service Connector: 13525907
- Description: 10-Way F 1.5, 2.8 Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575809 |
J-35616-14 (GN) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| II |
13580025 |
J-35616-4A (PU) |
J-38125-11A |
7116-4111-02 |
Yazaki 9 |
C |
A |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
BK |
1550 |
Ground 15 |
I |
- |
| 2 |
0.35 |
GN/WH |
7530 |
Driver Seat Memory Control Module LIN Bus 1 |
I |
- |
| 3 |
0.35 |
GN/BN |
2095 |
Steering Column Tilt and Telescope Switch Rearward Signal |
I |
- |
| 4 |
0.35 |
BN/GY |
2096 |
Steering Column Tilt and Telescope Switch Up Signal |
I |
- |
| 5 |
0.35 |
YE/BN |
2097 |
Steering Column Tilt and Telescope Switch Down Signal |
I |
- |
| 6 |
0.35 |
BU/YE |
2094 |
Steering Column Tilt and Telescope Switch Forward Signal |
I |
- |
| 7 |
1 |
RD/BN |
3640 |
Secondary Fused Battery Positive Voltage 36 |
II |
- |
| 8 |
1 |
BK |
1750 |
Ground 17 |
II |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
