Rear Seat Heater Control Module Replacement

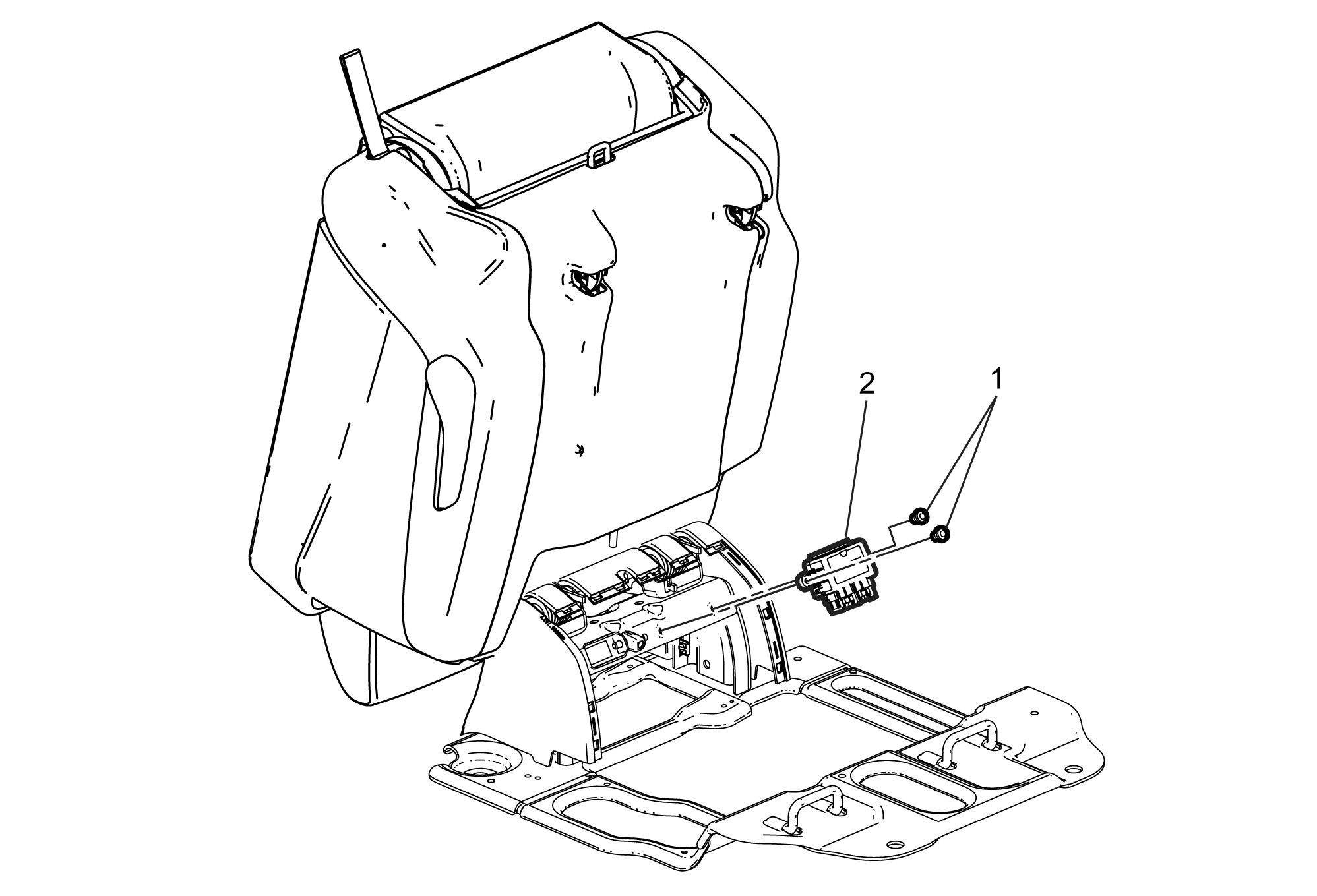

GM3639015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear seat riser opening finish cover. Refer to Rear Seat Riser Opening Finish Cover Replacement .
1 Rear Seat Heater Control Module Fastener (Qty: 2)
CAUTION:

Refer to Fastener Caution .


Tighten
2 N.m (18 lb in)
2 Rear Seat Heater Control Module
Procedure
Disconnect the electrical connectors.
