Electronic Suspension Front Position Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

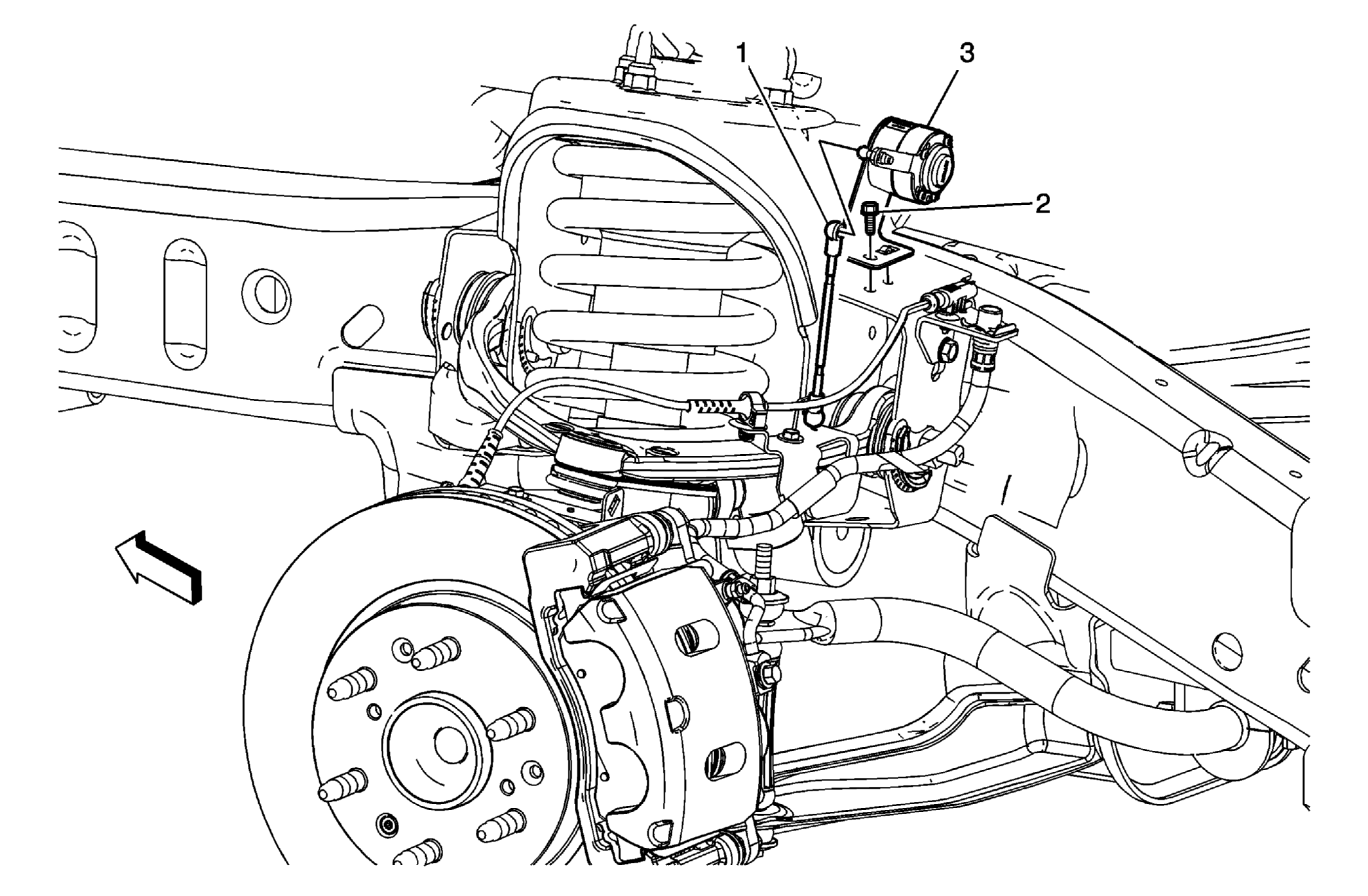

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation .
1	Front Position Sensor Link Procedure Disconnect the front position sensor link from the sensor ball stud.
2	Front Position Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the bolt from the sensor. Tighten 12 N.m (106 lb in)
3	Front Position Sensor Procedures Disconnect the electrical connection. Program the electronic suspension control module. Control Module References .
