Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

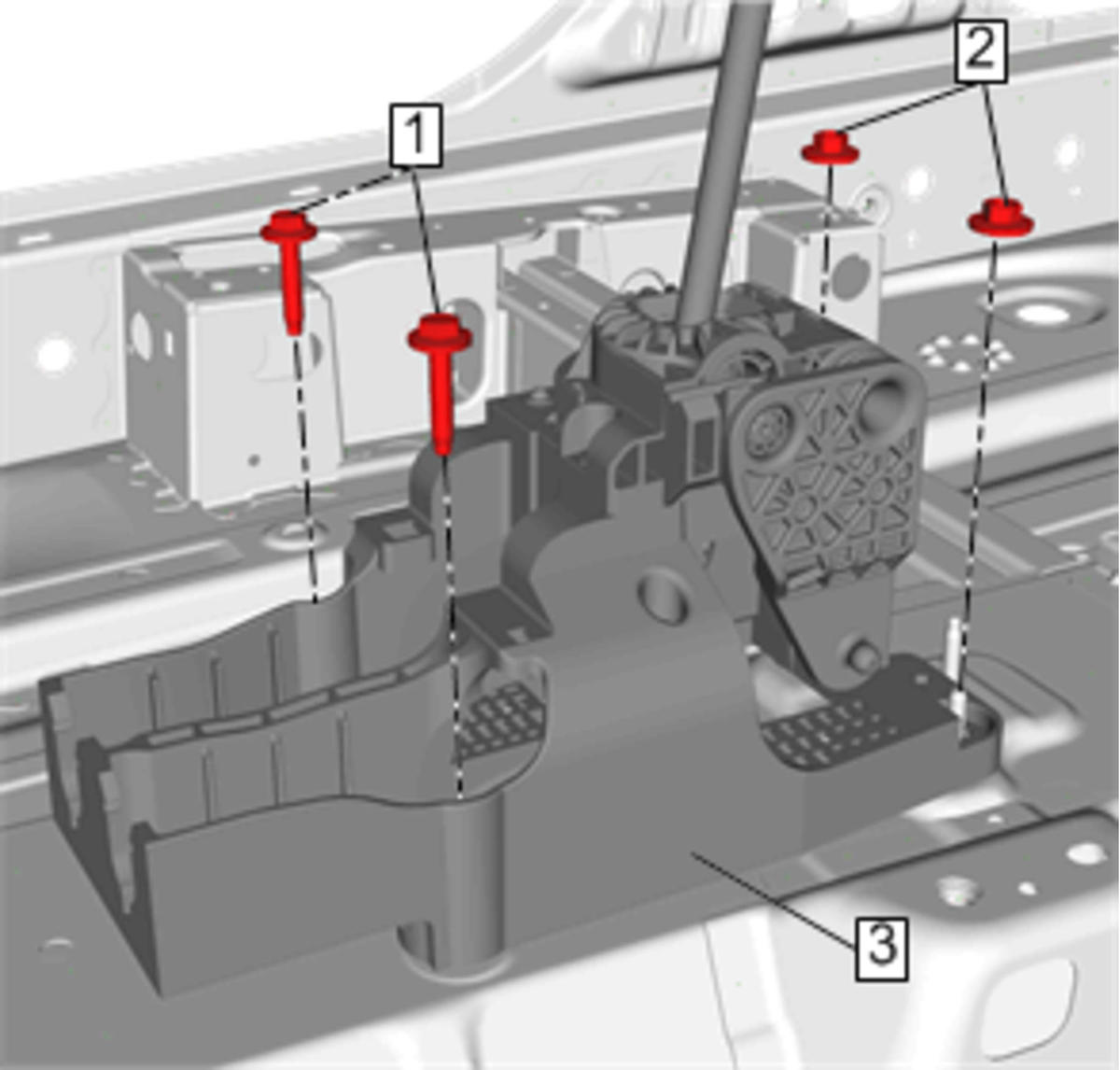

Position the transmission control (3) in the vehicle.
Install the transmission control bolts (1) and nuts (2), and tighten to 9 N.m (80 lb in).
Courtesy of GENERAL MOTORS COMPANY

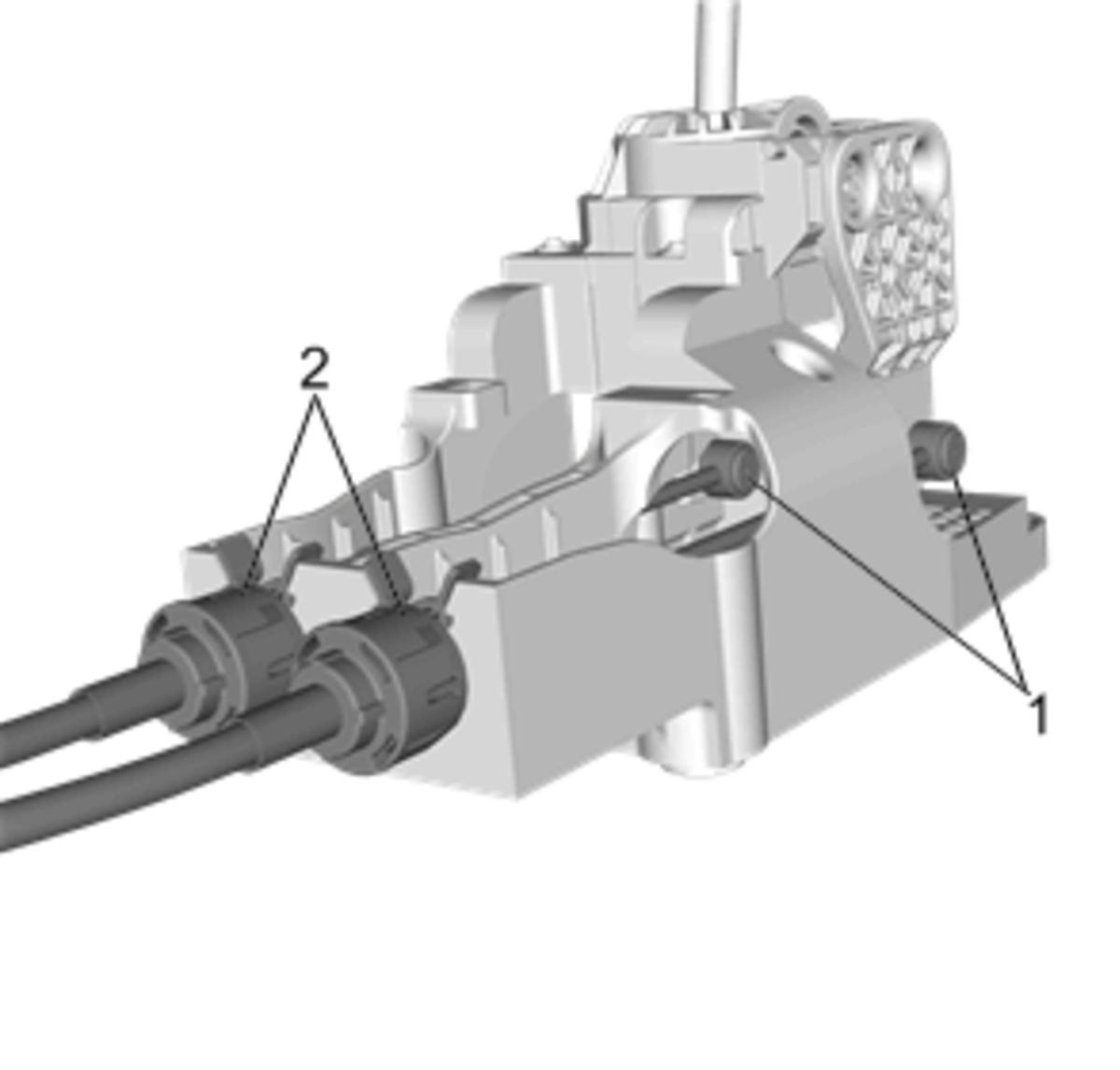

Install the shift lever and selector lever cable (2) to the transmission control housing.
Connect the shift lever and selector lever cable (1) to the transmission control lever.
Install the front floor console. Refer to Front Floor Console Replacement .
