Manifold Absolute Pressure Sensor Replacement

Courtesy of GENERAL MOTORS COMPANY

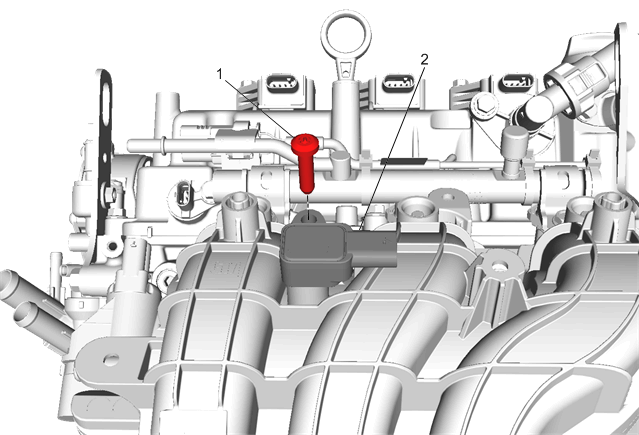

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection Disconnect the manifold absolute pressure sensor connector.
1	Manifold Absolute Pressure Sensor Bolt CAUTION: Refer to Fastener Caution . Procedure Remove the manifold absolute pressure sensor bolt. Tighten 5 N.m (44 lb in)
2	Manifold Absolute Pressure Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection
Disconnect the manifold absolute pressure sensor connector.

Manifold Absolute Pressure Sensor Bolt

CAUTION:

Procedure
Remove the manifold absolute pressure sensor bolt.
Tighten
5 N.m (44 lb in)

Manifold Absolute Pressure Sensor
