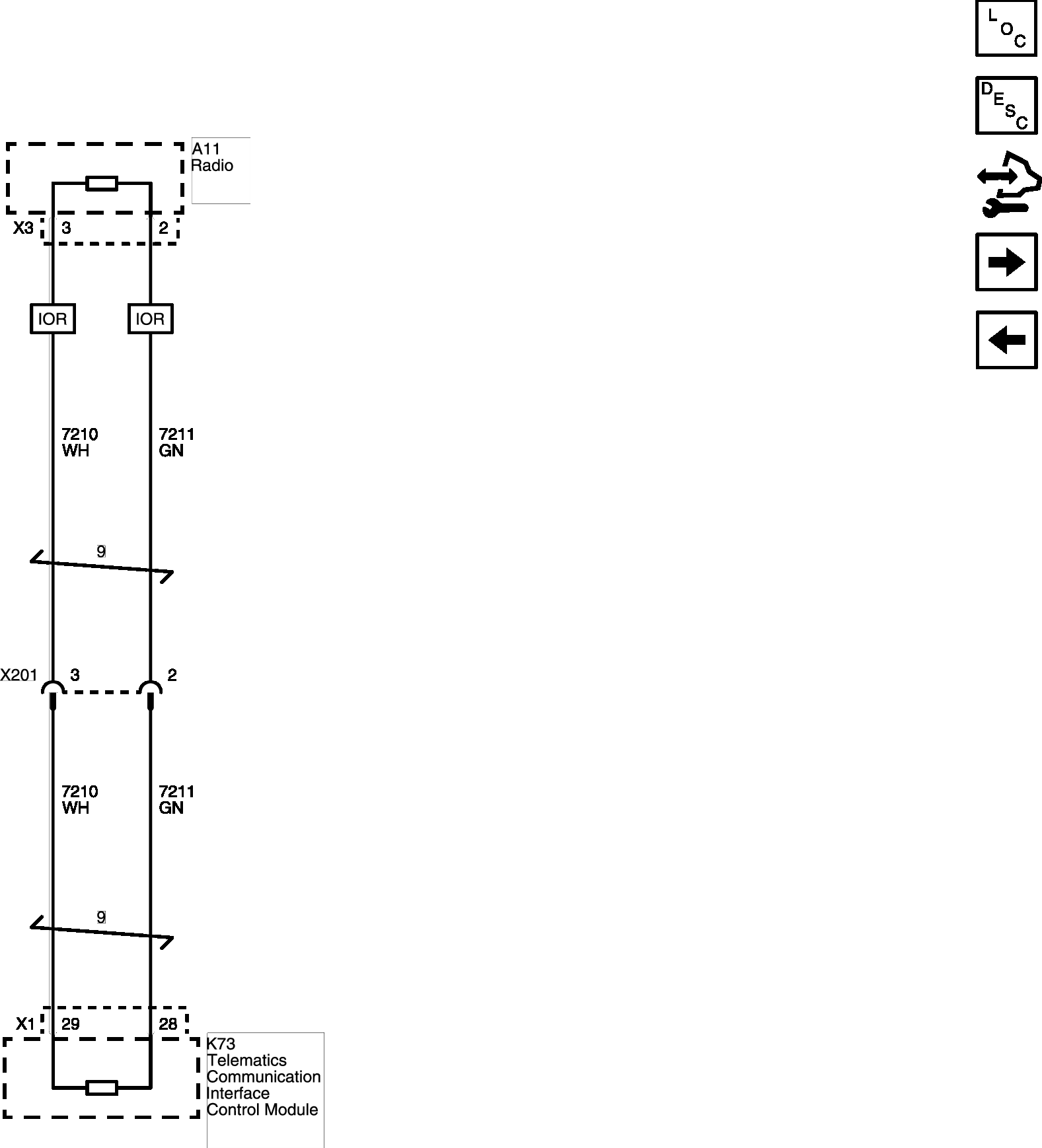

Home >> Chevrolet >> 2020 >> Spark ACTIV, Automatic CVT Trans >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Data Communication Wiring Schematics >> Ethernet Bus
