Steering Wheel Replacement

Courtesy of GENERAL MOTORS COMPANY

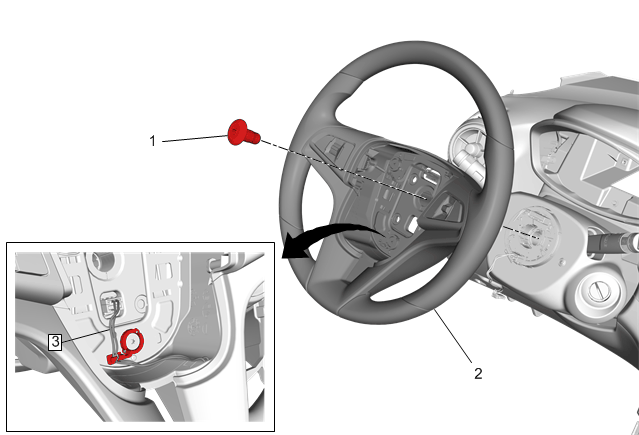

Callout	Component Name
WARNING: Refer to SIR Warning . WARNING: Refer to SIR Inflator Module Handling and Storage Warning . Preliminary Procedures Disable the SIR system. Airbag Steering Wheel Module Replacement Place match marks on the steering wheel and steering column shaft to aid in installation.
1	Steering Wheel Bolt CAUTION: Refer to Fastener Caution . Procedure Clean the threads of the bolt and mating threads with denatured alcohol or equivalent and allow to dry. Apply thread locking adhesive to the bolt. Adhesives, Fluids, Lubricants, and Sealers Tighten 45 N.m (33 lb ft)
2	Steering Wheel Procedure Disconnect the electrical connectors. Install the steering wheel bolt until 2 to 3 threads are engaged. Wiggle the steering wheel until the wheel disengages completely. Steering Wheel Bolt - Remove Steering Wheel - Remove Transfer components as necessary. If replacing the steering wheel, copy the match marks from the OLD steering wheel to the NEW steering wheel.
3	Heated Steering Wheel Wire Procedure If equipped, locate and install the heated steering wheel wire into the clip of the horn plate correctly.
