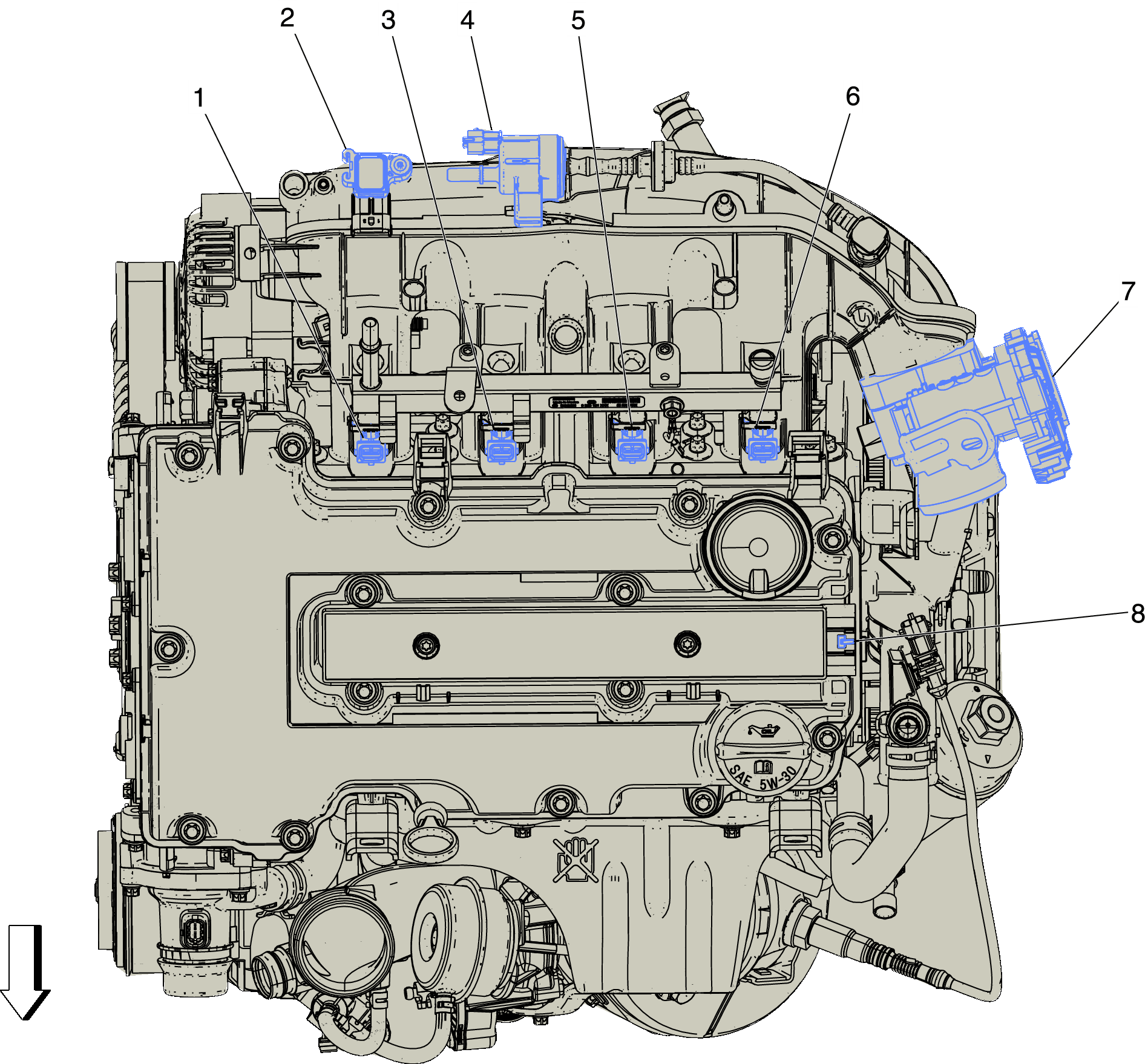

Top of Engine Components - 1.4L
Top of Engine Components - 1.4L
| Component Name | Callout |
|---|---|
| Q17A Fuel Injector 1 Q17A Fuel Injector 1 | 1 |
| B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor | 2 |
| Q17B Fuel Injector 2 Q17B Fuel Injector 2 | 3 |
| Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve | 4 |
| Q17C Fuel Injector 3 Q17C Fuel Injector 3 | 5 |
| Q17D Fuel Injector 4 Q17D Fuel Injector 4 | 6 |
| Q38 Throttle Body Q38 Throttle Body | 7 |
| K35 Ignition Coil Module K35 Ignition Coil Module | 8 |
