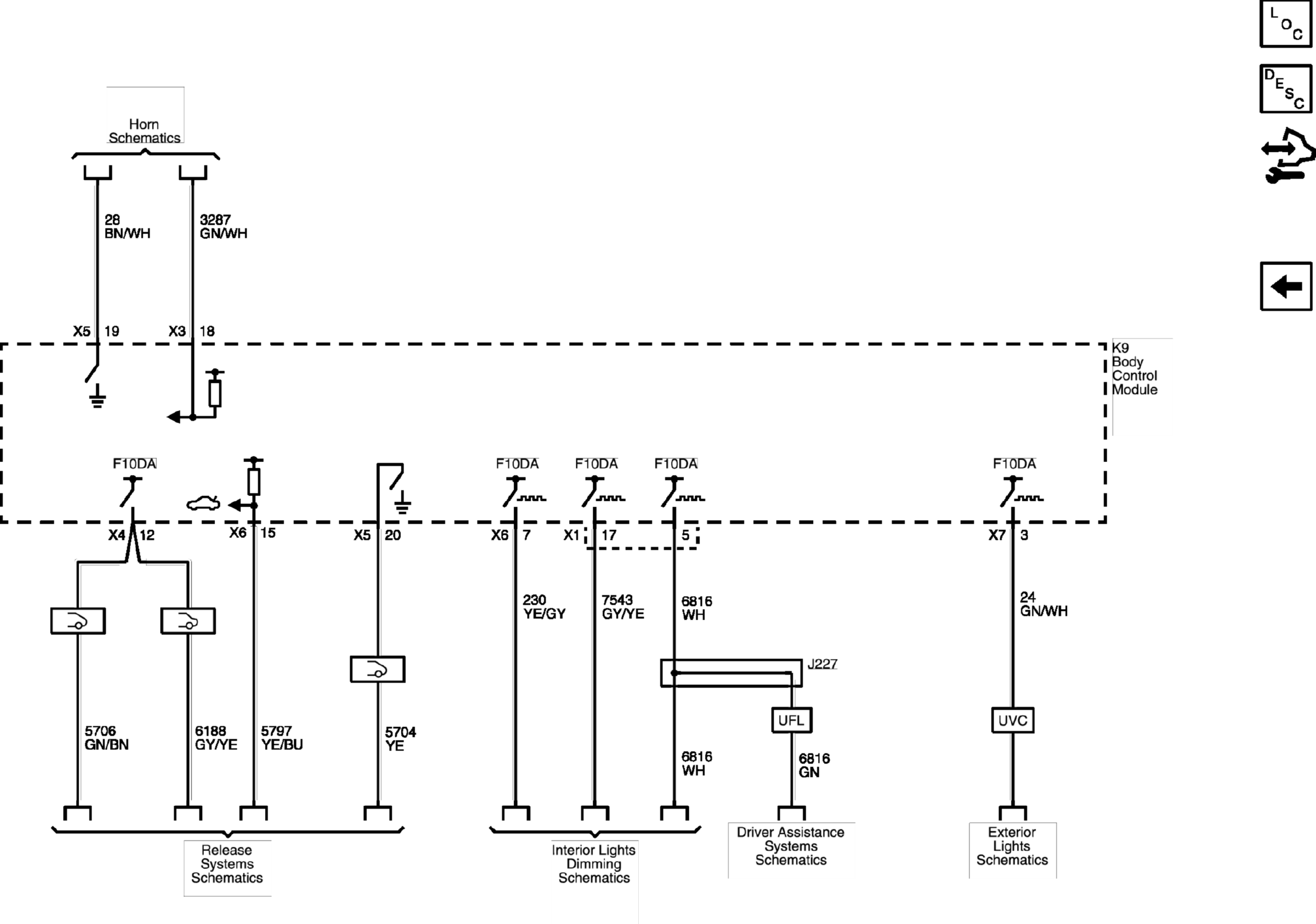

Home >> Chevrolet >> 2020 >> Sonic LS >> Repair and Diagnosis >> Engine Performance >> System >> Data Communications >> Schematic Wiring Diagrams >> Body Control System Wiring Schematics >> Subsystem References (5 of 5)
