Installation Procedure

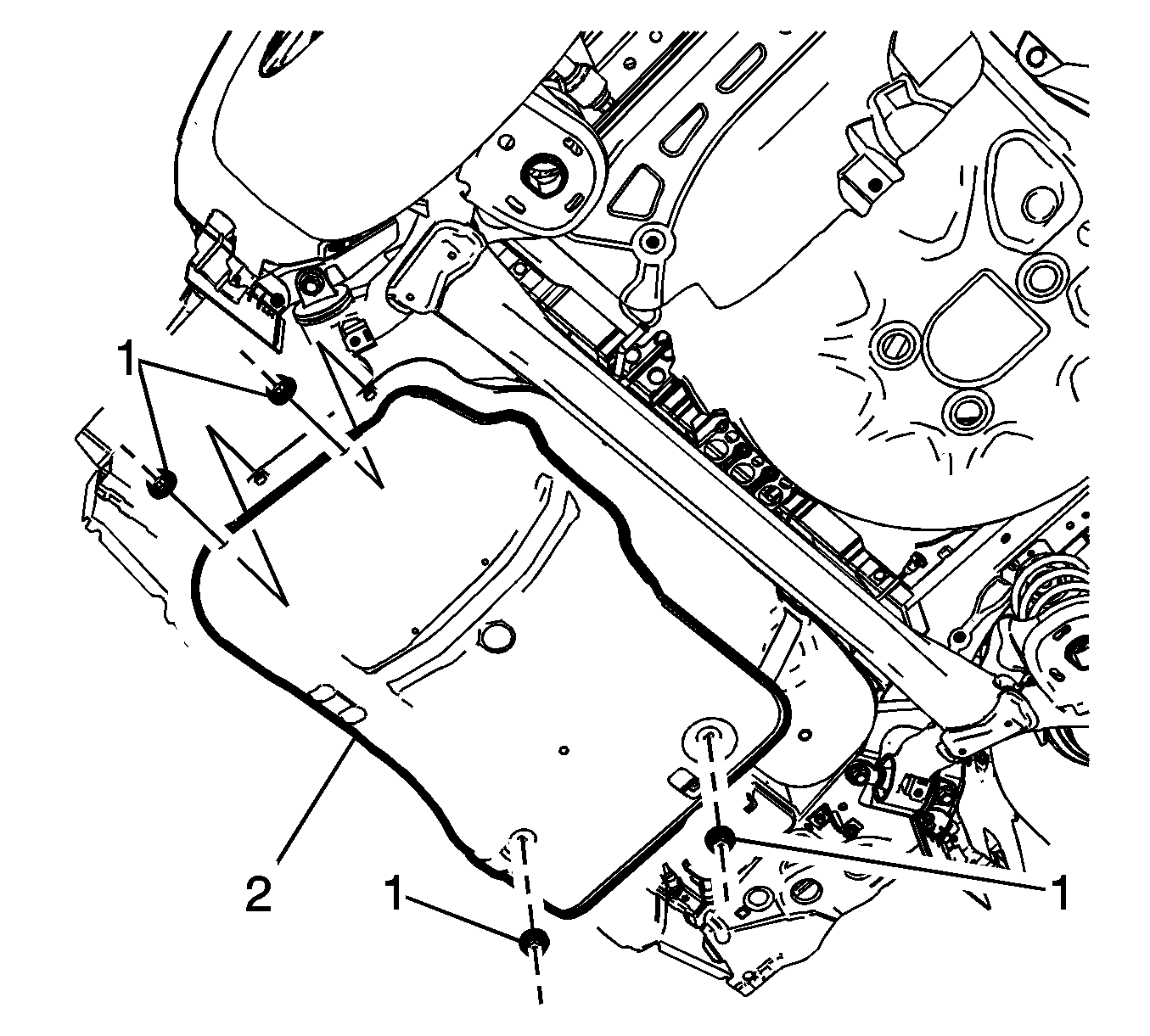

  1. GM2678482Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Install the fuel tank heat shield (2) and tighten the fasteners (1) to 10 N.m (89 lb in).

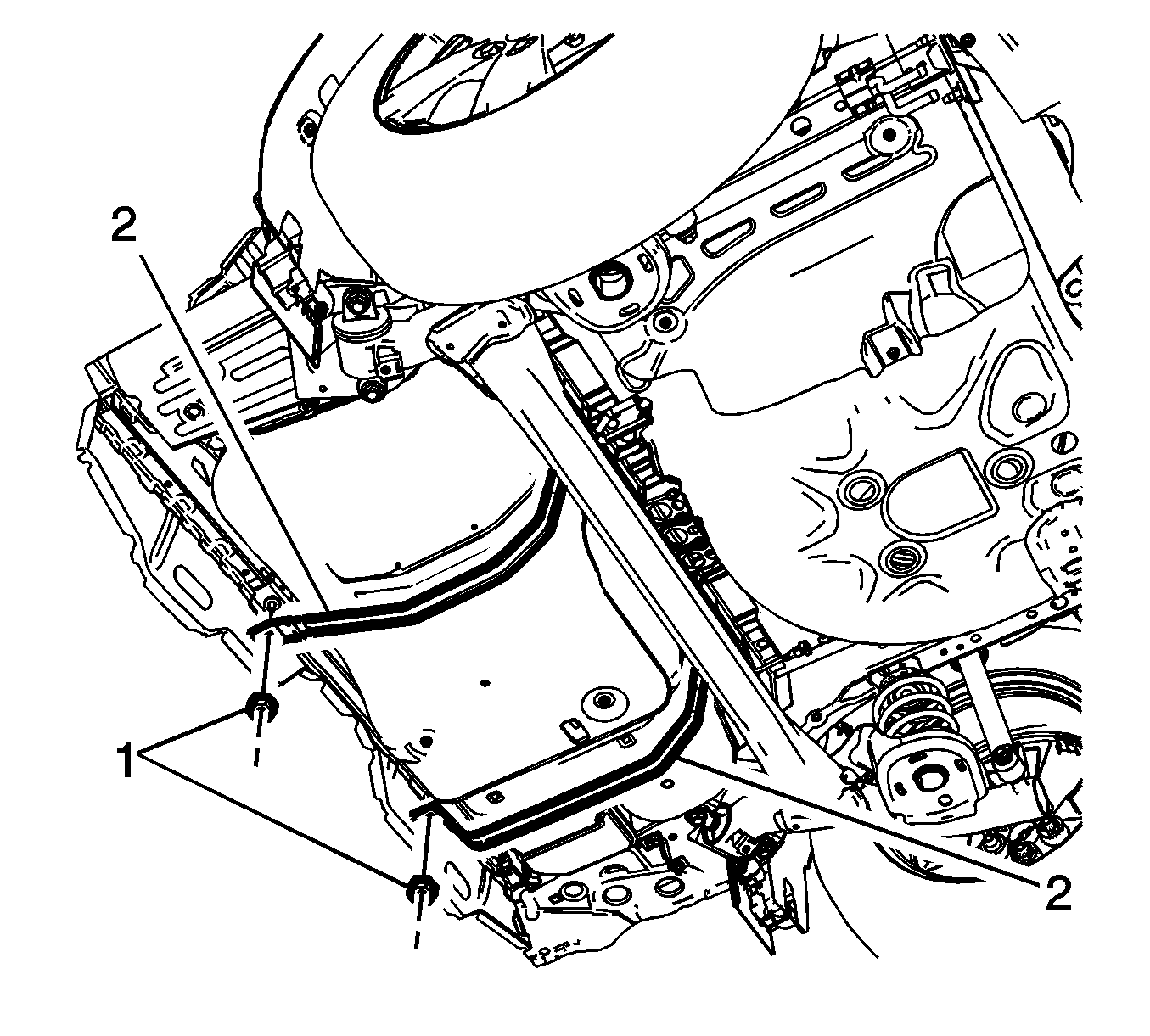

  2. GM2678481Courtesy of GENERAL MOTORS COMPANY

    Install the fuel tank straps (2) and tighten the fasteners (1) to 22 N.m (16 lb ft).
