Installation Procedure
Install a NEW gasket (2) to the exhaust front pipe.
- Install the 3-way catalytic converter (4) to the exhaust isolators (3) and tighten the fasteners (1) to 17 N.m (13 lb ft).

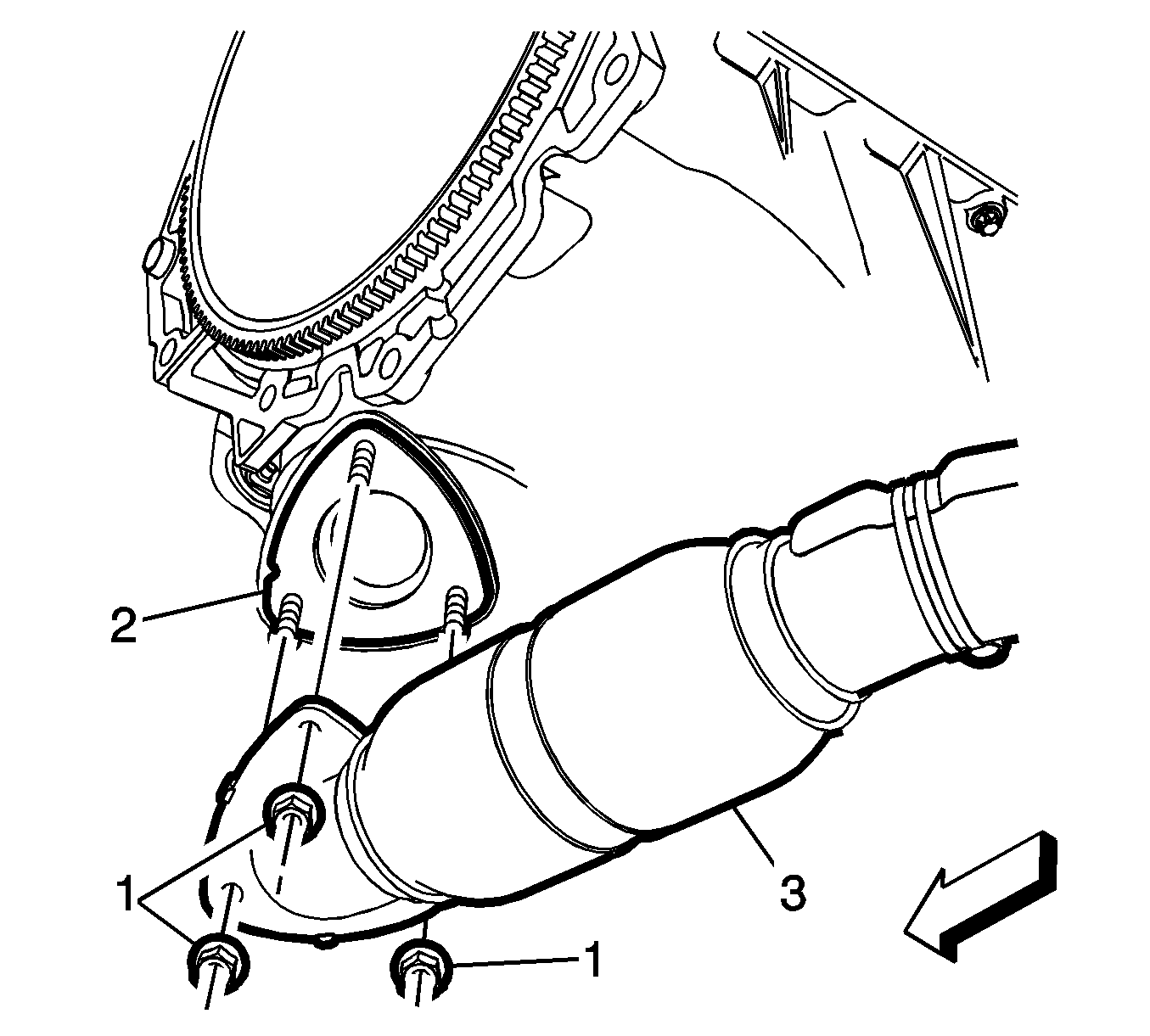

Position the exhaust front pipe (3) to the catalytic converter with a NEW gasket (2).
- Install the exhaust front pipe fasteners (1) to the catalytic converter and tighten to 20 N.m (15 lb ft).
- Connect the heated oxygen sensor-2. Refer to Heated Oxygen Sensor Replacement - Sensor 2 .
- Install the drivetrain and front suspension frame skid plate. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
- Start the engine and check for exhaust leaks.
CAUTION:
Refer to Fastener Caution .
