Installation Procedure

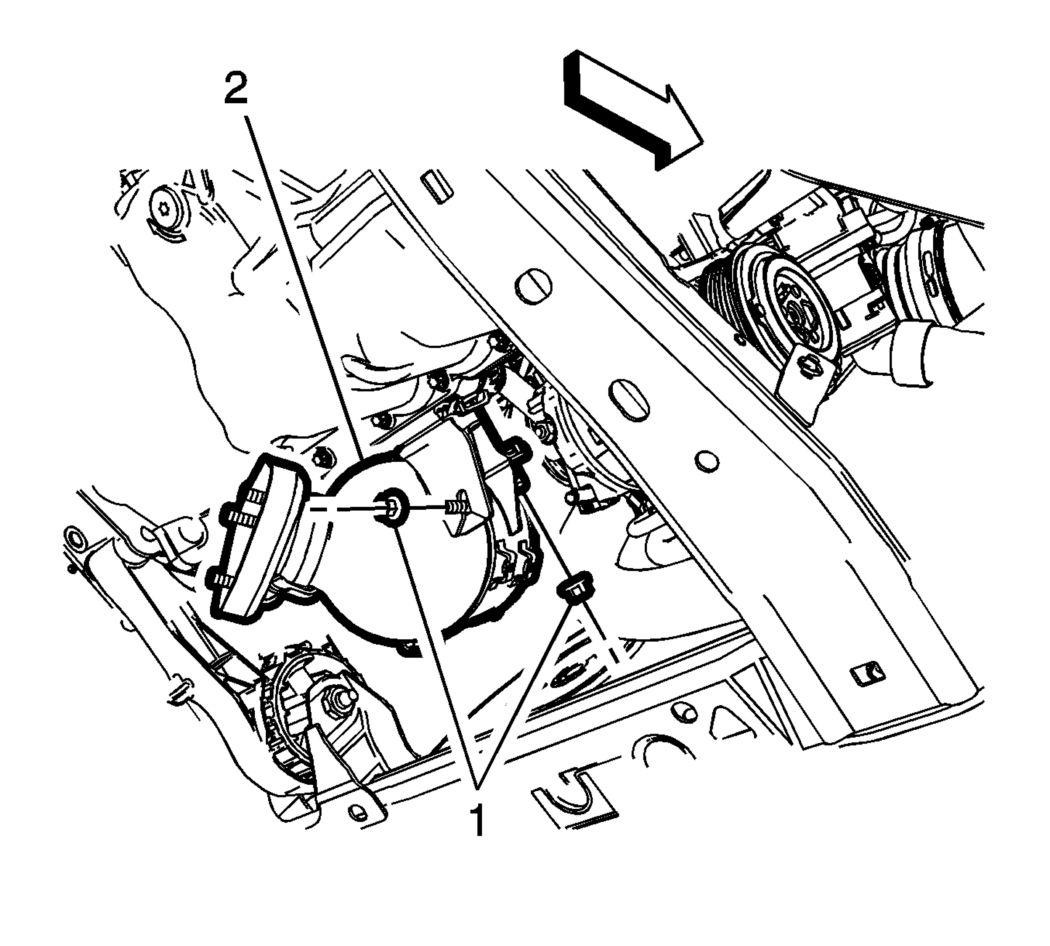

Install the catalytic converter into the catalytic converter brace (2) and loosely tighten the fasteners (1).

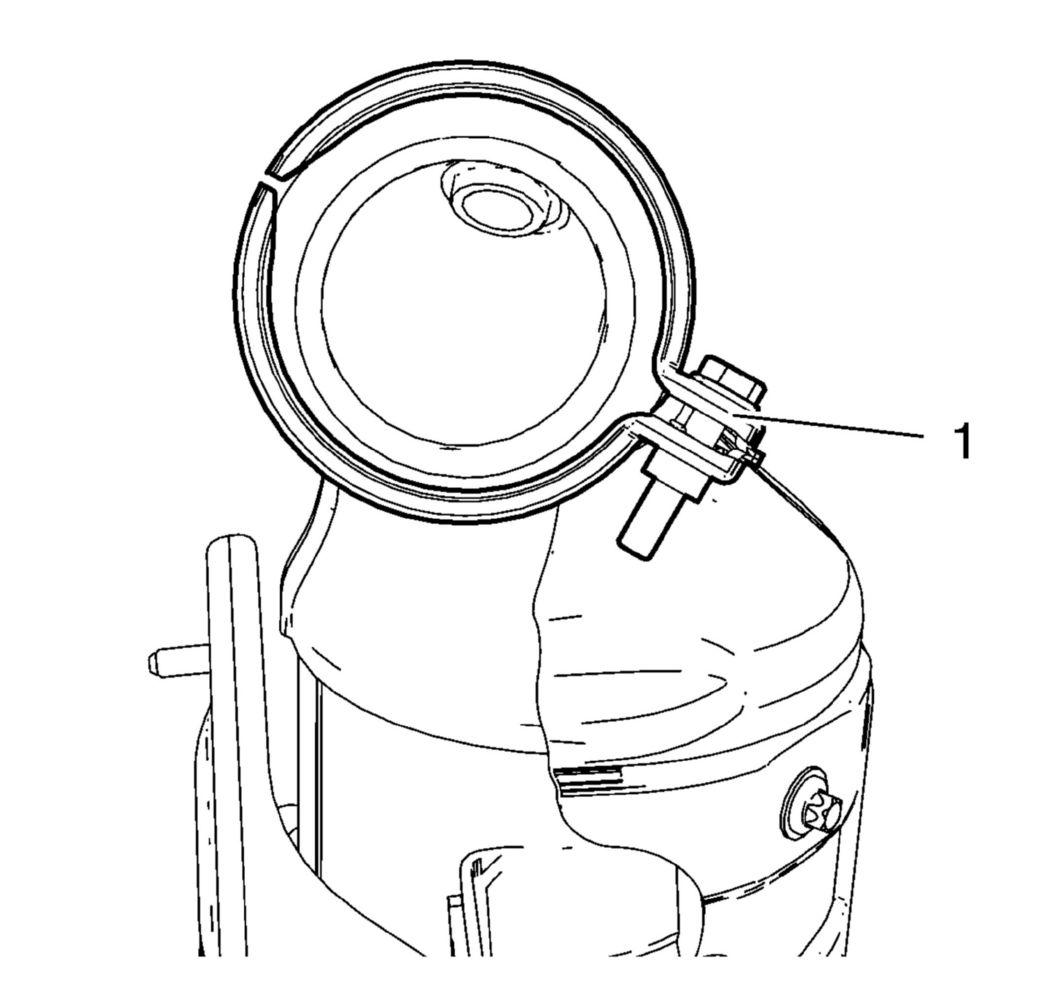

Install a NEW clamp into the position shown and loosely tighten the clamp fastener (1).
- CAUTION:
Refer to Fastener Caution .

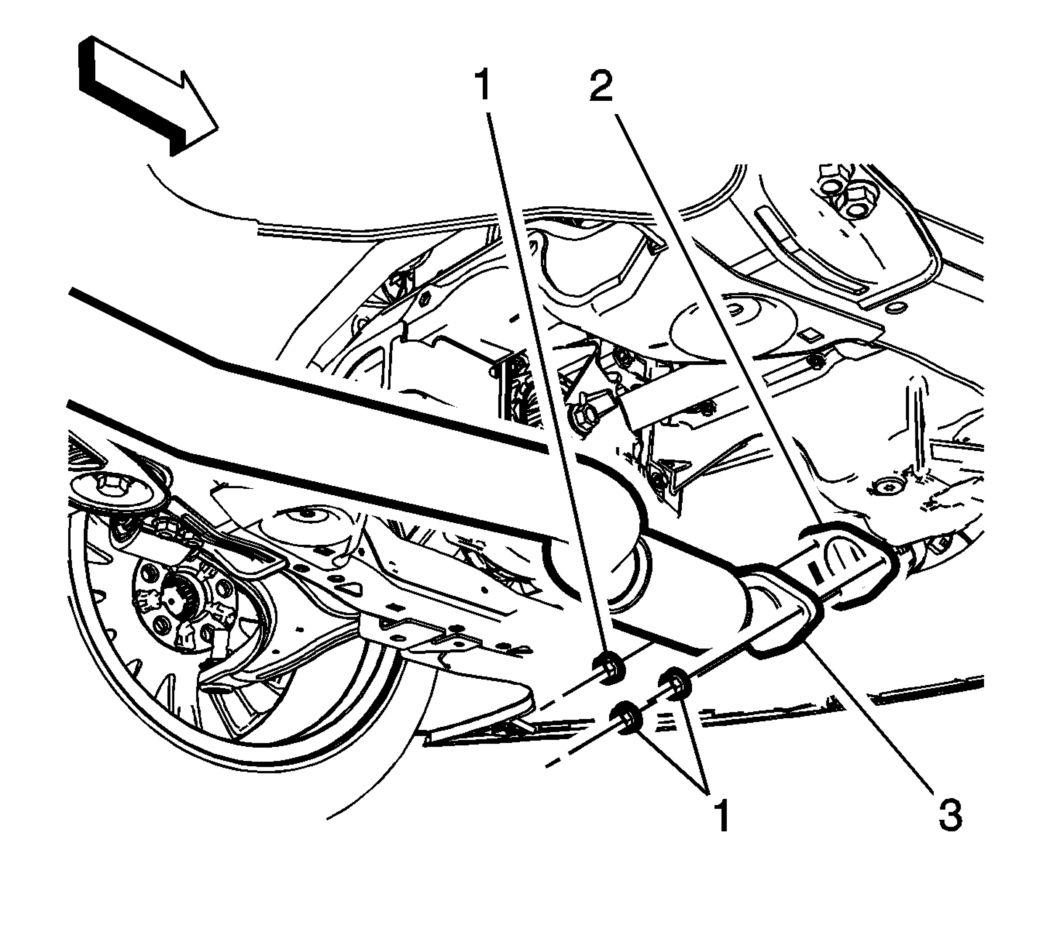

Install the exhaust front pipe (3) to the catalytic converter with a NEW gasket (2) and tighten the fasteners (1) to 22 N.m (16 lb ft).
Tighten the catalytic converter brace fasteners (1) to 22 N.m (16 lb ft).
- Install the drivetrain and front suspension frame skid plate. Refer to Drivetrain and Front Suspension Frame Skid Plate Replacement .
- Lower the vehicle.

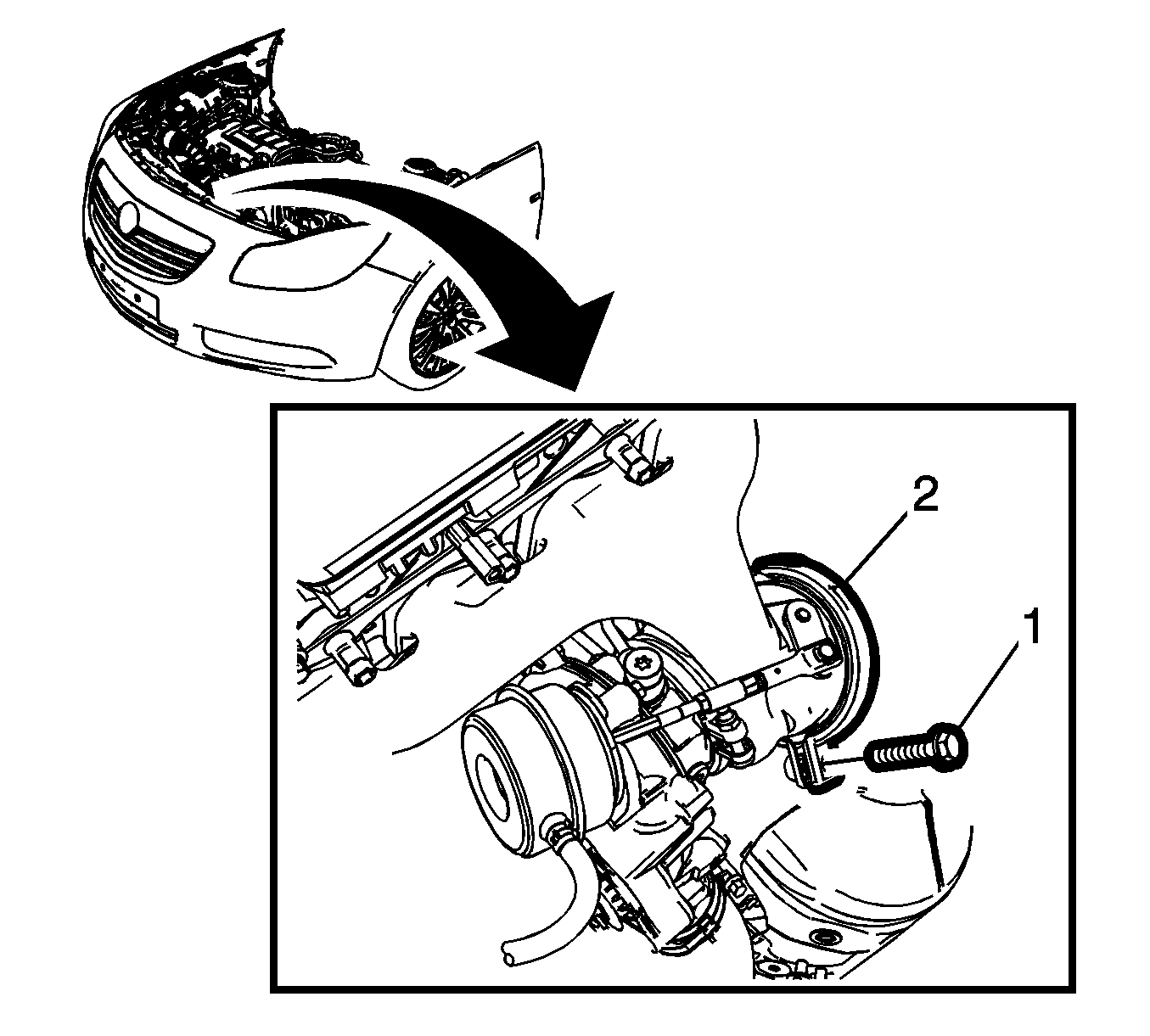

Tighten the turbocharge clamp fastener (1) to 13 N.m (115 lb in).
- Install the exhaust manifold heat shield. Refer to Exhaust Manifold Heat Shield Replacement (LUV) .
- Install the catalytic converter heated oxygen sensor - 1. Refer to Heated Oxygen Sensor Replacement - Sensor 1 .
- Start the engine and check for exhaust leaks.
