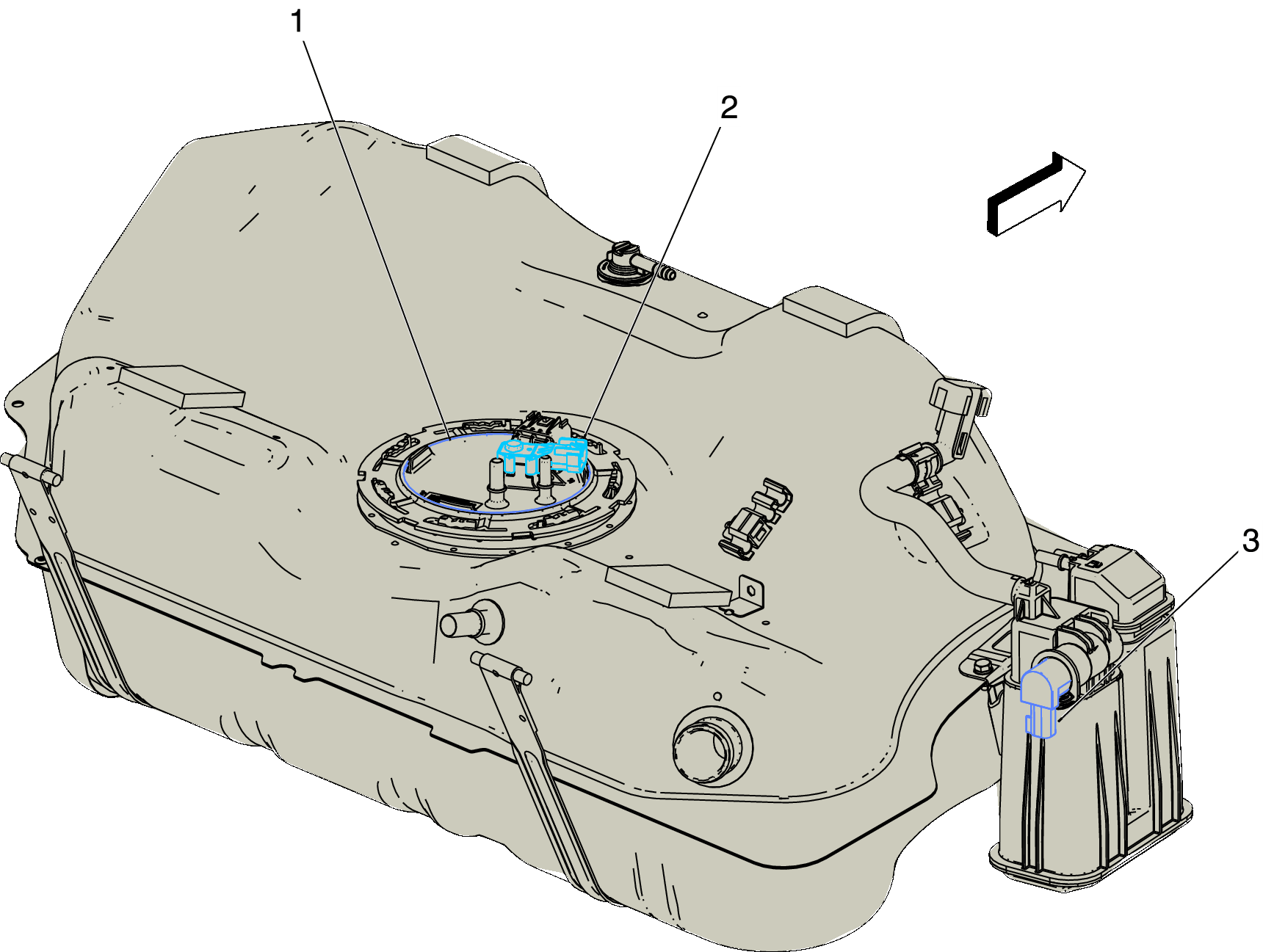

Fuel Tank Components
Fuel Tank Components
| Component Name | Callout |
|---|---|
| A7 Fuel Pump and Level Sensor Assembly A7 Fuel Pump and Level Sensor Assembly | 1 |
| B150 Fuel Tank Pressure Sensor B150 Fuel Tank Pressure Sensor | 2 |
| Q13 Evaporative Emission Vent Solenoid Valve Q13 Evaporative Emission Vent Solenoid Valve | 3 |
