Inside Rearview Mirror Replacement

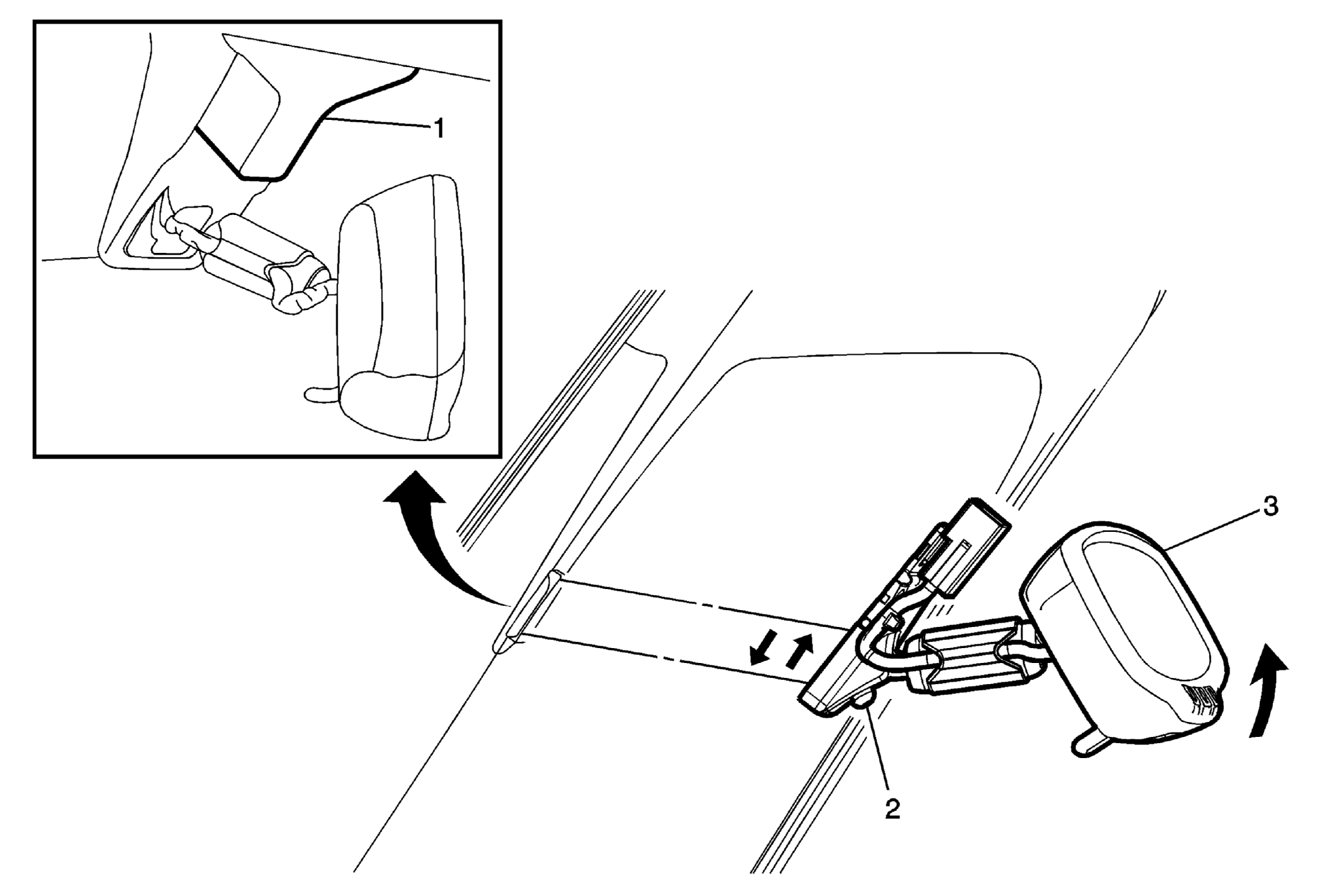

GM2425033

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Inside Rearview Mirror Cover

Procedure

Remove the wire harness cover, sliding the cover upward releasing the cover from the support.
Disconnected the connector from the mirror base.

2

Inside Rearview Mirror Screw

CAUTION:

Refer to Fastener Caution .

Procedure

Adjust the mirror to the full upward position, loosen the screw at the base in order to remove the mirror from the button.
Slide the mirror in an upward motion in order to remove.

Tighten
2 N.m (18 lb in)

3

Inside Rearview Mirror
