Low Frequency Console Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

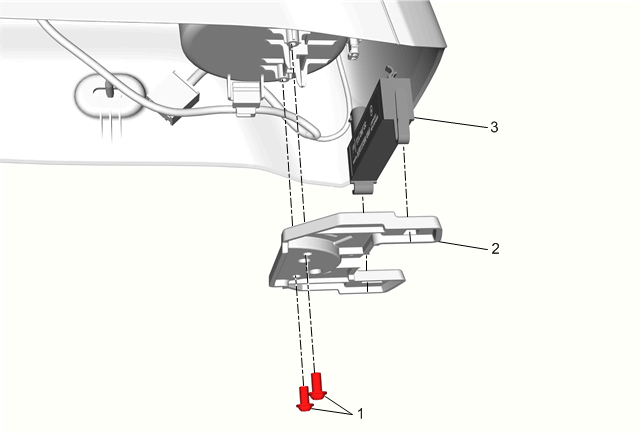

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement
1	Low Frequency Console Antenna Screw CAUTION: Fastener Caution Tighten  1.1N.m (10 lb in)
2	Low Frequency Console Antenna Bracket
3	Low Frequency Console Antenna Procedure  Disconnect the electrical connector.
