Rear Side Door Lock Cylinder Opening Cover Replacement

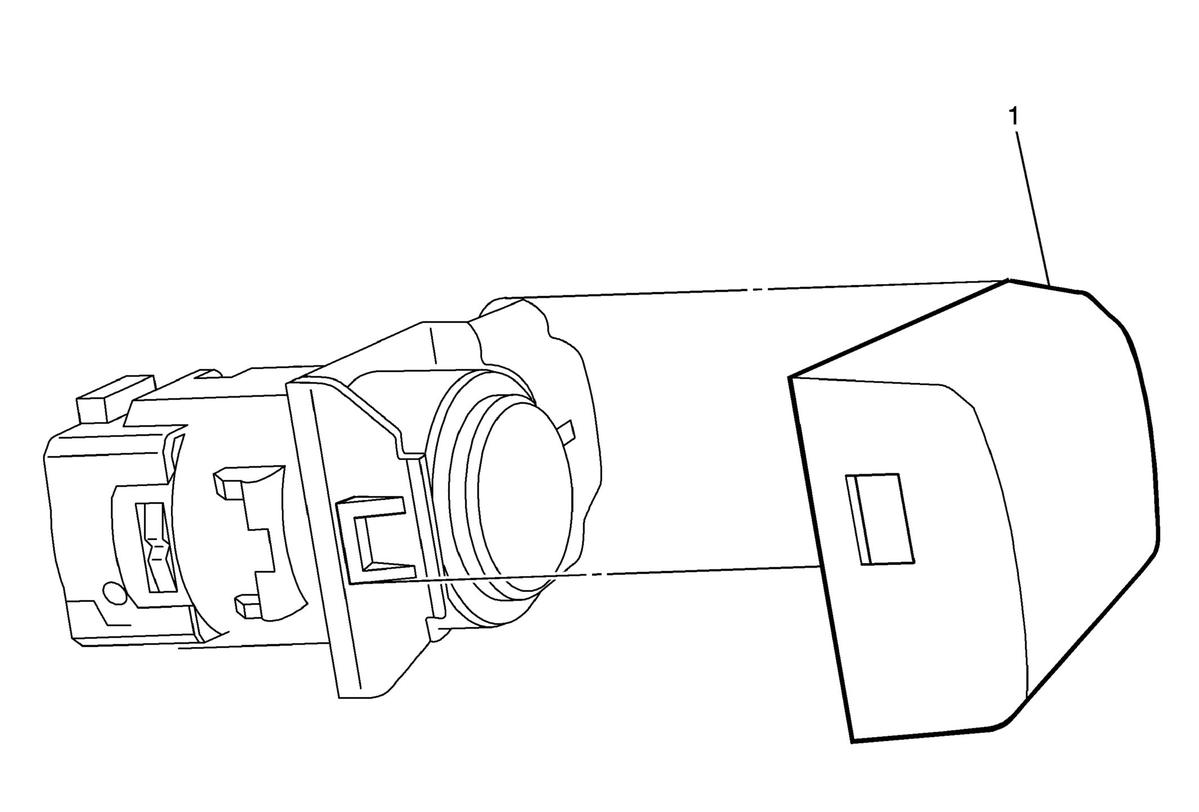

GM2476194Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Lock Cylinder Opening Cover

Procedure

  1. Remove the rear side door lock cylinder, Do Not remove the outside door handle. Refer to Rear Door Lock Cylinder Replacement .
  2. Do Not remove the lock cylinder screw completely from the housing. Unscrew the screw to a hard stop, remove the cylinder.

TIP:  Use a small flat-bladed tool to release the lock cylinder bezel retainers location on both sides.
