Rear Compartment Lid Inside Handle Replacement

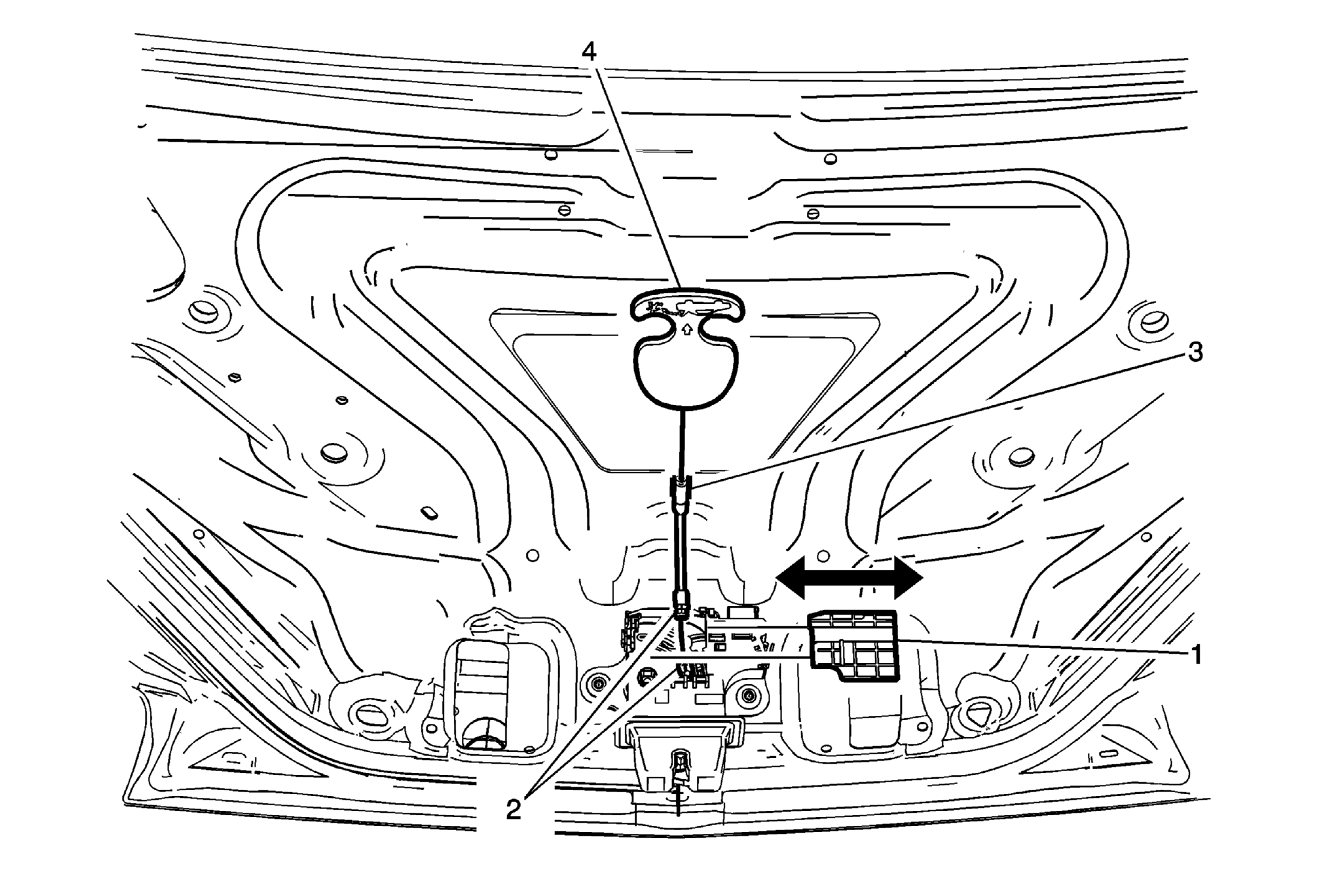

GM2577198Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the rear compartment lid inner panel trim. Refer to Rear Compartment Lid Inner Panel Trim Replacement .
1 Rear Compartment Lid Inside Latch Handle Access Cover
Procedure
Depress the retainers and slide the access cover to access the cable.
2 Rear Compartment Lid Inside Latch Handle Cable
Procedure
Disconnect the rear compartment lid inside latch handle cable from the latch.
3 Rear Compartment Lid Inside Latch Handle Cable Retainer
Procedure
Unclip the rear compartment lid inside latch handle cable clip from the rear compartment lid.
4 Rear Compartment Lid Inside Latch Handle
