Driver Seat Components
Driver Seat Components

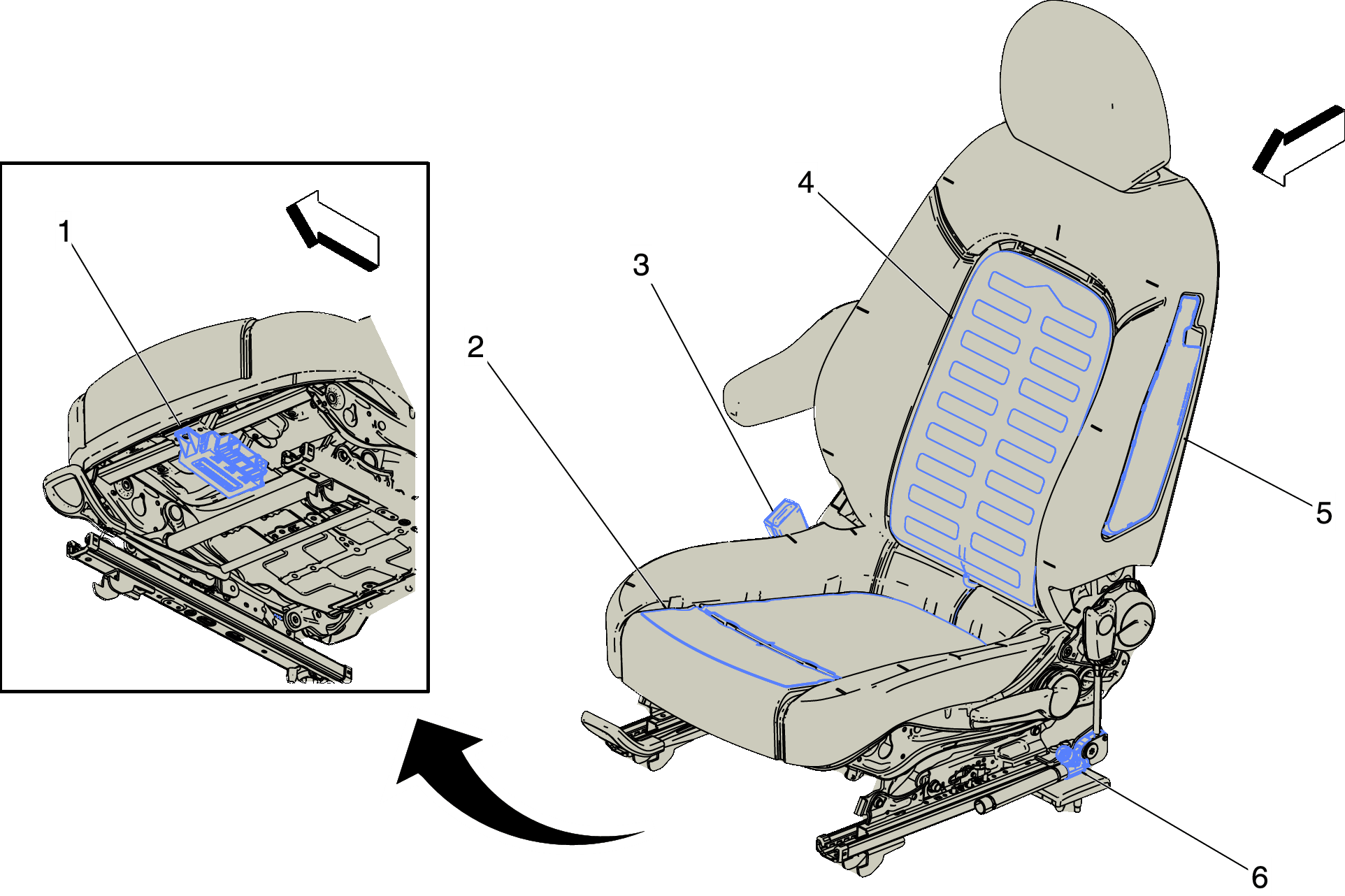

| Component Name | Callout |
|---|---|
| K29 Seat Heating Control Module (KA1) K29 Seat Heating Control Module X1 , K29 Seat Heating Control Module X2 (-ORN) , K29 Seat Heating Control Module X2 (ORN) , and K29 Seat Heating Control Module X3 | 1 |
| E14B Seat Heating Element - Driver Cushion (KA1) E14B Seat Heating Element - Driver Cushion | 2 |
| B153D Seat Belt Buckle - Driver | 3 |
| E14A Seat Heating Element - Driver Back (KA1) E14A Seat Heating Element - Driver Back | 4 |
| F106LF Seat Side Air Bag - Left Front (AMM) F106LF Seat Side Air Bag - Left Front | 5 |
| F113D Seat Belt Anchor Pretensioner - Driver F113D Seat Belt Anchor Pretensioner - Driver | 6 |
